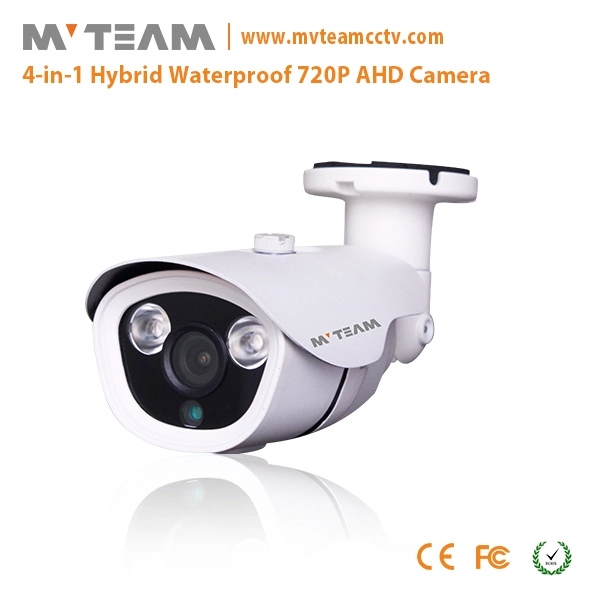

MVTEAM Hybrid 720P AHD Camera 4-in-1 TVI-CVI-AHD-CVBS HD Camera MVT-TAH20N
- Model Number: MVT-TAH20N
- Resolution: 720P/1.0MP
- Chipset: 1/4” CMOS (AR0141+HDI8901)
- Lens: 3.6mm/6mm optional,fixed
- IR leds: 24pcs×Φ5 IR leds
- IR Distance: 20m
- Color: Grey or White
*Four Modes(TVI-CVI-AHD-CVBS), free to change
*HD resolution, 1280*720, 1.0MP, 720P
Supporting IR Cut, Day Night surveillance
Equipment with HDI8901 ISP Processor
Low Price and mutiply function
|
Model |
MVT-TAH20N |
|||
|
Main Chipset |
HDI8901 ISP |
|||
|
Sensor |
1/4' CMOS AR0141 1.0MP/720P Low Illumination |
|||
|
SIGNAL |
PAL / NTSC |
|||
|
Lens & IR Distance |
Fixed 3.0mm/6.0mm lens, 36pcs IR leds, IR distance 30m |
|||
|
Video Output |
1 Channel HD-TV, HD-CVI, HD-AHD, CVBS (Switch By OSD Menu) |
|||
|
Effective Pixels |
TVI: 1280(H)*720(V) |
CVI:1280(H)*720(V) |
AHD: 1280(H)*1024(V) |
CVBS:1000TVL |
|
Min. Illumination |
0.01Lux F1.2 |
|||
|
Shutter |
4/25s~1/45,000s |
|||
|
Synchronization |
Internal |
|||
|
BLC |
optional |
|||
|
OSD |
Supported |
|||
|
AWB |
Automatic / manual / day / night |
|||
|
Day/Night |
Auto(ICR) / Color / B/W |
|||
|
Transmission Distance |
Over 500m via 75-3 coaxial cable |
|||
|
Power Supply |
DC 12V±10% |
|||
|
Working Environment |
30°C~+60°C/Less than 95%RH(no condensation) |
|||
|
Power Consumption |
4W±10% |
|||

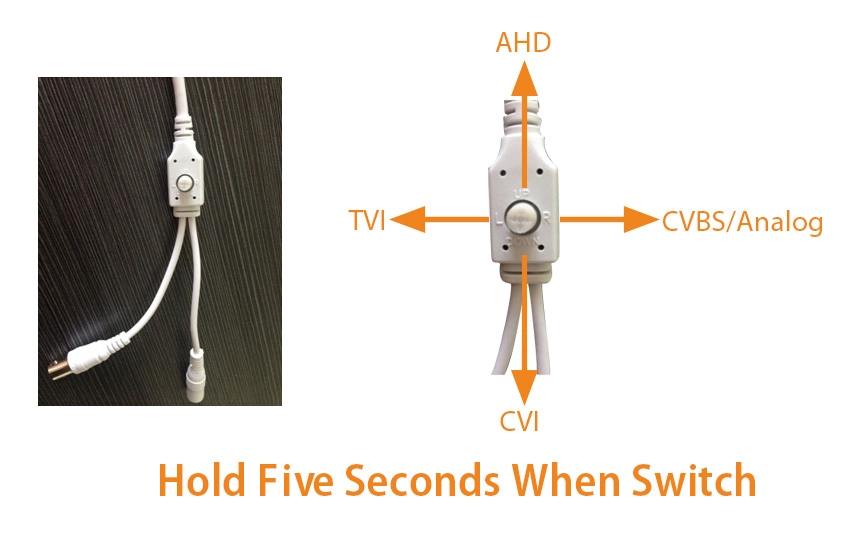

HD/TVI/CVI/CVBS, how to Switch?
1.By the OSD Menu, UP is AHD, Down is CVI,Left is TVI,Right is CVBS
2.Hold the Direction Button for FIVE Seconds to Switch
Warning:Make sure power off when Switch the second time
For more about AHD Products welcome to Visit FAQ
