4CH Wifi IP Camera NVR Kit with Built-in 10 inch HD LCD Screen(MVT-K04T)

4CH Wifi IP Camera NVR Kit with Built-in 10 inch HD LCD Screen(MVT-K04T)

  • 1pc 4CH Wireless NVR with build in 10" inch HD LCD Screen
  • NVR built-in WIFI rooting module
  • 4pcs 1.0M/720P Outdoor wireless IP Cameras
  • 3.6mm Lens,30m IR distance
  • Plug and Play,no need connect cables
  • with CE,ROHS,FCC Certificate

4CH Wifi IP Camera NVR Kit with Built-in 10 inch HD LCD Screen(MVT-K04T)


Installation diagram

MVTEAM Wireless nvr kit installation


What's the wireless NVR Kit included?


1pc 4ch wireless HD NVR with build-in 10" inch LCD Screen and  WIFI module
4pcs Outdoor HD Wireless IP Camera
4pcs 12V(DC)/2A power adaptors
1pc detailed quick installation guide manual
1pc CD come with CMS softwares and instructions


Specs of each item


1-4CH Wireless NVRMVEAM wireless nvr feature

*Built-in 10" inch HD LCD Screen (resolution:1280*1024),which support 330 degree rotate,
*built-in high functional and stability wireless WI-FI rooting module,
  support 802.11b/g/n protocol,150Mbps,
*HDMI output.
*Video input:4*720P;4*960P,Playback:4*960H,4*720P;
*3pcs USB interfaces, Support HDD up to 4TB,cloud technology, P2P,mouse x1

MVTEAM wireless nvr specs

Wireless NVR Specs
Operating System Embedded Linux OS
AV(audio/video)input Network Video 4CH
Network video input broadbank  20Mbps
AV (audio/video) output HDMI input 1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p
AV CODEC Specification Video Resolution D1/720P
synch-playback 4CH
Video Control Video/Capture mode Maual,Time,Motion
Playback mode Real time,Routine,Event
Backup USB backup
Hard Disk Type 1*SATA interface
Max Capacity 4 TB at most for each
External Interface Network Interface 1 adaptable RJ45 10M/100M,
2 WIFI interface
USB Interface 3 USB 2.0
Network Control Protocol UPnP (play&plug),SMTP (email survice),PPPoE (dial-up),
DHCP (Automatically obtain an IP address), etc…
Others Power  DC12V3A
Power Consumption (W)  ≤5W(Without HDD)
Operate Temperature (°C)  -10~+55
Working Humidity (%) RH 10%~90%
Size 257mm(W)×210mm(V)×45mm(H)
Weight(excluding HDD) ≤1Kg



MVTEAM Wireless NVR

MVTEAM Wireless NVR Menu:

MVTEAM Wireless NVR Menu


MVTEAM wireless nvr remote view on computer and smartphone:

MVTEAM wireless nvr remote view

MVTEAM Wireless NVR Remote view on smart phone



2-720P Outdoor Wireless IP Camera

MVEAM wireless nvr feature

*1.0M/720P wireless IPC

*with IR CUT

*3.6mm Lens

*3pcs 3rd generation LED Array,30m IR Distance

*Waterproof IP66

MVTEAM wireless nvr specs

mvteam wireless ipc spec


mvteam wireless ipc


3-12V(DC)/2A Power adaptor for wireless IP Camera

mvteam wireless ipc power adptor


4-CD and quick installation guide manual

mvteam wireless nvr kit cd and manual

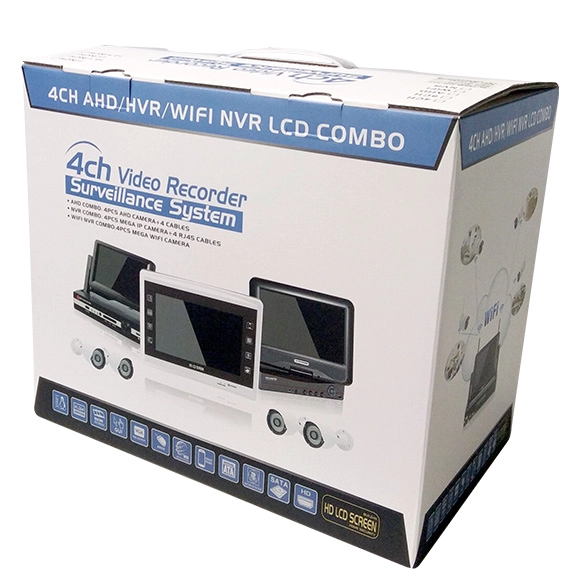

5-Package



Related wireless NVR kit

mvteam related wireless nvr kit
