720P 1024P 1080P Outdoor Waterproof HD AHD Camera

720P 1024P 1080P Outdoor Waterproof HD AHD Camera

  • Model Number: MVT-AH11
  • Type: Digital Camera
  • Style: Waterproof Outdoor
  • Camera Sensor: CMOS
  • Definiton: 720P / 1024P optional
  • Color: Gray and White color optional
  • Lens: 6mm, fixed
  • IR leds: 36pcs
  • IR Distance: 30m
  • Bracket: 3-Axis bracket with cable builtin
Main Features:

• 1.0M/1.3M/2.0M pixel full real time optional,Highest resolution 1080P
•follow HD and CVBS video standard
•with 6-22mm(M12) vari-focal Lens
•Water Resistant Rate:IP66

• support transmission distance above 500M under general 75- 3 coaxial cable without loss

• High-speed, long-distance, real-time transmission
• support OSD menu
• with ICR switching , to achieve Day and Night monitoring

•Used genuinely imported 3rd generation IR LEDs and megapixel high definition lens, these cameras have been featured as great performance in color restoration,image definition and night viewing.



 Model MVT-AH11T
 Sensor   1/3” CMOS(AR0130+NVP2431H  ) 1.3M/1024P,with IR CUT
SIGNAL  PAL / NTCS
 Video Output  HD-AHD/CVBS
Effective Pixels  1280(H)*1024(V)
 Min. Illumination 0.05Lux @Color,0.01Lux B/W
 Shutter 4/25s~1/45,000s
 Video Frequency 1280×1024@50 fps;1280×1024@60 fps
 Synchronization  Internal
 Video Output 1-channel BNC HDAHD/CVBS high definition video output
BLC optional
 OSD optional
 AWB Automatic / manual / day / night
 Day/Night Auto(ICR) / Color / B/W
 Transmission Distance  Over 500m via 75-3 coaxial cable
 Power Supply  DC 12V±10%
 Working Environment  30°C~+60°C/Less than 95%RH(no condensation)
 Power Consumption 4W MAX

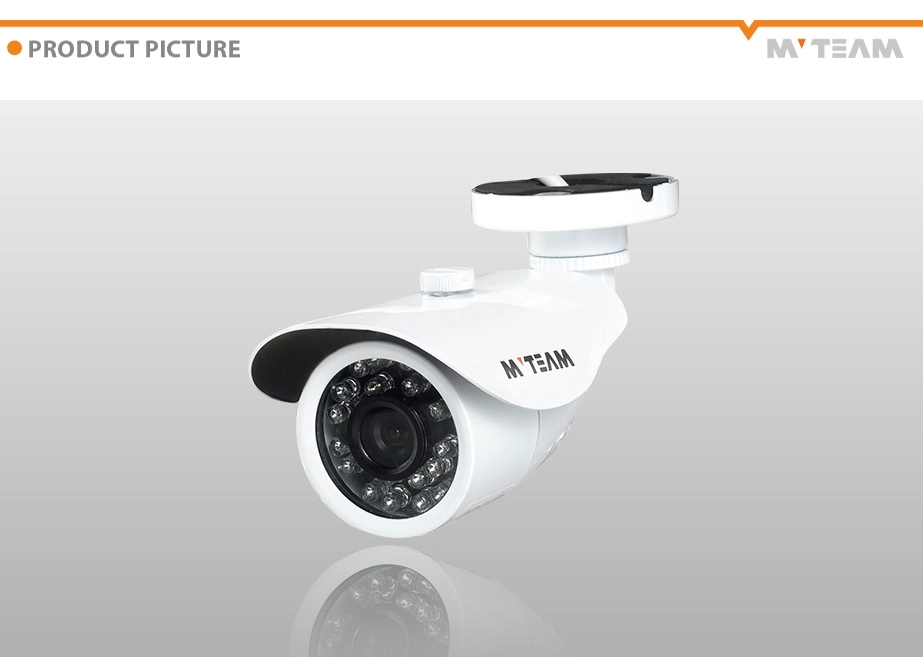

1080P ahd camera
