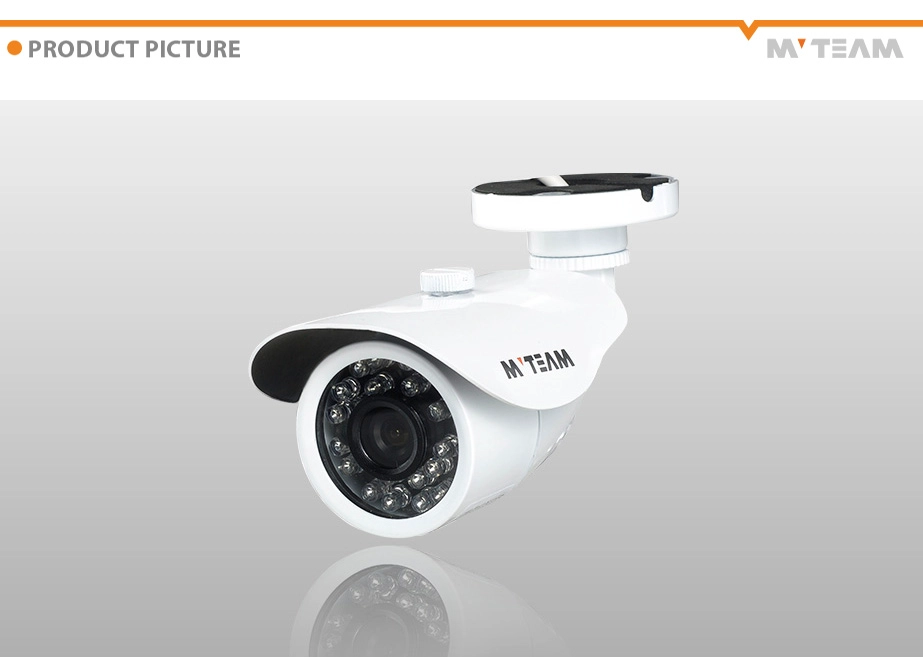

720P 1024P Outdoor Waterproof HD AHD Camera

720P 1024P Outdoor Waterproof HD AHD Camera

  • Model Number: MVT-AH11
  • Type: HD Analog Camera
  • Style: Waterproof Outdoor
  • Camera Sensor: CMOS
  • Definition: 720P / 1024P/1080P optional
  • Lens: 6mm or 3.6mm
  • IR leds: 36pcs
  • IR Distance: 30m

Main Features:

*1MP/1.3MP/2MP AHD Cameras avilable
* AHD-CVI-TVI-CVBS 4-in-1 Camera available
* OSD Menu optional( D-WDR ,BLC function etc)
* Can be used as CVBS Camera with free switch Button
* Transmit Over Coaxible Cable 500m
* Support Balun transferring

Application Places:
Apply to replace the old analog system and new projects in the financial,  supermarket,  telecommunications, government, schools, airports, factories, hotels,  museums and other places of requirement of high-definition.



Model No. Key Specifications
MVT-AH11A Gray and White color optional,with 6mm(M12 ) or 3.6mm  Lens,36pcs×d5 IR leds,30m IR Distance,3-Axle bracket with cable built-in 1/4” CMOS(OV9712+NVP2431H) 1.0M/720P,with IR CUT
MVT-TAH11N 1/4” CMOS(AR0141+HDI8901) 1.0M/720P,Low Illumination,with IR CUT, TVI-CVI-AHD-CVBS 4-in-1 Camera
MVT-AH11N 1/4” CMOS(AR0141+NVP2431H ) 1.0M/720P,Low Illumination,with IR CUT
MVT-AH11T 1/3” CMOS(AR0130+NVP2431H  ) 1.3M/1024P,with IR CUT
MVT-AH11B 1/3” CMOS(SONY225+NVP2431H ) 1.3M/1024P,with IR CUT
MVT-AH11R 1/3” CMOS(AR0237+NVP2441H ) 2MP/1080P,with IR CUT
MVT-AH11P 1/3” CMOS(SONY322+NVP2441H ) 2MP/1080P,with IR CUT


 Model MVT-AH11P
 Sensor 1/3” CMOS(SONY322+NVP2441H )
Resolution 2MP
Effective Pixels  1920(H)*1080(V)
Lens 3MP HD 3.6mm(M12)
Leds 36pcs leds
IR Distance 30m
 SIGNAL PAL
 Video Output  HD-AHD
 Min. Illumination 0.01Lux F1.2
 Shutter 4/25s~1/45,000s
 Synchronization  Internal
 Video Output 1-channel BNC HDAHD high definition video output
 OSD Optional BLC BLC/HLC/OFF
D-WDR OFF/ON(Level 0-8)/Auto
3D-NR OFF/LOW/MID/HIGH
 Day/Night Auto,Color,B/W,Ext
Defog OFF/AUTO
 Power Supply  DC 12V±10%
 Working Environment  -20°C~+50°C/Less than 95%RH(no condensation)
 Power Consumption 4W MAX
IP Rank IP66, outdoor use,Metal Case
