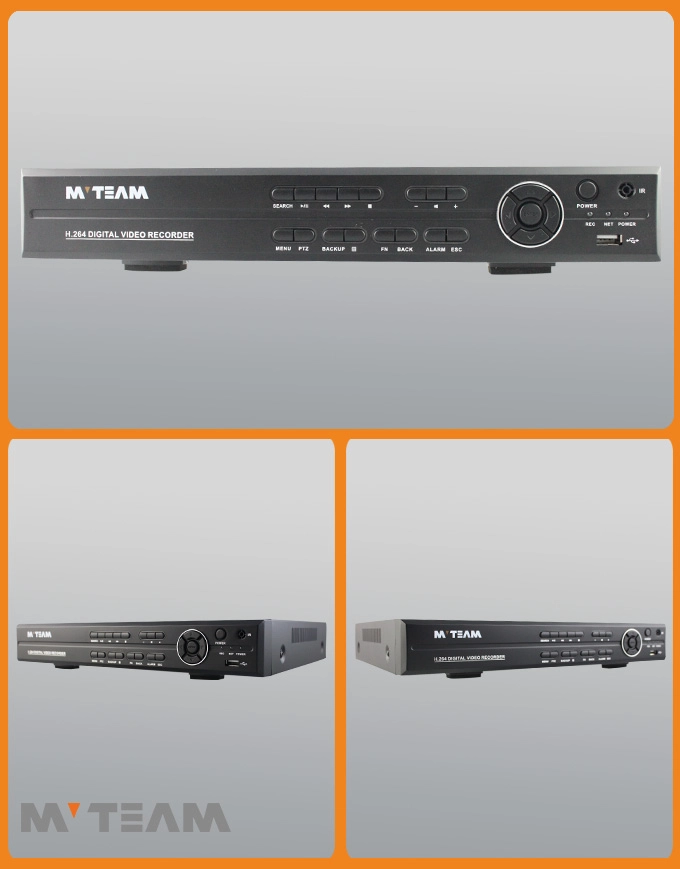

AHD TVI CVI CVBS NVR Hybrid China dvr factory 4CH 1080N MVTEAM brands HD DVR(6404H80H)AHD TVI CVI CVBS NVR Hybrid China dvr factory 4CH 1080N MVTEAM brands HD DVR(6404H80H)

AHD TVI CVI CVBS NVR Hybrid China dvr factory 4CH 1080N MVTEAM brands HD DVR(6404H80H)

  • Model:6404H80H
  • Chipset:HI3520D V200
  • Channel:4CH; Compression:H.264
  • Resolution:1080N 960*1080
  • Support:Audio,Alarm, PTZ control,P2P Remote view
  • SATA: 2pcs; USB Port: high speed 2 pcs
  • languages:28 kinds
  • Hybrid:ahd,tvi,cvi,cvbs,ip
AHD TVI CVI CVBS NVR Hybrid China dvr factory 4CH 1080N MVTEAM brands HD DVR(6404H80H)

New Product 16CH 1080P Hybrid AHD Surveillance Dvr(6516H80P)
H.264 4CH 1080P 5 in 1 Hybrid MVTEAM brand surveillance dvr(6404H80P)
H.264 4CH 1080P 5 in 1 Hybrid MVTEAM brand surveillance dvr(6404H80P)


1.AHD\TVI\CVI:4CH 1080N@20fps recording, 4CH 1080N playback;
2.HVR:2CH 1080N@20fps Analog + 2CH 1080P@25fps IP recording,
    1CH 1080P@25fps playback;
3.NVR:4CH 1080P@25fps IP recording,1CH 1080P@25fps playback;
4-Audio: 4ch input
5-Alarm:4ch input,1ch output
6-Support digital zoom,P2P remote view

Model 6404H80H
Compression H.264 Standard compression
Operation Embedded  Linux
Image  coding-control Image edit adjustable,both changable and fix stream optional
Dual stream Can be set up in each channel
Monitor image quality 1080N 960*1080
Image dynamic detection Multiple detection areas in each channel
Video framerate AHD\TVI\CVI:4CH 1080N@20fps recording;NVR:4CH 1080P@25fps IP recording
Image playback quality AHD, TVI,CVI:4CH 1080N playback
NVR: 1CH 1080P@25fps playback
Video mode Support manual, automatic, dynamic monitoring, alarm trigger video mode
Backup mode U disk, USB portable disk, USB burn, Network storage and backup
Operate mode Mouse, remote controller, front panel
login locally without password
Save recording local hard disk and network
External interface Video input  1080N 20FPS AHD,TVI,CVI;
1080P 25FPS  NVR
Audio input 4*RCA
Network interface 10M/100M base-T Ethernet (RJ-45)
USB connect port 2*USB 2.0
RS485 RS485*1
Alarm input 4CH
Alarm output 1CH
Internal HDD 2 SATA HDD port
Maximum capacity Maximum 4TB each SATA
Cell phone monitoring Support Window Mobile, iPhone,iPad, Android
Power 12V/3A
DVR size  340(L)*265(W)*70(H)mm
Weight <3.5kg(without HDD)

4CH 1080N Hybrid HD security dvr recorders for security cameras(6404H80H)

H.264 4CH 1080P 5 in 1 Hybrid MVTEAM brand surveillance dvr(6404H80P)

H.264 4CH 1080P 5 in 1 Hybrid MVTEAM brand surveillance dvr(6404H80P)
1-Does the dvr come with hard disk?
The DVRs don't come with hard disk,but we also
2- How to increase recording time?
a.Install more hard disks
b.set the dvr to motion detection record
c.reduce the recording resolution and frame rate
3-Does the DVR support P2P?
Yes,the dvr come with cloud id,support P2P remote view on mobile phone and computer.
4-what's the mobile phone view app of the dvr?
The mobile phone app is "Topsview"
5-What's the resolution of your dvrs?
720P, 1080N (1080H), 1080P optional

H.264 4CH 1080P 5 in 1 Hybrid MVTEAM brand surveillance dvr(6404H80P)

H.264 4CH 1080P 5 in 1 Hybrid MVTEAM brand surveillance dvr(6404H80P)

H.264 4CH 1080P 5 in 1 Hybrid MVTEAM brand surveillance dvr(6404H80P)
