China hot sale network 4CH real time H.264 AHD DVR

China hot sale network 4CH real time H.264 AHD DVR

  • Model:MVT-AH6404H
  • Channel:4CH
  • Compression:H.264
  • HDMI Output:1920*1080
  • Resolution:720P/960H
  • Hard disk HDD:2pcs
  • USB Port: high speed 2 pcs

1. High Definition Video quality 1.0MP/1.3MP

2. HD video transmission without video quality loss & delay

3. The same connection structure as original analog system without cable changing

4. AHD Camera are compatible with analog 960H/D1 DVR

5. More acceptable,with similar price as analog


Model

MVT-AH6404H

Compression

H.264 Standard compression

Operation

Embedded  Linux

Image  coding-control

Image edit adjustable,both changable and fix stream optional

Dual stream

Can be set up in each channel

Monitor image quality

16*720P(AHD), 16*960H(Analog DVR)

Image dynamic detection

Multiple detection areas in each channel

Video framerate

720P 25FPS/CH AHD,960H 25FPS/CH Analog DVR

Image playback quality

AHD 720P 100FPS ,Analog DVR 16*960H 100FPS

 Video mode

Support manual, automatic, dynamic monitoring, alarm trigger video mode

Backup mode

U disk, USB portable disk, USB burn, Network storage and backup

Operate mode

Mouse, Remote controller,Front Panel Control

login locally

admin and password

Save recording

local hard disk and network

External interface

Video input

720P 25FPS/CH AHD,960H 25FPS/CH Analog DVR

Audio input

4×RCA

Video output

1*VGA,1*HDMI

Audio output

1*RCA,1*HDMI

Network interface

10M/100M base-T Ethernet (RJ-45)

USB connect port

2 x USB 2.0

RS485

RS485*1

Alarm input

NO

Alarm output

NO

Hard disk

Internal HDD

2 SATA HDD port

Maximum capacity

Maximum 4TB each SATA

Cell phone monitoring

Support Window Mobile, iPhone,iPad, Android

Power

12V/2A

DVR size

340(L)*265(w)x70(H)mm

Weight

2.0kg(W/O HDD)

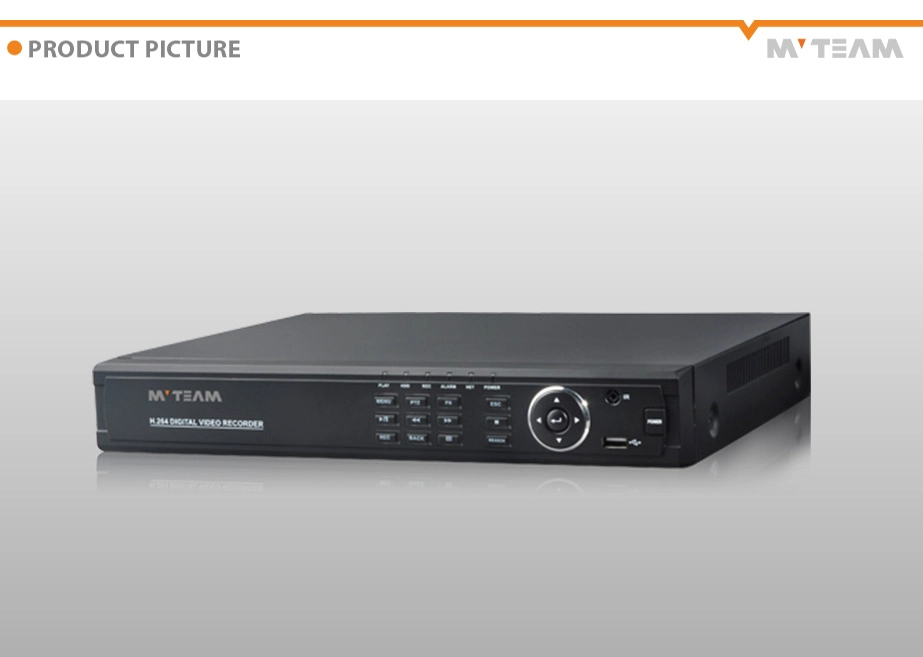

4CH AHD DVR MVT-AH6404H
