Infrared outdoor camera analog MVT R30

Infrared outdoor camera analog MVT R30

  • Model Number: MVT-R30
  • Type: bullet camera
  • Definition:600TVL/700TVL/800TVL/1000TVL(720P),CMOS/CCD
  • Lens: 8mm(M12) Lens
  • IR leds: 42pcs*D5 Pcs IR leds Array
  • IR Distance: 35m IR Distance


Main Features:

1. Economical Security camera

2. Nice image quality and cheap price

3. widely compatible, able to match AHD DVR and All Standalone DVR

4. Easy to operate, Plug and Play

5.Advanced CMS software supporting 3G remote view



Application Places
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.


Model MVT-R3041O MVT-R3041F MVT-R3041Z MVT-R3041E MVT-R3041A MVT-R3051E MVT-R3051F
Image Sensor 1/4" Color CMOS 1/3" Color CMOS 1/3" Color CMOS 1/4" Color CMOS 1/3" Color CMOS 1/3 sony CCD 1/3 sony CCD
TV System PAL/NTSC
Image Resolution PAL:752(H)×582(V), PAL:752(H)×582(V), PAL:976(H)×582(V), PAL:976(H)×582(V), 720P PAL:976(H)×582(V), PAL:976(H)×582(V),
NTSC:768(H)×494(V) NTSC:768(H)×494(V) NTSC:976(H)×494(V) NTSC:976(H)×494(V) NTSC:976(H)×494(V) NTSC:976(H)×494(V)
Horizontal Resolution 600TVL 600TVL 700TVL 800TVL 1000TVL 700TVL 700TVL
Minimum illuminator Color Model:0.003(0.6)lux(Sens-up OFF),B/W Model:0.0001(0.1)lux(Sens-up OFF) 0.01LUX/F1.2 0.01LUX/F1.2
S/N(Y Signal) >58dB >65dB(AGC OFF)
AES 1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC)
WDR D-WDR D-WDR
DNR 2D-DNR 2D-DNR
OSD OSD OSD
White Balance ATW/AWC/Manual/Outdoor(1,800°K~10,500°K)Indoor(4,500°K~8,500°K)
AGC AUTO Auto/Manual/Off
BLC ON ON/OFF
Gamma Adjusting 0.45
synchronization System Internal Synchronization
Video Output 1.0Vp-p,75Ω
Voltage DC12V (9V ~ 15V)
Operating Enviroment -20°C~60°C / 10% ~ 95%RH

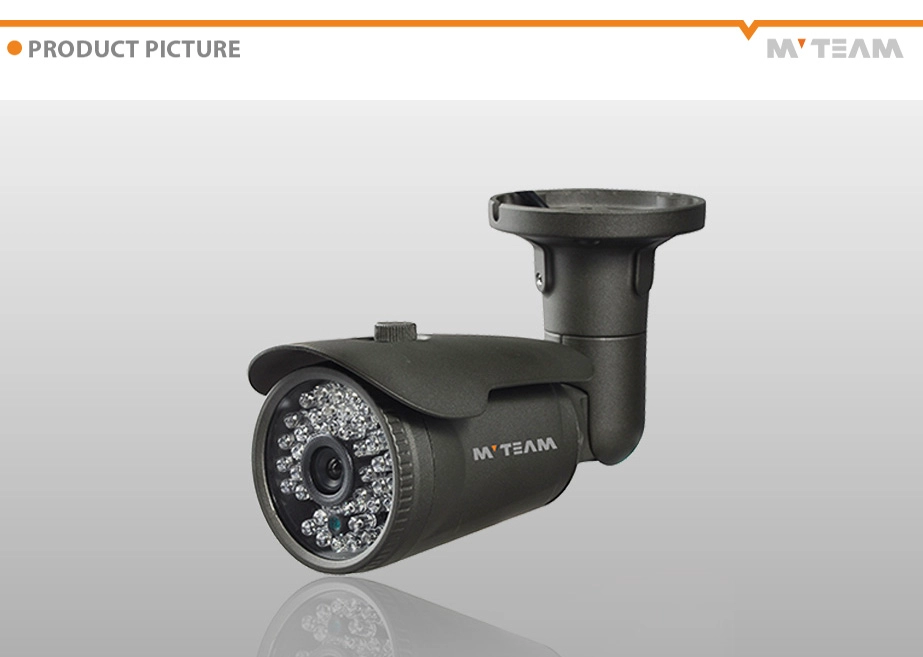

bullet camera analog MVT-R30
