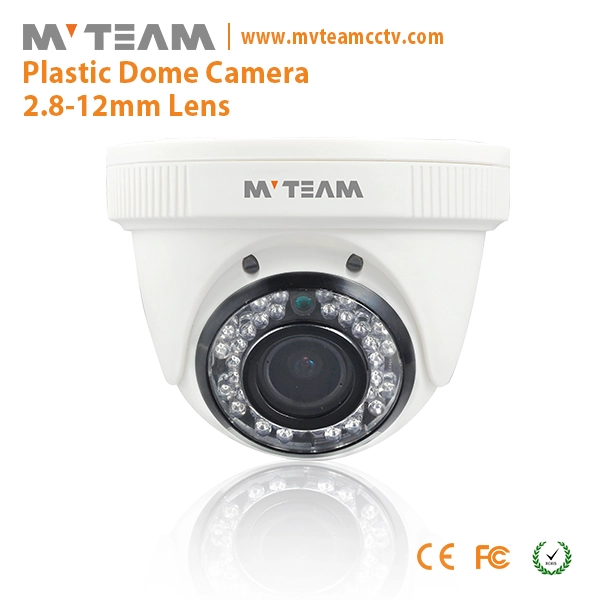

MVTEAM CCTV Analog Camera 600 700TVL IR Dome Camera MVT D29

MVTEAM CCTV Analog Camera 600 700TVL IR Dome Camera MVT D29

  • Model Number: MVT-D29
  • Type: dome camera
  • Definition: 600-700TVL
  • Lens:  2.8-12mm(M12) lens
  • IR leds: 36pcs×Φ5 IR leds
  • IR Distance:  30m


Main Features:

1. Economical Security camera

2. Nice image quality and cheap price

3. widely compatible, able to match AHD DVR and All Standalone DVR

4. Easy to operate, Plug and Play

5.Advanced CMS software supporting 3G remote view



Application Places


Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels,

museums and other places of requirement of high-definition.



 Model MVT-D2941O MVT-D2941Z MVT-D2951E
 Active Pixel  P:720(H)×576(V)  728*488  P: 976*582
 N: 720(H)×487(V)  N: 976*494
 Resolution 600TVL  700TVL  700TVL
 Video Out  1.0Vp-p Composite Signal (75ohm)  1.0Vp-p Composite Signal (75ohm)  1.0Vp-p Composite Signal (75ohm)
 SYNC    Internal
 Sensor  PC7030  PC3089  P: ICX811AK
 N: ICX810AK
 Minimum Illumination  0.01Lux  0.01Lux  0.05Lux
 Gama adjust 0.45 0.45 0.45
 Electric  PAL:1/50s-1/100000s  NTSC:1/60s-1/100000s  PAL:1/50s-1/100000s  NTSC:1/60s-1/100000s  PAL:1/50s-1/100000s  NTSC:1/60s-1/100000s
 Shutter
 S/N Ratio  48dB(min)(AGC closed)  48dB(min)(AGC closed)  48dB(min)(AGC closed)
 DNR  -  -  2D-DNR
 AWB  AUTO  AUTO ATW/PUSH/USER1/
 USER2/ANTI CR/
MANUAL/PUSH LOCK
 AGC  AUTO  AUTO  AUTO
 BLC  -  -  ON/OFF
 OSD  -  -  YES
 D-WDR  -  -  LOW/MID/HIGH
 HLC  -  -  ON/OFF
 D-Zoom  -  -  -
 IR-Smart  -  -  ON/OFF
 Day/Night  -  -  Auto,Color,
 B/W,Ext1,Ext2
 Motion  -  -  4 areas optional
 Detection
 Language  -  -  8 kinds
 Power  50mA  50mA  80mA
 Dissipation

dome camera
