MVTEAM New Design 1MP/1.3MP/2MP Waterproof IP66 30m IR AHD Camera(MVT-AH15)

  • Model Number:MVT-AH15
  • Type: bullet camera
  • Camera Sensor: CMOS
  • Resolution:2mp/1080p,1.3MP/1024P,1MP/720P
  • Lens: 3.6mm or 6mm fixed lens
  • IR LEDs: 36pcs
  • IR Distance: 30m
  • waterproof:IP66
  • Certificate:CE,ROHS,FCC
  • Warranty:2 years
MVTEAM New Design 1MP/1.3MP/2MP Waterproof IP66 30m IR AHD Camera(MVT-AH15)

• 1.0M / 1.3M / 2.0M pixel full optional real-time, high definition 1080P
• Fixed lens 3.6mm or 6mm (M12)
• Waterproof Rating: IP66
• 75- 3 general support under the coaxial cable transmission distance without loss of over 500M
• High-speed, long-distance, real-time transmission
• Support OSD
• IC transition, to reach day and night viewing

Applications:
Finance, supermarkets, telecommunications, government, schools, airports, factories, hotels, museums and other places to apply the high-resolution requirements.


 Model MVT-AH15A MVT-TAH15N MVT-AH15N MVT-AH15T MVT-AH15B MVT-AH15P
 Sensor 1/4"CMOS
(H42+NVP2432)
1.0MP720P
1/4"CMOS
(AR0141+HDI890)
1.3MP/1024P
1/4"CMOS
(AR0141+NVP2431H)
1.3MP/1024P
Low Illumination
1/3"CMOS
(AR0130
+NVP2431H)
1.3MP/1024P
1/3" CMOS
 (SONY225
+NVP2431H)
1.3MP/1024P
1/3"CMOS
(SONY322
+NVP2441H )
2.0MP/1080P
 SIGNAL  PAL / NTCS
 Video Output AHD/CVBS TVI/CVI/AHD/CVBS  AHD/CVBS AHD/CVBS AHD/CVBS AHD/CVBS
Lens 3.6mm or 6mm(M12 ) Lens
IR Distance 36pcs×Φ5 IR leds,30m IR Distance
 Min. Illumination 0.01Lux F1.2
 Shutter 4/25s~1/45,000s
 Synchronization  Internal
BLC optional
 OSD optional
 AWB Automatic / manual / day / night
 Day/Night with IR Cut, Auto(ICR) / Color / B/W
 Transmission
 Distance
 Over 500m via 75-3 coaxial cable
 Power Supply  DC 12V±10%
 Working
Environment
 30°C~+60°C/Less than 95%RH(no condensation)
Waterproof  IP66 with certificate
Warranty  2 years
 Power
Consumption
4W MAX

AHD system advantages:
AHD system advantages:

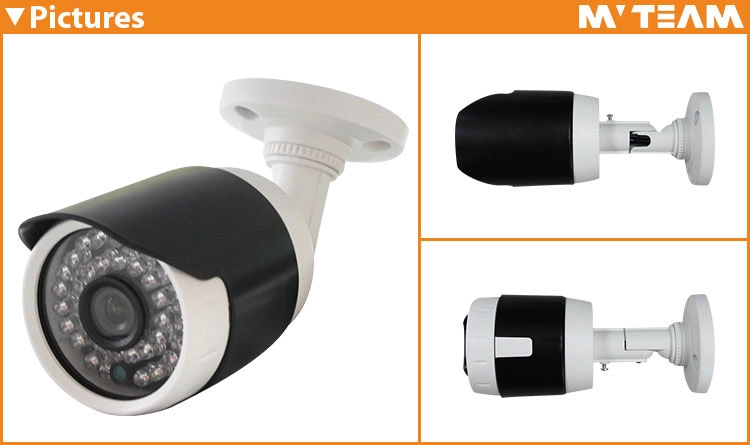

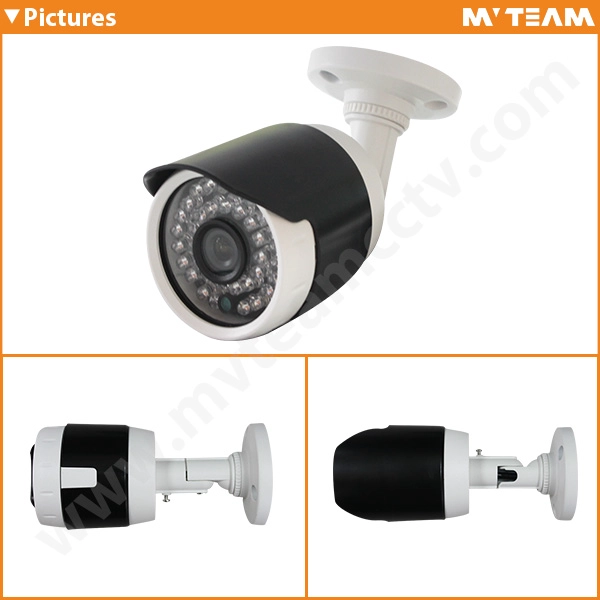

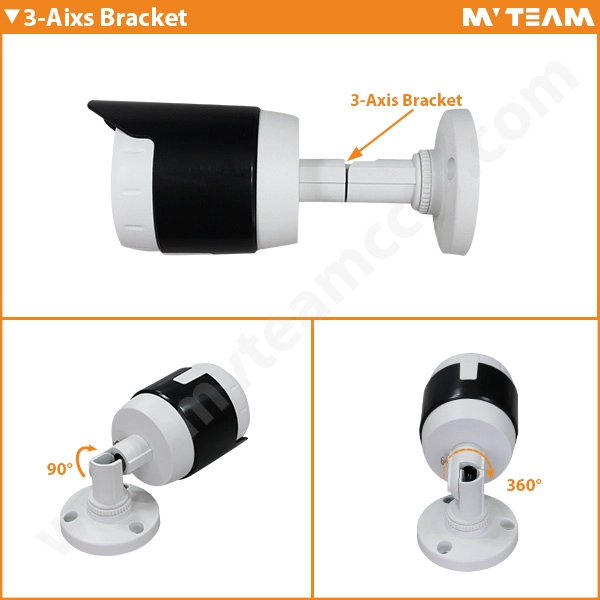

Products Pictures:
MVTEAM New Design 1MP/1.3MP/2MP Waterproof IP66 30m IR AHD Camera(MVT-AH15)

2MP AHD Camera image quality

where to buy Chinese outside home security surveillance cameras


Package: MVTEAM Brand Box Or Netural Box Or Specified by customer.

where to buy Chinese outside home security surveillance cameras-MVTEAM
Shipping: Based on the your demands to choose the best shipping way.
