New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)

New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)

  • Model Number:MVT-AH16
  • Type: bullet camera
  • Camera Sensor: CMOS
  • Resolution:2mp/1080p,1.3MP/1024P,1MP/720P
  • Lens: 2.8-12mm varifocal lens
  • IR LEDs: 42pcs
  • IR Distance: 35m
  • waterproof:IP66
  • Certificate:CE,ROHS,FCC
  • Warranty:2 years
New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)
New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)

• 1.0M / 1.3M / 2.0M pixel full optional real-time, high definition 1080P
• 2.8-12mm(M12) vari-focal Lens
• Waterproof Rating: IP66
• 75- 3 general support under the coaxial cable transmission distance without loss of over 500M
• High-speed, long-distance, real-time transmission
• Support OSD
• IC transition, to reach day and night viewing

Applications:
Finance, supermarkets, telecommunications, government, schools, airports, factories, hotels, museums and other places to apply the high-resolution requirements.

New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)
 Model MVT-AH16A MVT-TAH16N MVT-AH16N MVT-AH16T MVT-AH16B MVT-AH16P
 Sensor 1/4"CMOS
(H42+NVP2432)
1.0MP720P
1/4"CMOS
(AR0141+HDI890)
1.3MP/1024P
1/4"CMOS
(AR0141+NVP2431H)
1.3MP/1024P
Low Illumination
1/3"CMOS
(AR0130
+NVP2431H)
1.3MP/1024P
1/3" CMOS
 (SONY225
+NVP2431H)
1.3MP/1024P
1/3"CMOS
(SONY322
+NVP2441H )
2.0MP/1080P
 SIGNAL  PAL / NTCS
 Video Output AHD/CVBS TVI/CVI/AHD/CVBS  AHD/CVBS AHD/CVBS AHD/CVBS AHD/CVBS
Lens 2.8-12mm(M12) vari-focal Lens
IR Distance 42pcs×Φ5 IR leds,35m IR Distance
 Min. Illumination 0.01Lux F1.2
 Shutter 4/25s~1/45,000s
 Synchronization  Internal
BLC optional
 OSD optional
 AWB Automatic / manual / day / night
 Day/Night with IR Cut, Auto(ICR) / Color / B/W
 Transmission
 Distance
 Over 500m via 75-3 coaxial cable
 Power Supply  DC 12V±10%
 Working
Environment
 30°C~+60°C/Less than 95%RH(no condensation)
Waterproof  IP66 with certificate
Warranty  2 years
 Power
Consumption
4W MAX

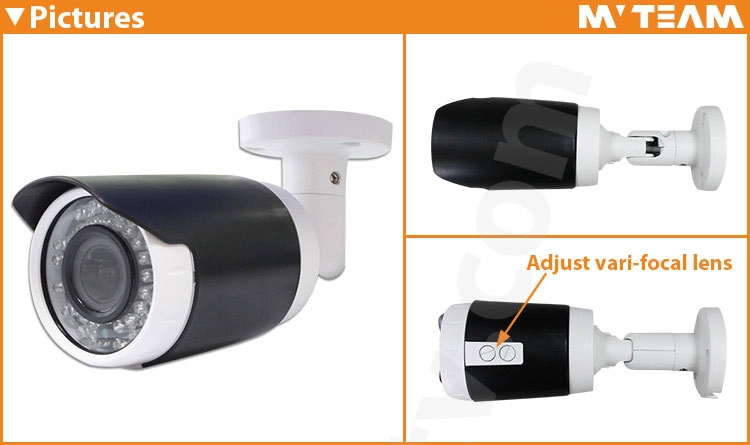

Products Pictures:
New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)
New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)
New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)
New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)
New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)
New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)
New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)
Package: MVTEAM Brand Box Or Netural Box Or Specified by customer.
New Appearance Shenzhen CCTV Camera 2.8-12mm Varifocal Lens Outdoor AHD Camera(MVT-AH16)
Shipping: Based on the your demands to choose the best shipping way.
