Outdoor bulletproof analog camera Varifocal MVT R62

Outdoor bulletproof analog camera Varifocal MVT R62

  • Model Number: MVT-R62
  • Type: Analog Camera
  • Camera Sensor: CMOS
  • Resolution: 800tvl/900tvl
  • Lens: 2.8-12mm
  • IR leds:42pcs
  • bracket:bracket with cable built-in

1. Economical Security camera
2. Good image quality and cheap price
3. Widely compatible, able to match AHD DVR and All Standalone DVR
4. Easy to operate, Plug and Play
5.  Advanced CMS software supporting 3G remote view

Model

MVT-R6241O

MVT-R6241F

MVT-R6241Z

MVT-R6241E

MVT-R6241A

MVT-R6251E

MVT-R6251F

Image Sensor

 1/4" Color CMOS

 1/3" Color CMOS

 1/3" Color CMOS

 1/4" Color CMOS

 1/3" Color CMOS

1/3 sony CCD

1/3 sony CCD

TV System

PAL/NTSC

Image Resolution

PAL:752(H)×582(V),

PAL:752(H)×582(V),

PAL:976(H)×582(V),

PAL:976(H)×582(V),

720P

PAL:976(H)×582(V),

PAL:976(H)×582(V),

NTSC:768(H)×494(V)

NTSC:768(H)×494(V)

NTSC:976(H)×494(V)

NTSC:976(H)×494(V)

NTSC:976(H)×494(V)

NTSC:976(H)×494(V)

Horizontal Resolution

600TVL

600TVL

700TVL

800TVL

1000TVL

700TVL

700TVL

Minimum illuminator

Color Model:0.003(0.6)lux(Sens-up OFF),B/W Model:0.0001(0.1)lux(Sens-up OFF)

0.01LUX/F1.2

0.01LUX/F1.2

S/N(Y Signal)

>58dB

>65dB(AGC OFF)

AES

1/50-1/60,000sec(PAL),1/60-1/60,000sec(NTSC)









AGC

AUTO

Auto/Manual/Off

BLC

ON

ON/OFF

Gamma Adjusting

0.45

synchronization System

Internal Synchronization

Video Output

1.0Vp-p,75Ω

Voltage

DC12V (9V ~ 15V)

Operating Enviroment

-20°C~60°C / 10% ~ 95%RH

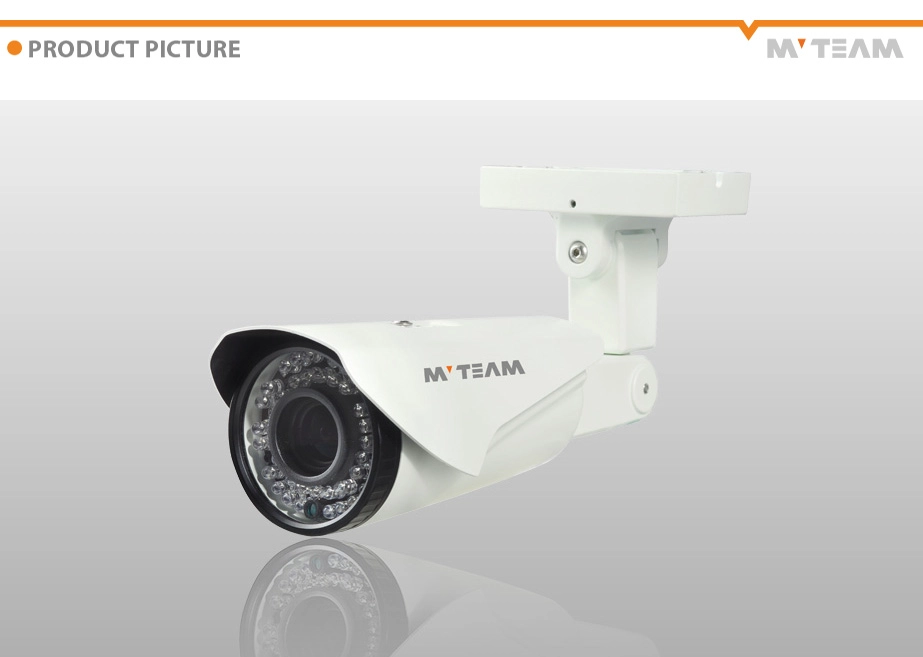

 CCTV analog camera MVT-R62
