P2P Hybrid Analog and Digital 1080N 4 Channel DVR Recorder(6704H80H)P2P Hybrid Analog and Digital 1080N 4 Channel DVR Recorder(6704H80H)

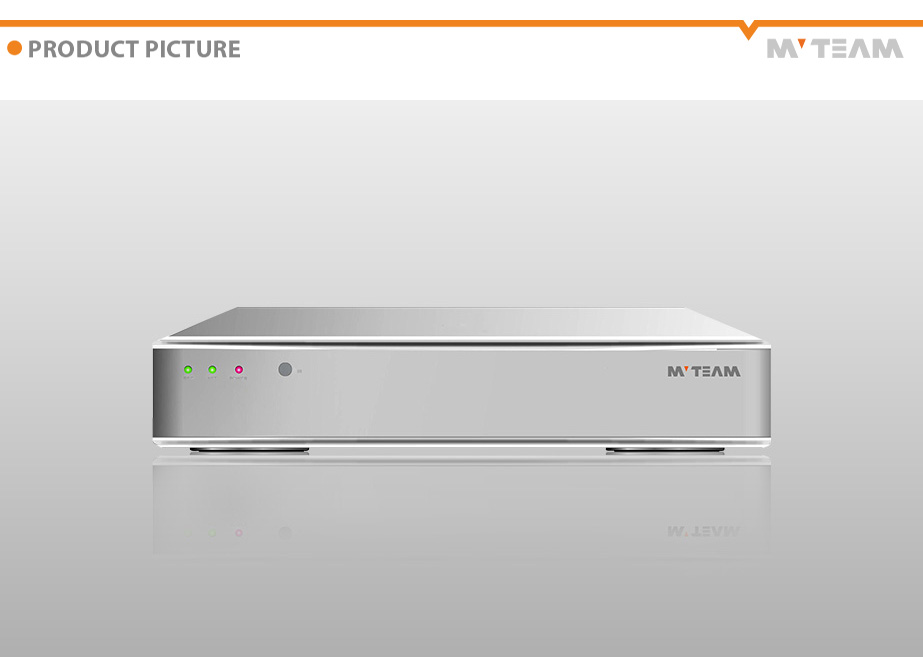

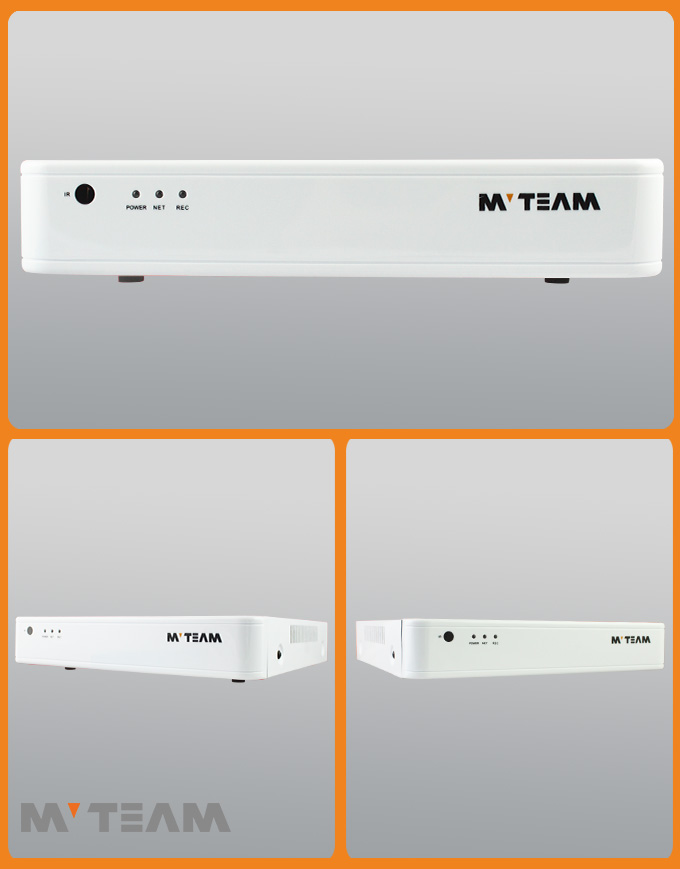

P2P Hybrid Analog and Digital 1080N 4 Channel DVR Recorder(6704H80H)

  • Model:6704H80H
  • Chipset:HI3520D V200
  • Channel:4CH; Compression:H.264
  • Resolution:4CH 1080N(960*1080)
  • Support:Audio,Alarm, PTZ control,3G Remote view
  • SATA: 1pcs; USB Port: high speed 2 pcs
  • languages:28 kinds
  • Hybrid:4CH AHD,2CH AHD+2CH IP recording,4CH IP recording
P2P Hybrid Analog and Digital 1080N 4 Channel DVR Recorder(6704H80H)

New Product 16CH 1080P Hybrid AHD Surveillance Dvr(6516H80P)
2P Hybrid Analog and Digital 1080N 4 Channel DVR Recorder(6704H80H)



1.AHD:4CH 1080N@20fps recording
           4CH 1080N playback;
2.HVR:
2CH 1080N@20fps Analog + 2CH 1080P@25fps IP recording
          1CH 1080P@25fps playback
3.NVR:4CH 1080P@25fps IP recording
        1CH 1080P@25fps playback
4-Audio: 4ch input, 1ch output

Model

6704H80H

Compression

H.264 Standard compression

Operation

Embedded  Linux

Image  coding-control

Image edit adjustable,both changable and fix stream optional

Dual stream

Can be set up in each channel

Monitor image quality

4*1080P(NVR),4*1080N(AHD),

Image dynamic detection

Multiple detection areas in each channel

Video framerate

1080P 25FPS/CH NVR ,1080N 20FPS/CH AHD

Image playback quality

NVR 1*1080P 25FPS,AHD 4CH 1080N

 Video mode

Support manual, automatic, dynamic monitoring, alarm trigger video mode

Backup mode

U disk, USB portable disk, USB burn, Network storage and backup

Operate mode

Mouse, Remote controller,Front Panel Control

login locally

admin and password

Save recording

local hard disk and network

External interface

Video input

1080P@25FPS/CH NVR ,1080N@25FPS/CH AHD

Audio input

4×RCA

Network interface

10M/100M base-T Ethernet (RJ-45)

USB connect port

2 x USB 2.0

RS485

RS485*1

Alarm input

NO

Alarm output

NO

Internal HDD

1 SATA HDD port

Maximum capacity

Maximum 4TB each SATA

Cell phone monitoring

Support Window Mobile, iPhone,iPad, Android

Power

12V/2A

DVR size

255*45*235mm

Weight

<2.7kg(without HDD)

 P2P Hybrid Analog and Digital 1080N 4 Channel DVR Recorder(6704H80H)


New Product 16CH 1080P Hybrid AHD Surveillance Dvr(6516H80P)

New Product 16CH 1080P Hybrid AHD Surveillance Dvr(6516H80P)

New Product 16CH 1080P Hybrid AHD Surveillance Dvr(6516H80P)
