Vandalproof Metal Housing Dome 720P,1024P 1080P AHD Camera with fixed lens(MVT-AH34)Vandalproof Metal Housing Dome 720P,1024P 1080P AHD Camera with fixed lens(MVT-AH34)Vandalproof Metal Housing Dome 720P,1024P 1080P AHD Camera with fixed lens(MVT-AH34)Vandalproof Metal Housing Dome 720P,1024P 1080P AHD Camera with fixed lens(MVT-AH34)

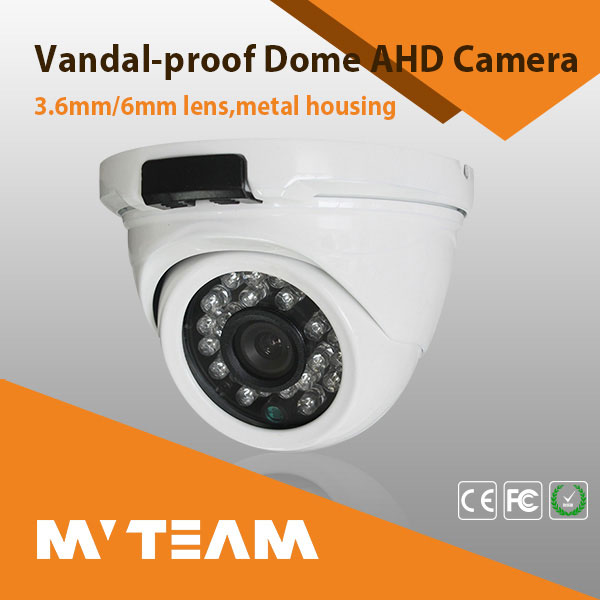

Vandalproof Metal Housing Dome 720P,1024P 1080P AHD Camera with fixed lens(MVT-AH34)

  • Model Number:MVT-AH34
  • Type: Dome AHD Camera
  • Camera Sensor: CMOS
  • Resolution:2mp/1080p,1.3MP/1024P,1MP/720P
  • Lens: 3.6mm or 6mm Lens
  • IR LEDs: 24pcs
  • IR Distance:20m
  • Waterproof available
  • Certificate:CE,ROHS,FCC
  • Warranty:2 years
Vandalproof Metal Housing Dome 720P,1024P 1080P AHD Camera with fixed lens(MVT-AH34)

• 1.0M / 1.3M / 2.0M pixel, high definition 1080P ,COMS Chipset
• 3.6mm or 6mm fixed Lens
• 24pcs×Φ5 IR leds 20m IR distance
•Waterproof available(inform us you need waterproof feature when place order)
• 75- 3 general support under the coaxial cable transmission distance without loss of over 500M
• High-speed, long-distance, real-time transmission
• Support OSD
• IC transition, to reach day and night viewing


Applications:
Finance, supermarkets, telecommunications, government, schools, airports, factories, hotels, museums and other places to apply the high-resolution requirements.


 Model MVT-AH34A MVT-TAH34N MVT-AH34N MVT-AH34T MVT-AH34B MVT-AH34R MVT-AH34P
 Sensor 1/4"CMOS
 (H42+NVP2432)
1.0MP720P
1/4"CMOS
 (AR0141+HDI890)
1.3MP/1024P
1/4"CMOS
(AR0141+NVP2431H)
1.3MP/1024P
Low Illumination
1/3"CMOS
 (AR0130+NVP2431H)
1.3MP/1024P
1/3" CMOS
(SONY225+NVP2431H)
1.3MP/1024P
1/3”CMOS
(0803+NVP2441H)
2.0MP/1080P
1/3"CMOS
(SONY322+NVP2441H )
2.0MP/1080P
 SIGNAL  PAL / NTCS
 Video Output AHD/CVBS TVI/CVI/AHD/CVBS  AHD/CVBS AHD/CVBS AHD/CVBS AHD/CVBS AHD/CVBS
Lens 3.6mm or 6mm(M12) Lens
IR Distance 24pcs×Φ5 IR leds,20m IR Distance
 Min. Illumination 0.01Lux F1.2
 Shutter 4/25s~1/45,000s
 Synchronization  Internal
BLC optional
 OSD optional
 AWB Automatic / manual / day / night
 Day/Night with IR Cut, Auto(ICR) / Color / B/W
 Transmission  Over 500m via 75-3 coaxial cable
 Distance
 Power Supply  DC 12V±10%
 Working   30°C~+60°C/Less than 95%RH(no condensation)
Environment
Waterproof  available
Warranty  2 years
 Power  4W MAX
Consumption

AHD system advantages:
AHD system advantages:

Products Pictures:
Vandalproof Metal Housing Dome 720P,1024P 1080P AHD Camera with fixed lens(MVT-AH34)

2MP AHD Camera image quality

where to buy Chinese outside home security surveillance cameras


Package: MVTEAM Brand Box Or Netural Box Or Specified by customer.

where to buy Chinese outside home security surveillance cameras-MVTEAM
Shipping: Based on the your demands to choose the best shipping way.

FAQs:
Q1:Does the AHD Camera can use as analog CVBS camera?
Yes,if add an OSD menu on camera cable,you can switch the camera modes between AHD mode and CVBS mode?
Q2:For 4 in 1 camera(AHD,CVI,TVI,CVBS),how to switch the modes?
Also need switch by OSD menu as below:
Upgrade Waterproof Dome Metal Housing AHD Camera with 2.8-12mm Vari-focal Lens(MVT-AH23)
Q3:Whether the dome camera is waterproof?
Yes,this dome camera can be made with waterproof feature,but please inform us you need this feature when arranging the order.
Q4:Whether the AHD camera can connect to analog DVR?
Yes,when switch to CVBS mode,you can connect the camera to analog DVR.
Q5:Can I view the camera on mobile phone and computer?
After connect the camera to DVR,you can view the camera thru network view function of DVRs.
Q6:Can I test sample before place mass order?
Sure,sample order is welcomed,MOQ is 1pc.
