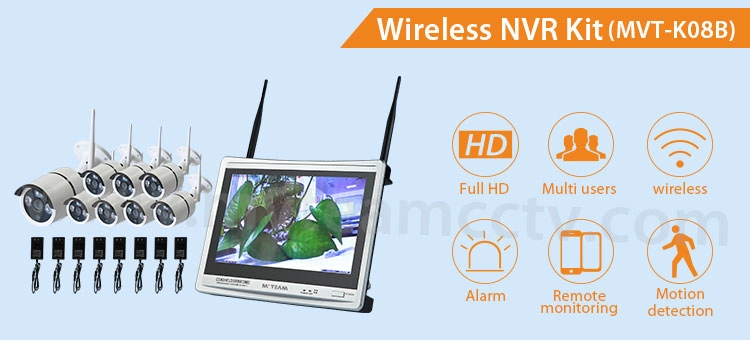

8CH 720P Wireless Best NVR Camera System With 12.5" LCD Screen(MVT-K08B)

8CH 720P Wireless Best NVR Camera System With 12.5" LCD Screen(MVT-K08B)

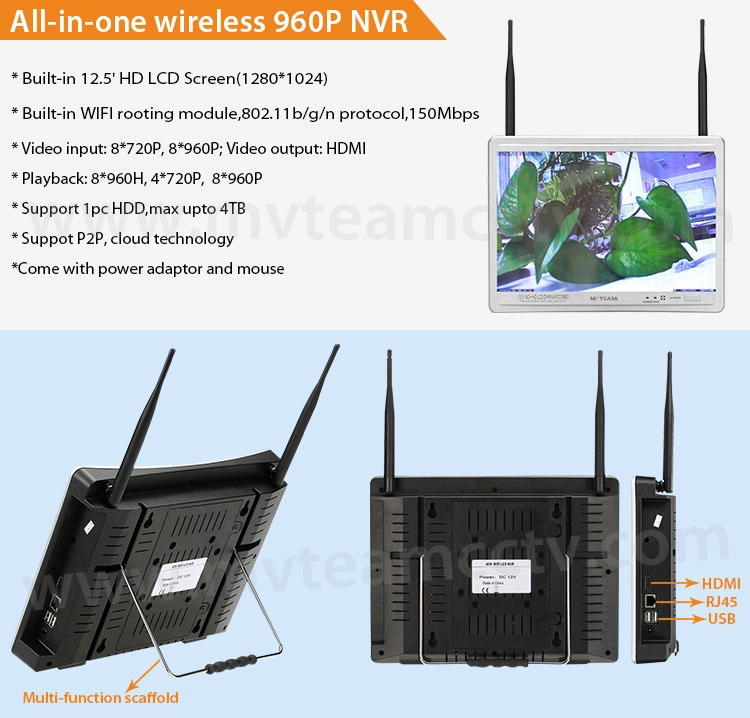

  • 1pc 8CH Wireless NVR with built-in 12.5" inch HD LCD Screen
  • Screen resolution:1280*1024
  • NVR built-in WIFI rooting module

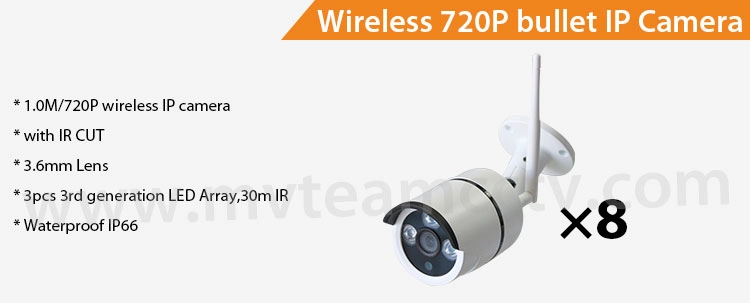

  • 8pcs 1.0M/720P Outdoor wireless IP Cameras
  • 3.6mm Lens,30m IR distance
  • Plug and Play,no need connect cables
  • with CE,ROHS,FCC Certificate

8CH 720P Wireless Best NVR Camera System With 12.5" LCD Screen(MVT-K08B)

8CH 720P Wireless Best NVR Camera System With 12.5

8CH 720P Wireless Best NVR Camera System With 12.5

8CH 720P Wireless Best NVR Camera System With 12.5

8CH 720P Wireless Best NVR Camera System With 12.5

Specfications:

Wireless NVR Specs
Operating System Embedded Linux OS
AV(audio/video)input Network Video 8CH
Network video input broadbank  20Mbps
AV (audio/video) output HDMI input 1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p
AV CODEC Specification Video Resolution 720P/960P
synch-playback 8CH
Video Control Video/Capture mode Maual,Time,Motion
Playback mode Real time,Routine,Event
Backup USB backup
Hard Disk Type 1*SATA interface
Max Capacity 4TB at most for each
External Interface Network Interface 1 adaptable RJ45 10M/100M,
2 WIFI interface
USB Interface 3 USB 2.0
Network Control Protocol UPnP (play&plug),SMTP (email survice),PPPoE (dial-up),
DHCP (Automatically obtain an IP address), etc…
Others Power  DC12V3A
Power Consumption (W)  ≤5W(Without HDD)
Operate Temperature (°C)  -10~+55
Working Humidity (%) RH 10%~90%
Size 257mm(W)×210mm(V)×45mm(H)
Weight(excluding HDD) ≤1Kg

mvteam wireless ipc spec

FAQs:

Q1- Whether the wireless kit include hard disk?

A1:  The kit come with all needed accessories except the hard disk,

We also can provide hard disk for customer,if you need,just let us know freely.

Q2- Whether the security system support network and mobile phone remote view?

A2: Yes, it can support network function.You can remote view the camera image from any where

in the world by computer(IE browser & client software) and smartphone like: iPhone, Android etc.

the mobile phone view APP is ESEENET+,more details can be found in our weblink

How to remote view wireless NVR kit on mobile phone?

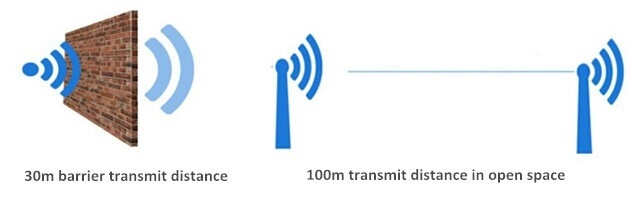

Q3-  What is the maximum distance between NVR and Camera

A3: The wireless system is a closed system, the signal is from NVR to Camera, about the

distance,theoretically,100m in open space and 30m barrier transmit distance.But the practical

distance will depends on your environment.

8CH 720P Wireless Best NVR Camera System With 12.5

Q4- Whether the NVR with wireless and Wired Ports?

A4:The NVR is a wireless NVR and at NVR side panel there is a RJ45 interface, if your NVR don't

need connect network, you can use it connect to 1pc camera via Cat5 cable.

Q5- Can use a repeater to expand the distance?

A5: Can not

Q6- Do you have any certificates for the security equipment?

A6: Yes, all MVTEAM DVR kits are with CE, RoHS, FCC certificates for Europe and USA markets.

In addition, MVT-K04DH have been mass sell to Walmart in Brazil in 2012.

8CH 720P Wireless Best NVR Camera System With 12.5
