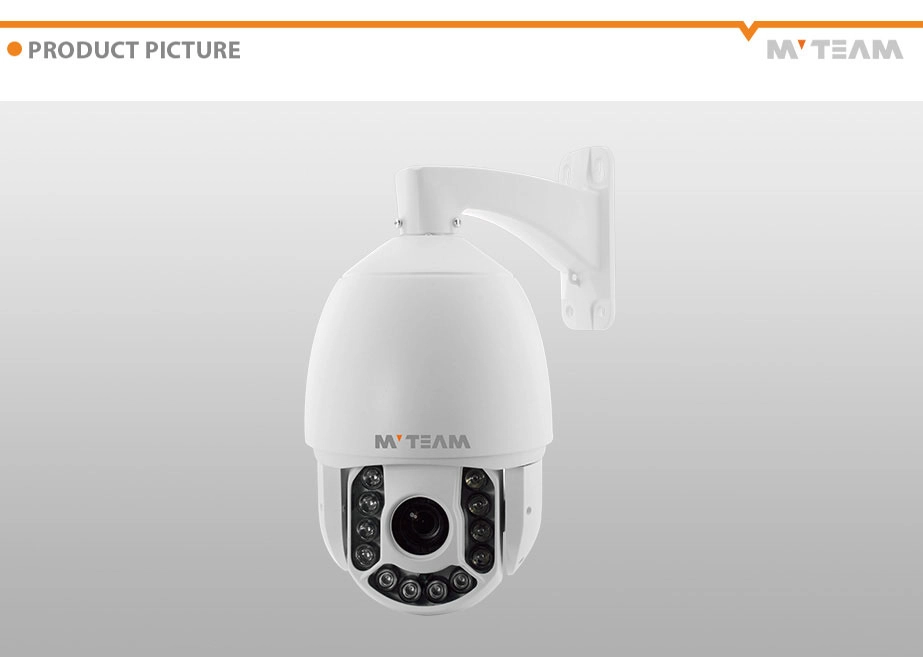

1080P 30X IR HIGH SPEED DOME MVT-NO904
- Model Number:MVT-NO904
- Type:IP PTZ
- Style:Waterproof IP66
- Camera Sensor: CMOS
- Definition:1080P
- IR range:120m
- Optical Zoom:30X
- Size:7 inch
1080P 30X IR HIGH SPEED DOME MVT-NO904
![China Factory Wholesale 1080P 10X Zoom 4](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/87/images/f0/20151031221826800.jpg.webp)
1-1/3" Panasonic CMOS,2MP/1080P,WDR,Privacy,Defog
2-Lens:30X Optical zoom,4.3 mm ~ 129.0 mm
3-Outdoor 7 inch speed dome,IR range:more than 120m
4-Day/Night(ICR),auto iris ,auto focus ,AWB,AGC ,BLC.
5-Pan range: 0°~360° Continue ,Tilt range: 0°~90° Flip ,Pan Speed: Max 300°/sec
6-4 Pattern auto scan path ,8 group programmable scanning track
5-Pan range: 0°~360° Continue ,Tilt range: 0°~90° Flip ,Pan Speed: Max 300°/sec
6-4 Pattern auto scan path ,8 group programmable scanning track
7-Surge & Wave protection,Operating Temperature:‐10℃ ~ +50℃
![1080P IR 20X HIGH SPEED DOME MVT NO902](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/87/images/00/20170119134556100.jpg.webp)
![China Factory Wholesale 1080P 10X Zoom 4](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/87/images/ca/20151031202017374.jpg.webp)
![](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/87/images/94/20170119134623792.jpg.webp)
Contact us:
If you have any question, welcome to Contact us.
Your close attention to our company is highly appreciated.
Welcome to visit our official website www.mvteamcctv.com.
![1080P IR 20X HIGH SPEED DOME MVT NO902](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/87/images/00/20170119134556100.jpg.webp)
Video instruction for setting IP PTZ Camera :
![China Factory Wholesale 1080P 10X Zoom 4](https://cdn.cloudbf.com/thumb/format/mini_xsize/upfile/87/images/ca/20151031202017374.jpg.webp)
Ethernet SPEC | |
System Structure | Embedded LINUX RTOS ,dual core 32 bits DSP (TI Davinci DM368) |
Pure hardware compression, watchdog, 32M Flash, 128M DDR2. | |
Video compression | H.264 compression ,dual stream ( 0.1M-6Mpbs adjustable) |
Frame Rate | 2.0 megapixel@ 25fps(full real time), support 1-25 fps(adjustable); |
Image Output | Main Stream:1920×1080,1280×720; |
Sub Stream: 640×360,480×270,352×288,320×240,352×192,320×192,288×192,256×192; | |
Alarm Function | Motion detection and IO alarm linkage ip camera storage supported |
Network Function | Center warning and picture pop-up linkage supported ( after motion detection and IO alarm) |
Protocols : RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP | |
WEB configure and OSD supported, real time recording, transmission and playback, download. | |
Free UC2 client software supported, VM6000 platform supported, SDK for customer software development; | |
CAMERA SPEC | |
Sensor | 1/3" Panasonic CMOS |
Resolution 1920×1080 | |
Scanning System | Progressive |
Angle | 58.16°-2.9°(Wide-Tele) |
Lens | Focal length 4.3 mm ~ 129.0 mm |
Zoom | 30x Optical Zoom |
Min. Illumination | 0.02LUX |
Iris | Auto |
SPEC FUNTION | WDR,Privacy |
White Balance | Auto |
IRcf Control | Auto* / Manu (soft) |
Focus Length | ~1.0m(tele)~0.01m(wide) |
Signal Process | Digital Signal Processor DSP-8 system |
White Balance | Auto* / Manu (R Gain/B Gain, Level: UP~DOWN) |
IRcf Control | Auto* / Manu (soft) |
Specification | |
Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
Max Imagine Resolution | 1920*1080p |
Frame | 25/30 fps |
Image compression | H.264/MJPEG |
Dual stream | Support |
Onvif | Onvif 2.4 Ver. |
Protocols | TCP/IP.HTTP.DHCP.PPPoE.UDP.RTP/RTCP.DNS.DDNS .UPnP.SMTP |
Manual speed | Pan(0.2°~200°/s) |
Tilt(0.2°~100°/s) | |
Preset speed | 200°/S |
Rotation | Continuously 360°;tilt 0~90° with auto-flip |
Speed Proportion | Human-oriented focal length/speed adaptation |
Preset | 128 preset, title can be edited |
Auto-flip | Tilt down 90°, with auto-flip 180° |
Scan | 355° programmable ,4scan |
Pattern | 4 patterns |
Power up Action | Auto restore to previous PTZ and lens status after power failure |
Idle Motion | Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period |
Time task | Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time |
OSD | Built-in |
Privacy | Support |
Temperature | -20℃~+60℃ |
Humidity | 0~95%(Non-condensation) |
Protection grade | IP66, lightning-proof, surge-proof |
Power/ consumption | AC24V/ 40W(IR on) |
Net weight | 6.5kg |
