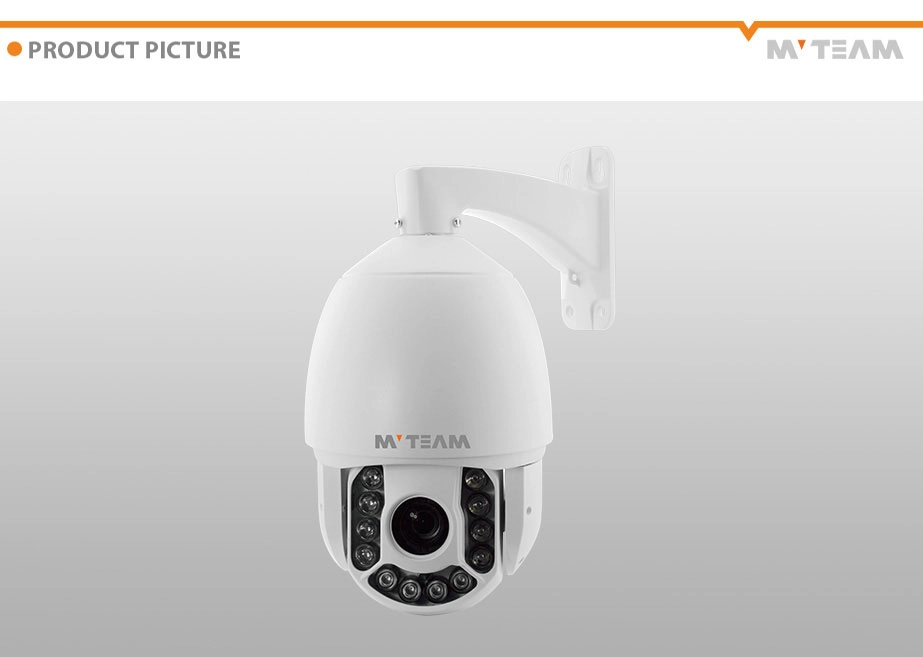

33X Optical Zoom 2MP Outdoor Dome  PTZ IP Camera( MVT-NO704)

33X Optical Zoom 2MP Outdoor Dome PTZ IP Camera( MVT-NO704)

  • Model Number: MVT-NO704
  • Type:IP PTZ
  • Style: Waterproof Outdoor
  • Camera Sensor: CMOS
  • Definition:1080P
  • IR range:120m
  • Optical Zoom:30X
  • 30X Optical Zoom 2MP Outdoor Dome  PTZ IP Camera( MVT-NO904)
33X Optical Zoom 2MP Outdoor Dome  PTZ IP Camera( MVT-NO704)

1080P,1/3" Panasonic CMOS,30X optical Zoom ,4.7 mm ~ 155.0 mm
WDR,Privacy,Defog,P2P

1) 5.5" high speed dome IR range:120m
Max.25/30fps@ 1080p resolution

2)  TI 368 solution, H.264 & MJPEG dual-stream encoding

3) DWDR, Day/Night(ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC

4) Multiple network monitoring: Web viewer, CMS

5) Max 300°/s pan speed, Pan range:0°~360°continue,  Tilt range: 0°~90° Flip

6) Preset: 128 ;4 Pattern auto scan  path

7) Surge & Wave protection

8)Operating Temperature:‐10℃ ~ +50℃

9)Waterproof



Pan continuously 360° rotate, tilt 90° rotation with auto-flip
Horizontal Speed(0.1°~220°/s),  Vertical Speed(0.1°~180°/s)
IR range:more than 100 m, constant current control, synchronous switch
Humanize focus and speed proportion
128 presets (titles can be set);
Tour is based on presets, speed & park time of presets can be set.
4 scan, support scanning between left limit and right limit at an appointed speed.
presets, tour, scan, pattern, camera mode and display name etc.
Park action function, can auto-call presets or start-up tour, pattern and scan after dome idle for a period of time
Memory store function, built-in memorizer which can store parameters of camera & functions of PTZ.
Display function of Pan/tilt position and zoom, provide a port for motion-tracking and data processing
Privacy masking zone, you can set a masking frame to protect privacy when there is a private zone displaying on screen.
Built-in TVS wave-proof.
Ethernet SPEC
System Structure Embedded LINUX RTOS ,dual core 32 bits DSP (TI Davinci DM368)
Pure hardware compression, watchdog, 32M Flash, 128M DDR2.
Video compression H.264 compression ,dual stream ( 0.1M-6Mpbs adjustable)
Frame Rate 2.0 megapixel@ 25fps(full real time), support 1-25 fps(adjustable);
Image Output Main Stream:1920×1080,1280×720;
Sub Stream: 640×360,480×270,352×288,320×240,352×192,320×192,288×192,256×192;
Alarm Function Motion detection and IO alarm linkage ip camera storage supported
Network  Function Center warning and picture pop-up linkage supported ( after motion detection and IO alarm)
Protocols : RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
WEB configure and OSD supported, real time recording, transmission and playback, download.
Free UC2 client software supported, VM6000 platform supported, SDK for customer software development;
CAMERA SPEC
Sensor 1/2.8" Panasonic CMOS 34222
Resolution 1920×1080
Scanning System Progressive
Angle 58.16°-2.9°(Wide-Tele)
Lens Focal length 4.7 mm ~ 155mm
Zoom 33x Optical Zoom
Min. Illumination 0.02LUX
Iris Auto
SPEC FUNTION WDR,Privacy
White Balance Auto
IRcf Control Auto* / Manu (soft)
Focus Length ~1.0m(tele)~0.01m(wide)
Signal Process Digital Signal Processor DSP-8 system
White Balance Auto* / Manu (R Gain/B Gain, Level: UP~DOWN)
IRcf Control Auto* / Manu (soft)
Specification
Ethernet 10Base -T, /100Base-TX, RJ45 Connector
Max Imagine Resolution 1920*1080p
Frame 25/30 fps
Image compression H.264/MJPEG
Dual stream Support
Onvif Onvif 2.4 Ver.
Protocols TCP/IP.HTTP.DHCP.PPPoE.UDP.RTP/RTCP.DNS.DDNS .UPnP.SMTP
Manual speed Pan(0.2°~200°/s)
Tilt(0.2°~100°/s)
Preset speed 200°/S
Rotation Continuously 360°;tilt 0~90° with auto-flip
Speed Proportion Human-oriented focal length/speed adaptation
Preset  128 preset, title can be edited
Auto-flip Tilt down 90°, with auto-flip 180°
Scan 355° programmable ,4scan
Pattern 4 patterns
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/Pan/Scan/Tour/Pattern if there is no command in the specified period
Time task Auto activation of Preset/Pan/Scan/Tour/Pattern by preset-time
OSD Built-in
Privacy  Support
Temperature  -20℃~+60℃
Humidity 0~95%(Non-condensation)
Protection grade IP66, lightning-proof, surge-proof
Power/ consumption AC24V/ 40W(IR on)
Net weight 6.5kg
