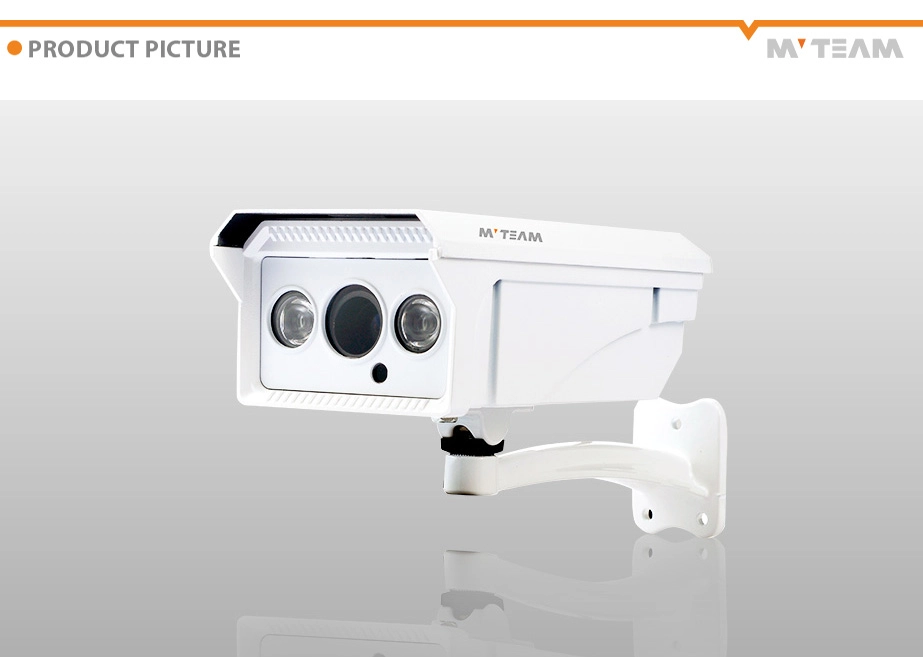

CVI Camera outdoor hospital security camera MVT CV73A
- Model Number: MVT-CV73A
- Type: bullet camera
- Definition: 720P
- Lens: 8mm Lens
- IR leds: 2 pcs 3rd generation LED Array
- IR Distance: 50m
1.High definition 720P/1.0MP
2.Connected by coaxial cable, easy to install, same with analog camera
3.Long transmission distance up to 500m
4.More stable, No signal Loss
| Model | MVT-CV73A |
| Sensor | 1/3" CMOS pixelplus 1.0M/ 720P |
| SIGNAL | PAL / NTCS |
| Video Output | HD-CVI |
| Effective Pixels | 1280(H)*720(V) |
| Min. Illumination | 0.05Lux@（F1.2,AGC ON）,0 Lux with IR |
| Shutter | 1/3s～1/100,000s, supported slow shutter |
| Video Frequency | 1280×720@50 fps；1280×720@60 fps |
| Synchronization | Internal |
| Video Output | 1-channel BNC HDCVI high definition video output |
| Noise Reduction | 3DNR |
| OSD | Support coaxial control |
| Exposure | Exposure mode / exposure level / exposure speed / anti flicker / backlight mode |
| AWB | Automatic / manual / day / night |
| Day/Night | Auto(ICR) / Color / B/W |
| Function Set | 3DNR/ digital amplifier / lens type |
| Advanced features | Camera ID / Mirror / dynamic detection / privacy masking / language /485 set / system information |
| Image Adjustment | Sharpness / brightness / contrast / saturation / sharpness inhibition / a chroma suppression / gamma / switch |
| Transmission Distance | Over 500m via 75-3 coaxial cable |
| Power Supply | DC 12V±10% |
| Working Environment | 30°C~+60°C/Less than 95%RH(no condensation) |
| Power Consumption | 8W MAX |
P2P Function Advantages:
*Don't need do stable IP address setup
*Don't need do DDNS setup
*Don't need do Router setup
*Reducing your after-sales cost
