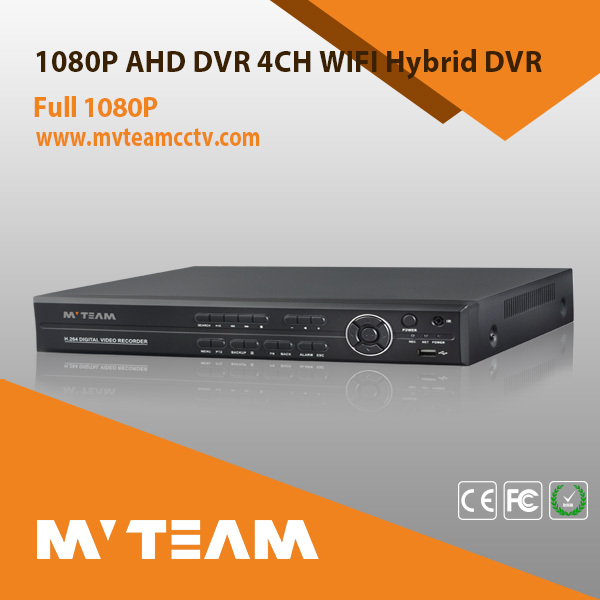

MVTEAM China CCTV AHD full 1080P DVR With wifi 4ch P2P function AH6404H80P
- Model: AH6404H80P
- Channel：4CH; Compression：H.264
- Resolution:1080P, 1920*1080
- Support:Audio, Alarm, PTZ control,3G Remote view
- SATA: 2pc; USB Port: high speed 2 pcs
- languages:20 kinds
Chipset: HI3521
Hybrid DVR, can connect IP camera, AHD Camera, CVBS Camera at same time
NVR Mode: 4*1080P
AHD DVR Mode: 4*1080P
Analog CVBS DVR Mode:4*960H
Audio: 4ch input, 1ch output
Alarm: 4ch input, 1ch output
|
Model |
AH6404H80P |
|
|
Compression |
H.264 Standard compression |
|
|
Operation |
Embedded Linux |
|
|
Image coding-control |
Image edit adjustable,both changable and fix stream optional |
|
|
Dual stream |
Can be set up in each channel |
|
|
Monitor image quality |
4*1080P (AHD), 8*1080P (NVR) |
|
|
Image dynamic detection |
Multiple detection areas in each channel |
|
|
Video framerate |
4*1080P 20FPS/CH AHD, 8*1080P 25FPS/CH NVR |
|
|
Image playback quality |
AHD 4*1080P 80FPS, 8*1080P 100FPS |
|
|
Video mode |
Support manual, automatic, dynamic monitoring, alarm trigger video mode |
|
|
Backup mode |
U disk, USB portable disk, USB burn, Network storage and backup |
|
|
Operate mode |
Mouse, Remote controller,Front Panel Control |
|
|
login locally |
admin and password |
|
|
Save recording |
local hard disk and network |
|
|
External interface |
Video input |
4*1080P 20FPS/CH AHD, 8*1080P 25FPS/CH NVR |
|
Audio input |
4×RCA |
|
|
Network interface |
10M/100M base-T Ethernet (RJ-45) |
|
|
USB connect port |
2 x USB 2.0 |
|
|
RS485 |
RS485*1 |
|
|
Alarm input |
4ch input |
|
|
Alarm output |
1ch output |
|
|
Internal HDD |
2 SATA HDD port |
|
|
Maximum capacity |
Maximum 4TB each SATA |
|
|
Cell phone monitoring |
Support Window Mobile, iPhone,iPad, Android |
|
|
Power |
12V/4A |
|
|
DVR size |
340(L)*265(W)*70(H)mm |
|
|
Weight |
<3.2kg(without HDD) |
|
P2P Function Advantages:
*No stable IP address needed
*No DDNS setup needed
*No Router setup needed
*Reducing your after-sales cost
Hybrid
The DVR have several modes for optional:
*AHD Camera + IP Camera + Analog CVBS Camera
*AHD Camera
*IP Camera
*Analog CVBS Camera
