The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)

The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)

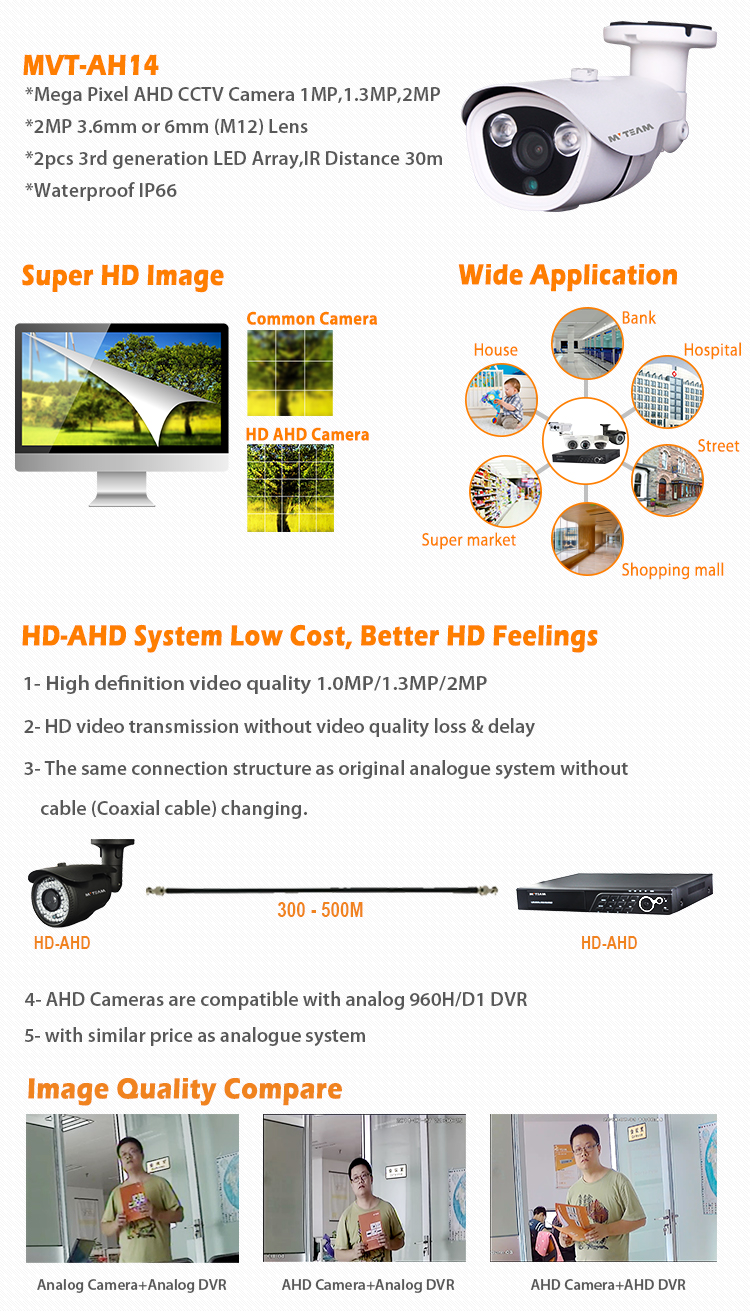

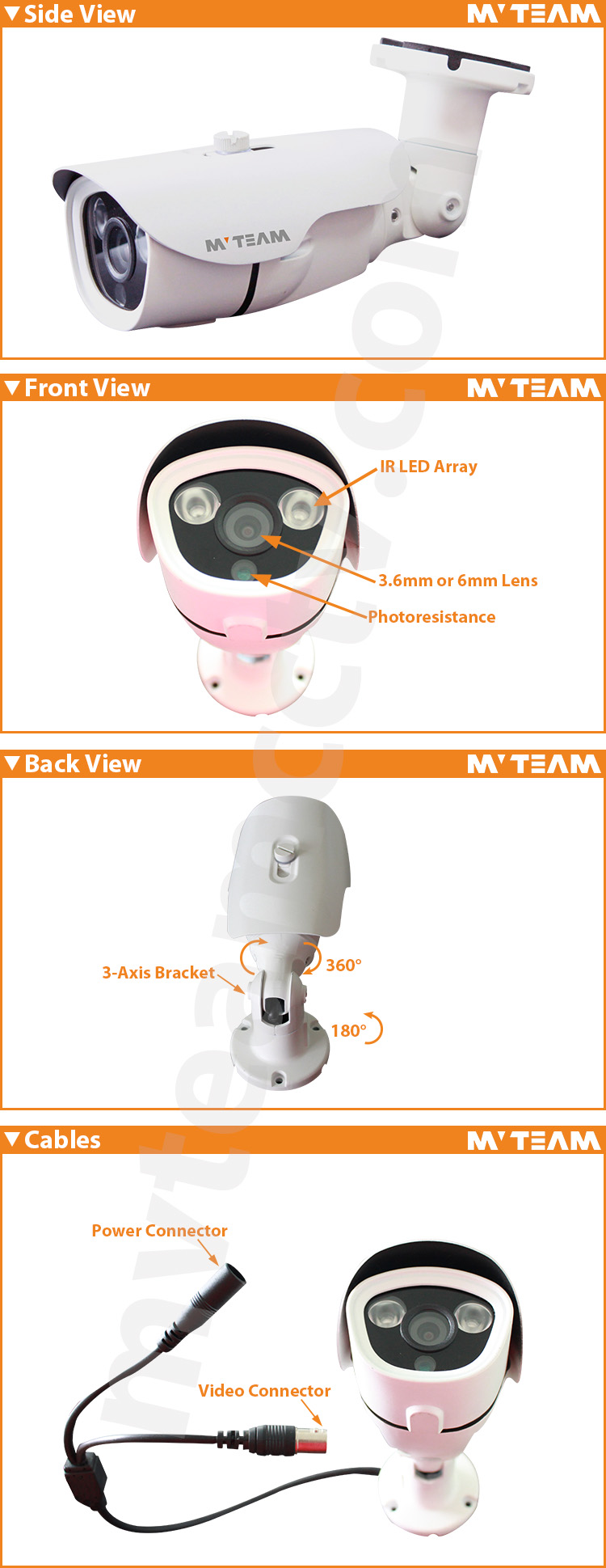

  • Model Number: MVT-AH14
  • Type: bullet camera
  • Camera Sensor: CMOS
  • Resolution:1MP/1.3MP/2MP/3MP/4MP

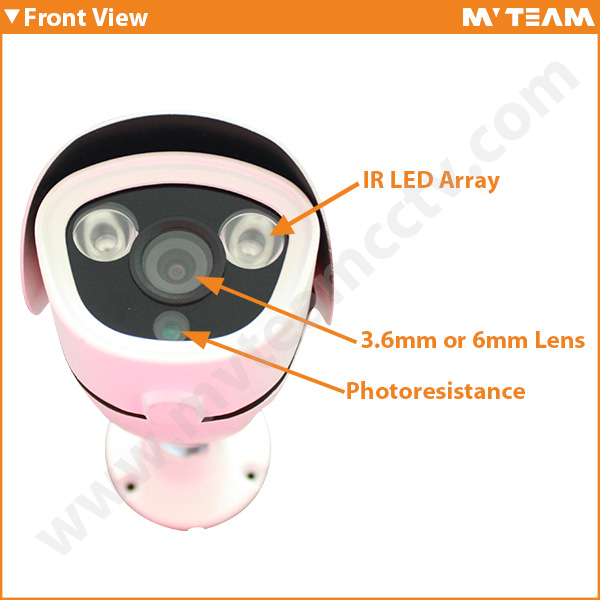

  • Lens:3.6mm ir 6mm fixed lens
  • IR LEDs: 2pcs led arrays
  • IR Distance: 30m

The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)


The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)


Model MVT-AH14A MVT-AH14T MVT-AH14R MVT-AH14P MVT-AH14F MVT-AH14W
 Sensor 1/4” CMOS(OV9732+8901) 1.0MP,with IR CUT 1/3” CMOS(AR0130+NVP2431H )
1.3MP,with IR CUT
1/3” CMOS(0803+NVP2470H )
2.0MP,with IR CUT
1/2.9” CMOS(IMX323+8902H)
2.0MP,with IR CUT
1/3” CMOS(AR0330+NVP2470H )
3.0MP,with IR CUT
1/3” CMOS(OV4689+
NVP2475H)
4.0MP,with IR CUT
UTC Function Yes NO Yes Yes Yes Yes
 SIGNAL  PAL / NTCS
 Video Output TVI/CVI/AHD AHD TVI/CVI/AHD TVI/CVI/AHD AHD AHD
Lens  6mm Lens(M12)
IR Leds 3pcs LED Array
IR Distance 30m IR Distance
 Min. Illumination 0.01Lux F1.2
 Shutter 4/25s~1/45,000s
 Synchronization  Internal
BLC optional
 OSD optional
 AWB Automatic / manual / day / night
 Day/Night with IR Cut, Auto(ICR) / Color / B/W
 Transmission  Over 500m via 75-3 coaxial cable
 Power Supply  DC 12V±10%
Waterproof IP66
 Working  Environment  -30°C~+60°C/Less than 95%RH(no condensation)
Warranty  2 years
 Power Consumption 4W MAX


The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)


The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)


Contact us to ask for the latest price list!


Q1:Does the AHD Camera can use as analog CVBS camera?
Yes,if add an OSD menu on camera cable,you can switch the camera modes between AHD mode and CVBS mode?

Q2:For 4 in 1 camera(AHD,CVI,TVI,CVBS),how to switch the modes?

Also need switch by OSD menu as below:

New Design Mega Pixel Waterproof IP66 Mini Size AHD CCTV Camera with CE,RoHS,FCC Certificates

Q3:Whether the AHD camera can connect to analog DVR?
Yes,when switch to CVBS mode,you can connect the camera to analog DVR.

Q4:Can I view the camera on mobile phone and computer?
After connect the camera to DVR,you can view the camera thru DVRs' network view function.

Q5:Can I test sample before place mass order?
Sure,sample order is welcomed,MOQ is 1pc.

 Q6:Can I buy the cameras with my own brand?

Yes,we provide OEM service.


The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)
Package: MVTEAM Brand Box Or Netural Box Or Specified by customer.

The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)
Shipping: Based on the your demands to choose the best shipping way.

The Most Sale Megapixel Waterproof IP66 Mini Size AHD CCTV Camera(MVT-AH14)


Do you want to know more about the AHD CCTV camera and our factory?

If yes,take action to Contact Us now!

Your close attention to our company is highly appreciated.
