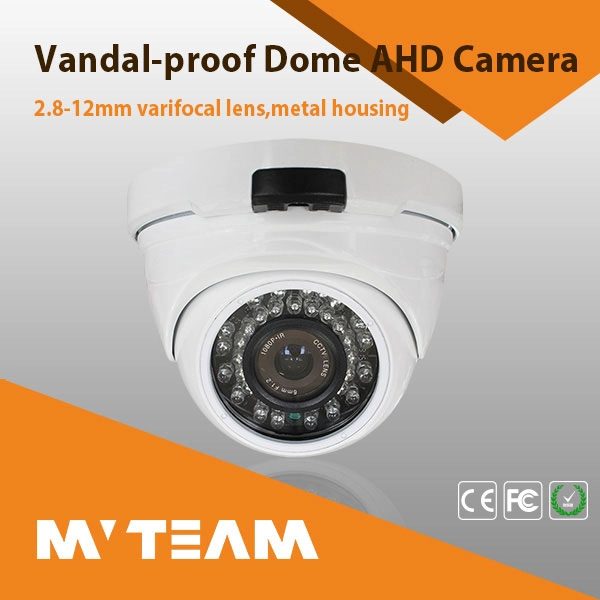

Upgrade Waterproof Dome Metal Housing AHD Camera with 2.8-12mm Vari-focal Lens(MVT-AH23)Upgrade Waterproof Dome Metal Housing AHD Camera with 2.8-12mm Vari-focal Lens(MVT-AH23)

Upgrade Waterproof Dome Metal Housing AHD Camera with 2.8-12mm Vari-focal Lens(MVT-AH23)

  • Model Number:MVT-AH23
  • Type: Dome AHD Camera
  • Camera Sensor: CMOS
  • Resolution:2mp/1080p,1.3MP/1024P,1MP/720P
  • Lens: 2.8-12mm varifocal lens
  • IR LEDs: 36pcs
  • IR Distance: 30m
  • Waterproof available
  • Certificate:CE,ROHS,FCC
  • Warranty:2 years
Upgrade Waterproof Dome Metal Housing AHD Camera with 2.8-12mm Vari-focal Lens(MVT-AH23)

• 1.0M / 1.3M / 2.0M pixel full optional real-time, high definition 1080P
• 2.8-12mm(M12) vari-focal Lens
•Waterproof available(inform us you need waterproof feature when place order)
• 75- 3 general support under the coaxial cable transmission distance without loss of over 500M
• High-speed, long-distance, real-time transmission
• Support OSD
• IC transition, to reach day and night viewing

Applications:
Finance, supermarkets, telecommunications, government, schools, airports, factories, hotels, museums and other places to apply the high-resolution requirements.


 Model MVT-AH23A MVT-TAH23N MVT-AH23N MVT-AH23T MVT-AH23B MVT-AH23R MVT-AH23P
 Sensor 1/4"CMOS
(H42+NVP2432)
1.0MP720P
1/4"CMOS
(AR0141+HDI890)
1.3MP/1024P
1/4"CMOS
(AR0141+NVP2431H)
1.3MP/1024P
 Low Illumination
1/3"CMOS
(AR0130+NVP2431H)
1.3MP/1024P
1/3" CMOS
(SONY225+NVP2431H)
1.3MP/1024P
1/3”CMOS
(0803+NVP2441H)
2.0MP/1080P
1/3"CMOS
(SONY322+NVP2441H )
2.0MP/1080P
 SIGNAL  PAL / NTCS
 Video Output AHD/CVBS TVI/CVI/AHD/CVBS  AHD/CVBS AHD/CVBS AHD/CVBS AHD/CVBS AHD/CVBS
Lens 2.8-12mm(M12) vari-focal Lens
IR Distance 36pcs×Φ5 IR leds,30m IR Distance
 Min. Illumination 0.01Lux F1.2
 Shutter 4/25s~1/45,000s
 Synchronization  Internal
BLC optional
 OSD optional
 AWB Automatic / manual / day / night
 Day/Night with IR Cut, Auto(ICR) / Color / B/W
 Transmission  Over 500m via 75-3 coaxial cable
 Distance
 Power Supply  DC 12V±10%
 Working   30°C~+60°C/Less than 95%RH(no condensation)
Environment
Waterproof  available
Warranty  2 years
 Power  4W MAX
Consumption


AHD system advantages:
AHD system advantages:

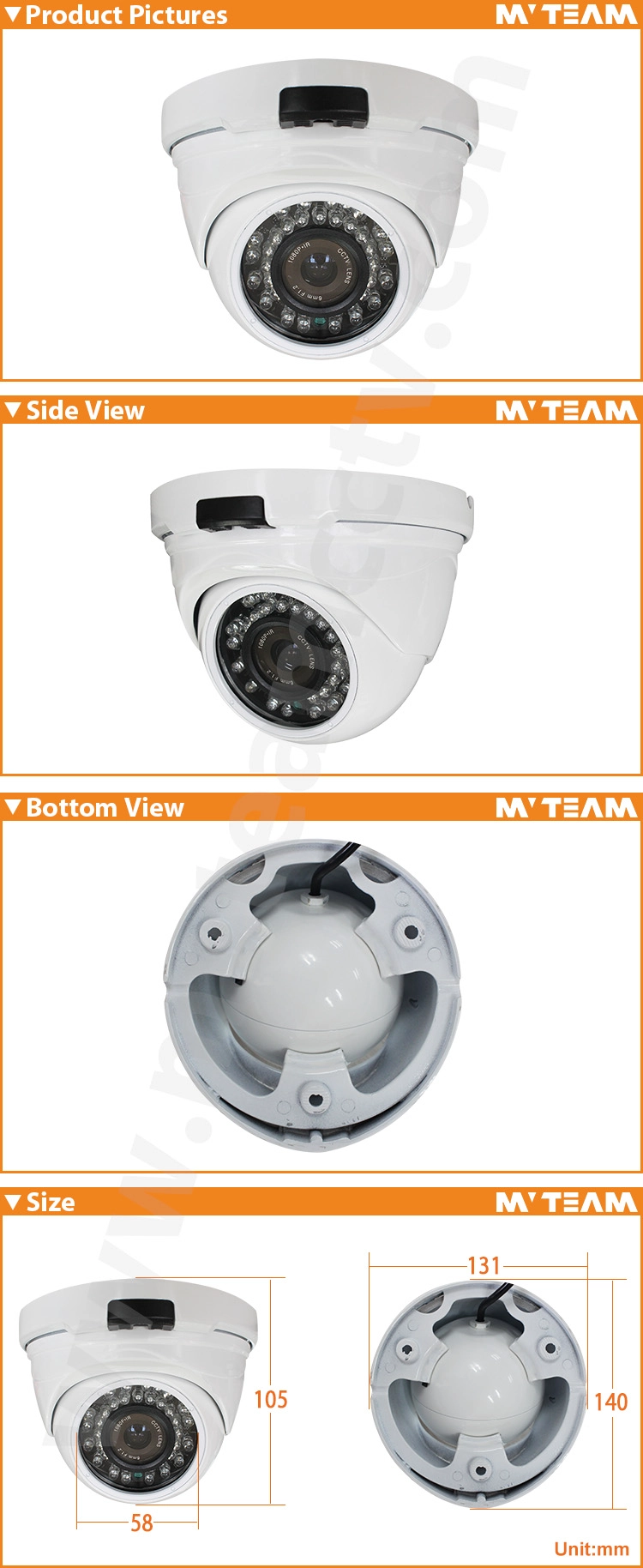

Products Pictures:
Upgrade Waterproof Dome Metal Housing AHD Camera with 2.8-12mm Vari-focal Lens(MVT-AH23)

2MP AHD Camera image quality

where to buy Chinese outside home security surveillance cameras


Package: MVTEAM Brand Box Or Netural Box Or Specified by customer.

where to buy Chinese outside home security surveillance cameras-MVTEAM
Shipping: Based on the your demands to choose the best shipping way.

FAQs:
Q1:Does the AHD Camera can use as analog CVBS camera?
Yes,if add an OSD menu on camera cable,you can switch the camera modes between AHD mode and CVBS mode?
Q2:For 4 in 1 camera(AHD,CVI,TVI,CVBS),how to switch the modes?
Also need switch by OSD menu as below:
Upgrade Waterproof Dome Metal Housing AHD Camera with 2.8-12mm Vari-focal Lens(MVT-AH23)
Q3:Whether the dome camera is waterproof?
Yes,this dome camera can be made with waterproof feature,but please inform us you need this feature when arranging the order.
Q4:Whether the AHD camera can connect to analog DVR?
Yes,when switch to CVBS mode,you can connect the camera to analog DVR.
Q5:Can I view the camera on mobile phone and computer?
After connect the camera to DVR,you can view the camera thru network view function of DVRs.
Q6:Can I test sample before place mass order?
Sure,sample order is welcomed,MOQ is 1pc.

Contact us:

If you have any question, welcome to Contact us

Your close attention to our company is highly appreciated.

Welcome to visit our official website www.mvteamcctv.com to view video demos,download product catalog and read CCTV technical articles
