Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)

Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)

  • Model Number:MVT-M16
  • Type: bullet camera
  • Camera Sensor: CMOS
  • Resolution:4MP,3MP,2mp/1080p,1.3MP/1024P,1MP/720P
  • Lens: 3M Pixels 2.8-12mm varofocal Lens(M12)
  • IR LEDs: 42pcs
  • IR Distance: 35m
  • Support POE,ONVIF,P2P remote view
  • waterproof:IP66
  • Certificate:CE,ROHS,FCC
  • Warranty:1 year
Vari-focel Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)
Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)
Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)
1)Resolution HD 720P/1MP,1024P/1.3MP,1080P/2MP,3MP,4MP

2) 3M Pixels 2.8-12mm varifocal Lens(M12)
3)Support Onvif, POE
4)Support P2P remote view by mobile phone and computer
5)Night vision 35M
6) 1 year Warranty
7) With CE,FCC, RoHS certificates
Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)

Model   MVT-M1620 MVT-M1624C MVT-M1680 MVT-M1692
Sensor type Hi3518E+
1/4" CMOS OV9712
Hi3518E+
1/3"CMOS Aptina130
Hi3516C +1/3" CMOS
SONY IMX323
Hi3516D +1/3"CMOS OV4689
Compress standard  H.264 Main profile,MPEG4,MJPEG
Resolution 720P 1280*720 960P 1280*960 1080P  1920*1080 4MP 2592*1520(15FPS)
3MP 2048*1520(25FPS)
Shutter speed   1/50(1/60) ~ 1/100,000 s
Video compression 32Kbps~16Mbps
Lens  3M Pixels 2.8-12mm varofocal Lens(M12)
Lens Interface type (M12)
Day and night switch system IR-CUT
Audio Compression ADPCM
WDR Support DWDR
 Minimum illumination 0.05Lux @Color,0.01Lux B/W
Image setting  Saturation,brightness,contrast ratio can be adjusted by CMS and IE browser
Intelligent alarm Motion detecting, video loss,network cable disconnection, and IP address conflict
Memory Function    Network storage
Network Protocol P2P,RTP,RTSP,TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE,SMTP,NTP
General function Flash-prevention, double stream, heartbeat, password protection
Communication interface   1ch RJ45,10M/100M ethernet ports adaptively
LED 42pcs×Φ5 IR leds  leds leds
IR distance        35m
ONVIF Support ONVIF 2.3
IP Grade    IP66
Power  Optional to make POE on extension Video Cable
Come with DC 12V/1A Power adaptor

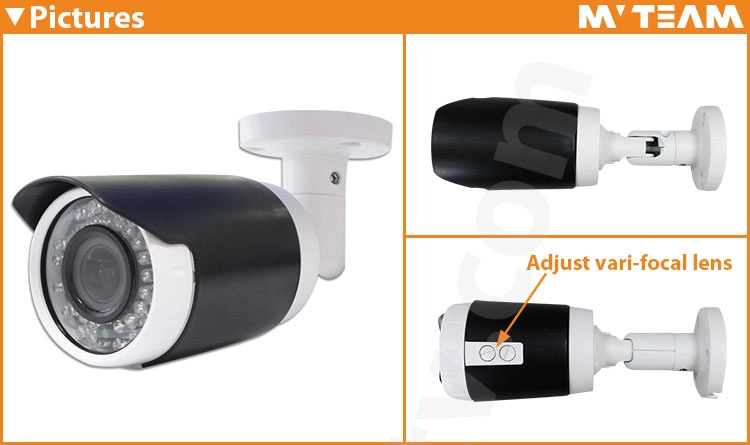

Products Pictures:
Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)
Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)
Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)


Click FAQs of MVTEAM IP Cameras to find the answer of below FAQs:
1) How to View IP Camera via NVR?
2) How to Change IP Address of IP Camera?
3) How to do when forget IP Camera password?
4) How to view IP Camera by Computer and Smart Phone?
5)How to remote view wireless NVR kit on mobile phone?
6)How long is the transmission distance of IP camera?
7)What’s the real distance for the power supply of POE?
8) DWDR Function of MVTEAM IP Cameras and AHD Cameras


Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)
Package: MVTEAM Brand Box Or Netural Box Or Specified by customer.
Vari-focal Lens 2.8-12mm Outdoor IP Camera 720P 1024P 1080P POE IP Camera(MVT-M16)
Shipping: Based on the your demands to choose the best shipping way.
