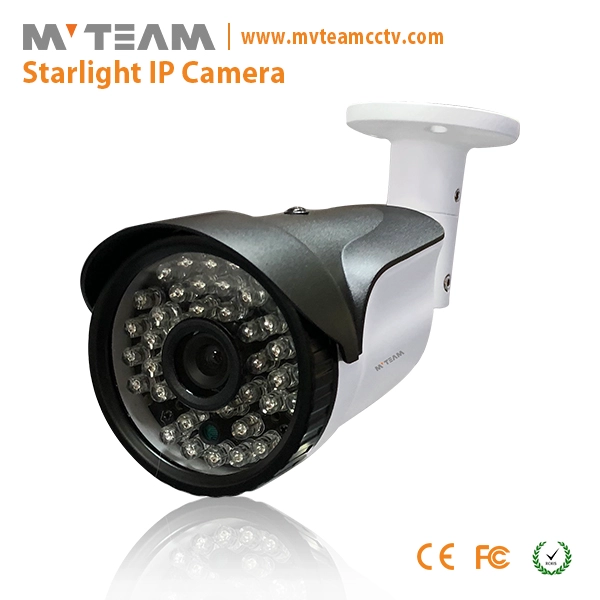

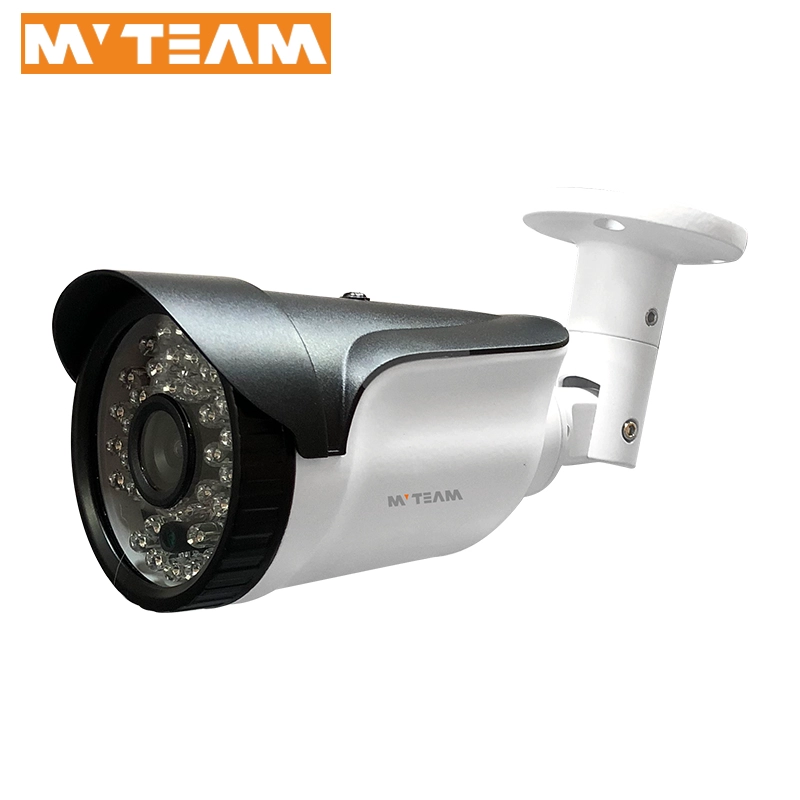

Model

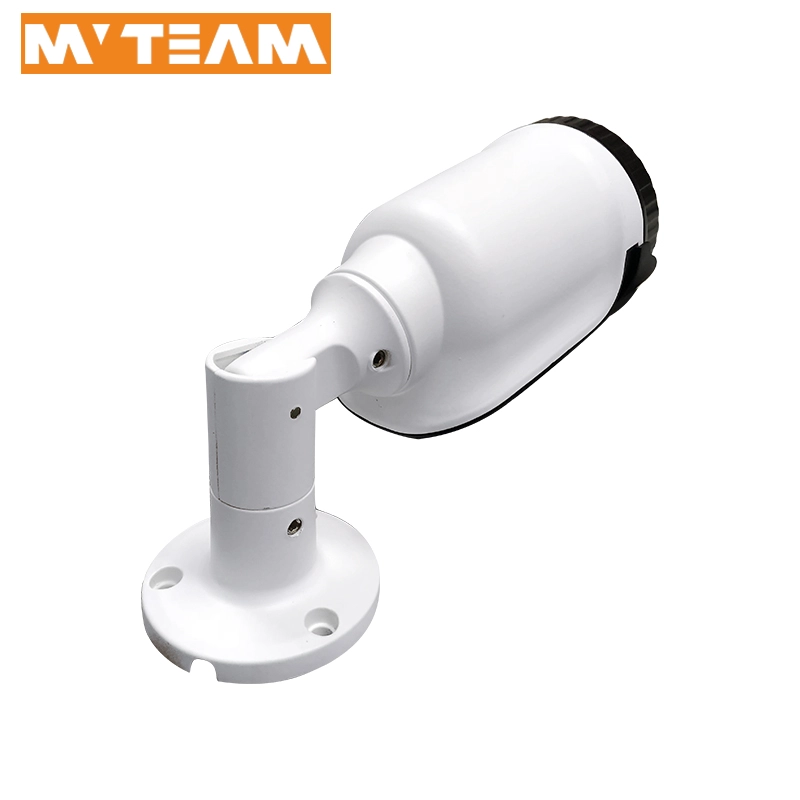

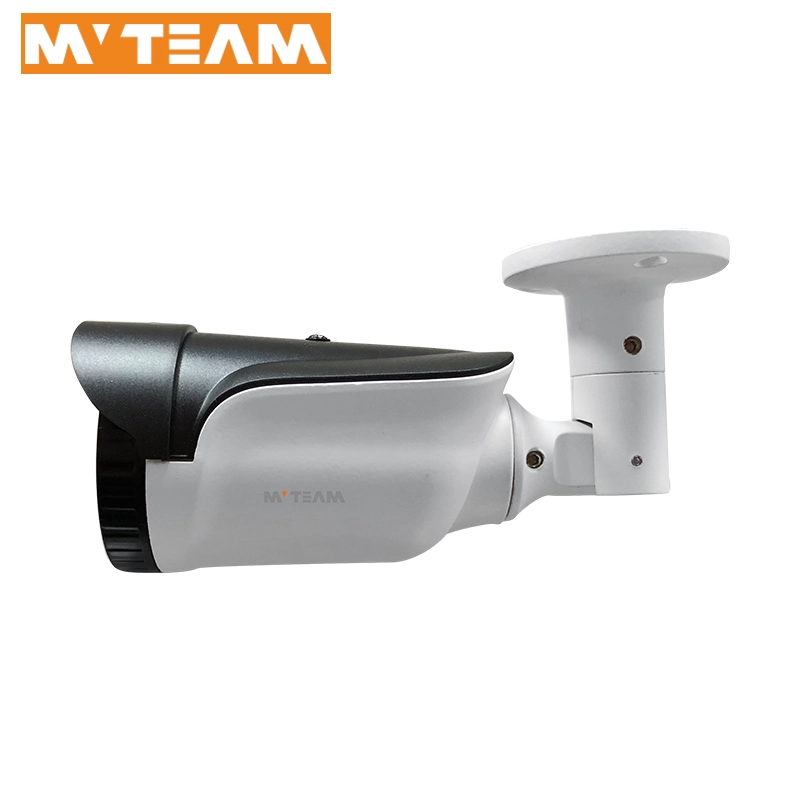

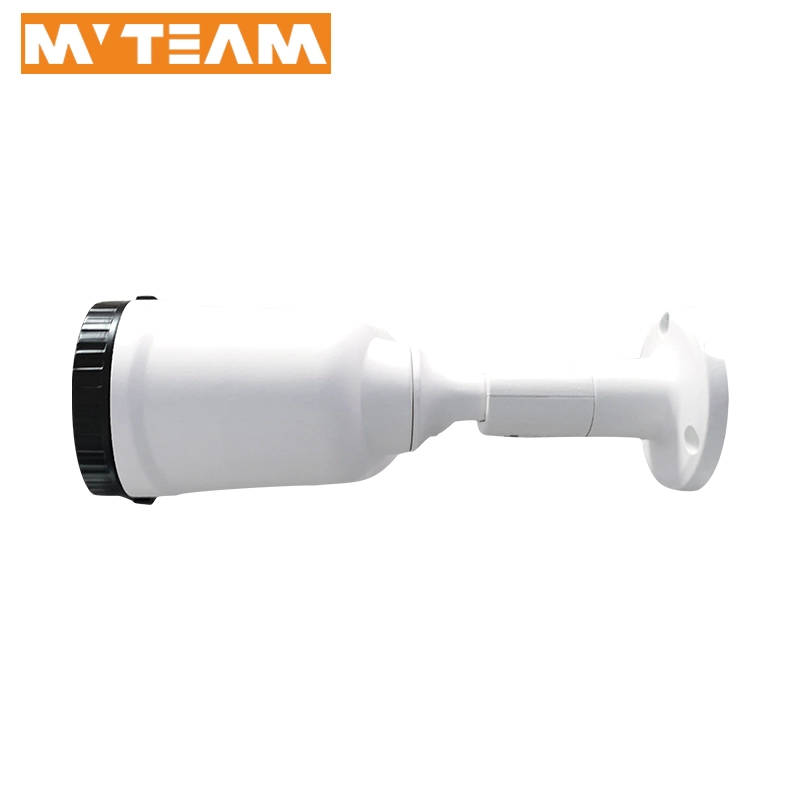

MVT-M3280S

Sensor type

1/2.8" SONY CMOS IMX291(Low illumination)

DSP

Hi3516CV300

Compression format

H.264/JPEG/AVI/MJPEG

Resolution

1080P  1920*1080

Shutter speed

1/50(1/60) ~ 1/100,000 s

Video compression

32Kbps~16Mbps

Lens

Megapixel HD 8mm Lens(CS)

Lens Interface type

(M12)

Day and night switch system

IR-CUT

Audio Compression

ADPCM

WDR

Support DWDR

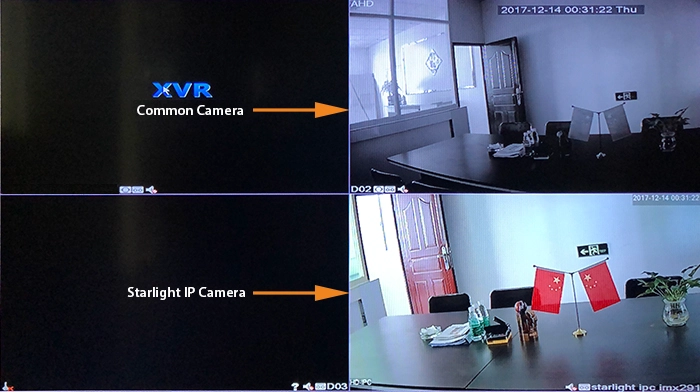

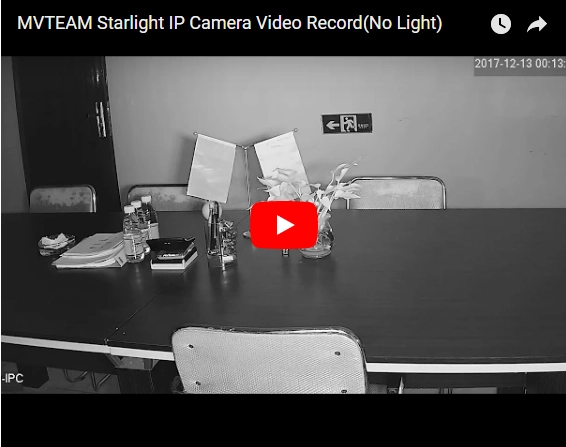

 Minimum illumination

0.001Lux

Image setting

Saturation,brightness,contrast ratio can be adjusted by CMS and IE browser

Intelligent alarm

Motion detecting, video loss,network cable disconnection, and IP address conflict

Memory Function

Network storage

Network Protocol

P2P,RTP,RTSP,TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE,SMTP,NTP

General function

Flash-prevention, double stream, heartbeat, password protection

Communication interface

1ch RJ45,10M/100M ethernet ports adaptively

LED

42pcs IR leds

IR distance

35m

ONVIF

Support ONVIF 2.4

Power

DC 12V/1A Power adaptor or make POE on extension Video Cable

Operating  Temperature

-10°C~50°C
