32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)

32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)

  • Model: 62B32H80H

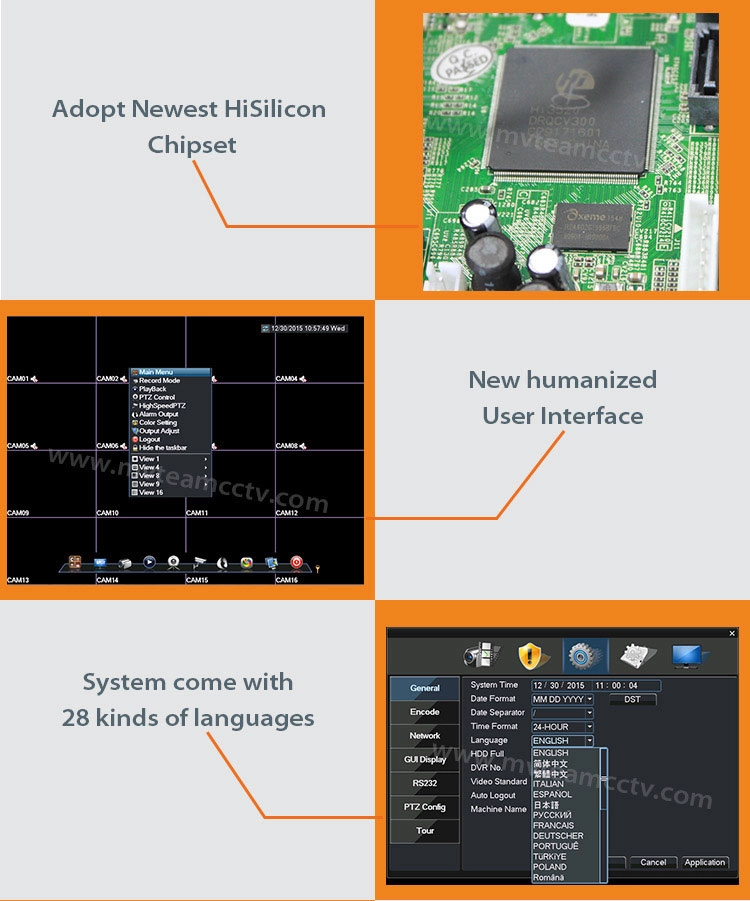

  • Chipset:HI3531A
  • Channel:32CH; Compression:H.264
  • Resolution:1080N(960*1080)

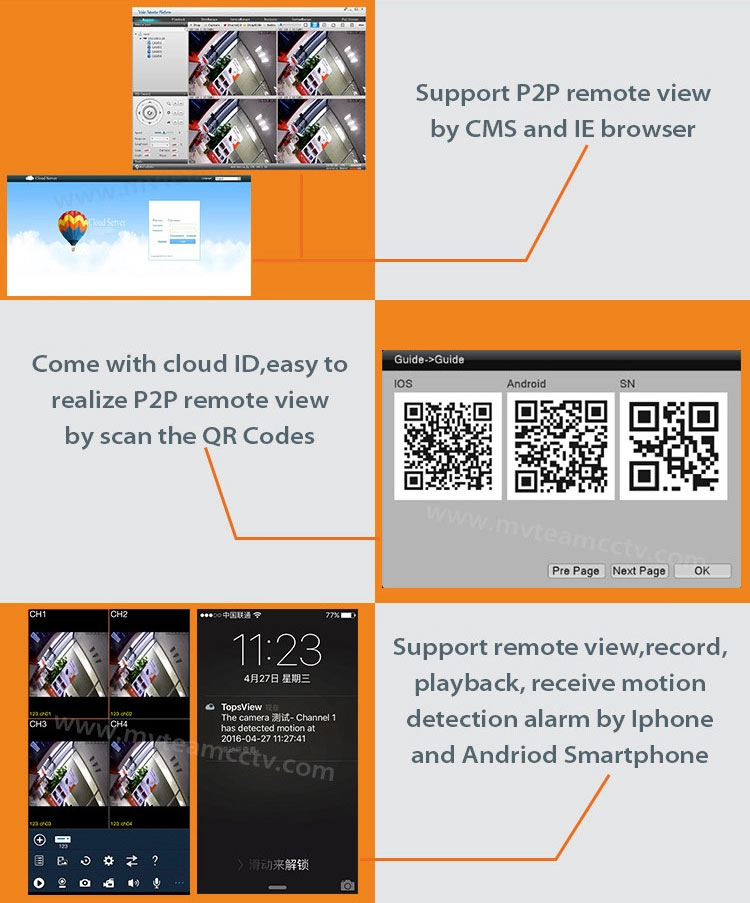

  • Support:Audio,Alarm, PTZ control,P2P Remote view
  • SATA: 4pcs; USB Port: high speed 2 pcs
  • languages:28 kinds

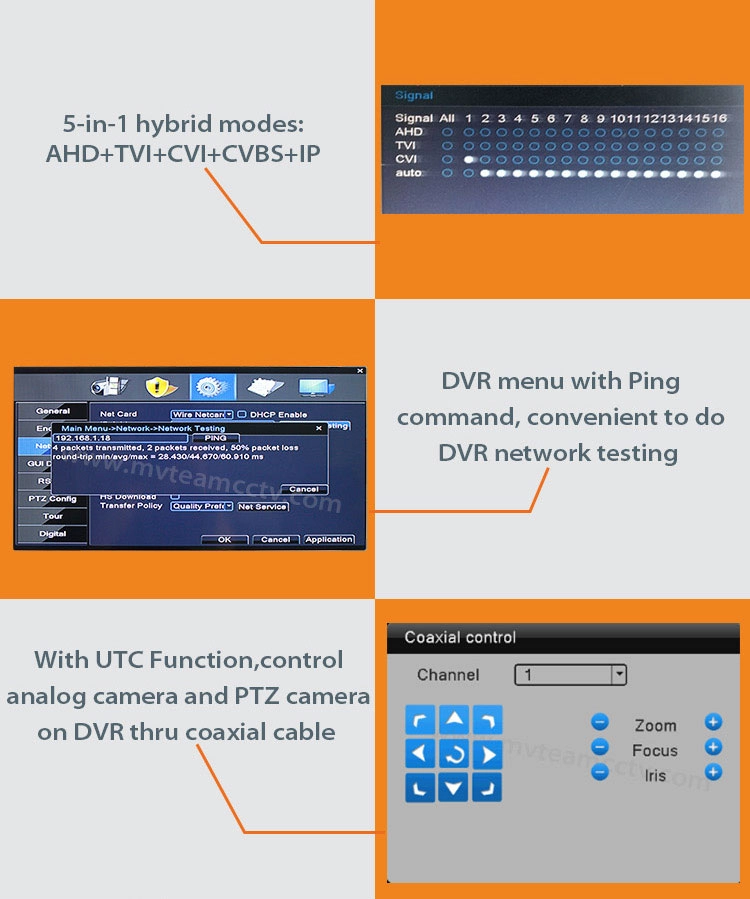

  • Hybrid modes:AHD,CVBS,IP
32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder(62B32H80H)
32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)
32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)
32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)
32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)
32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)



32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)

1.AHD:32CH 1080N@20fps recording,
   8CH 1080N playback;
2.HVR:16CH 1080N@25fps Analog + 16CH 1080P@25fps IP recording,
   8CH 1080P@25fps playback;
3.NVR:32CH 1080P@25fps IP recording,
   8CH 1080P@25fps playback
4.Support digital zoom,P2P Remote view
5-Alarm: 4ch input, 1ch output
6-Audio:16ch input

Model

62B32H80H

Compression

H.264 Standard compression

Operation

Embedded  Linux

Image  coding-control

Image edit adjustable,both changable and fix stream optional

Dual stream

Can be set up in each channel

Monitor image quality

1080N 960*1080

Image dynamic detection

Multiple detection areas in each channel

Video framerate

AHD:32CH 1080N@20fps recording;NVR:32CH 1080P@25fps IP recording

Image playback quality

AHD 8CH 1080N playback, 8CH 1080P@25fps playback

 Video mode

Support manual, automatic, dynamic monitoring, alarm trigger video mode

Backup mode

U disk, USB portable disk, USB burn, Network storage and backup

Operate mode

Mouse, Remote controller,Front Panel Control

login locally

admin and password

Save recording

local hard disk and network

External interface

Video input

32*1080N 20FPS/CH AHD, 32*1080N 25FPS/CH NVR

Audio input

16×RCA

Network interface

10M/100M base-T Ethernet (RJ-45)

USB connect port

2 x USB 2.0

RS485

RS485*1

Alarm input

4ch input

Alarm output

1ch output

Internal HDD

4 SATA HDD port

Maximum capacity

Maximum 4TB each SATA

Cell phone monitoring

Support Window Mobile, iPhone,iPad, Android

Power

12V/4A

DVR size

440(L)*380(W)*70(H)mm

Weight

<5.5kg(without HDD)


32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)
32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)

32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)
1-Does the dvr come with hard disk?
The DVRs don't come with hard disk,but we also
2- How to increase recording time?
a.Install more hard disks
b.set the dvr to motion detection record
c.reduce the recording resolution and frame rate
3-Does the DVR support P2P?
Yes,the dvr come with cloud id,support P2P remote view on mobile phone and computer.
4-what's the mobile phone view app of the dvr?
The mobile phone app is "Topsview"
5-What's the resolution of your dvrs?
720P, 1080N (1080H), 1080P optional

32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)

32CH 1080N AHD CVBS IP 3-in-1 Hybrid DVR CCTV Recorder( 62B32H80H)
