Low price on infrared Dome cute HD AHD CCTV camera for indoor use

Low price on infrared Dome cute HD AHD CCTV camera for indoor use

  • Model Number: MVT-AHD30A
  • Type: AHD Camera
  • Definiton:720P/1024P optional
  • Lens: 3.6mm,fixed
  • IR leds: 3rd generation LED Array
  • IR Distance: 15m
  • Bracket: 3-Axis bracket with cable built in

Main Features:

• 1.0M/1.3M/2.0M pixel full real time optional,Highest resolution 1080P
•follow HD and CVBS video standard
•6mm(M12) fixed Lens
•Water Resistant Rate:IP66

• support transmission distance above 500M under general 75- 3 coaxial cable without loss

• High-speed, long-distance, real-time transmission
• support OSD menu
• with ICR switching , to achieve Day and Night monitoring

•Used genuinely imported 3rd generation IR LEDs and megapixel high definition lens, these cameras have been featured as great performance in color restoration,image definition and night viewing.





Application Places:
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.




Model

MVT-AHD30A

MVT-AHD30N

Sensor

1/4" CMOS pixelplus

1.0M/ 720P OV9712

1/4" CMOS pixelplus

1.0M/ 720P AR0141

SIGNAL

PAL / NTCS

Video Output

HD-AHD/CVBS

Effective Pixels

1280(H)*720(V)

1280(H)*720(V)

Min. Illumination

0.01Lux F1.2

Shutter

4/25s~1/45,000s

Synchronization

Internal

Video Output

1-channel BNC HDAHD/CVBS high definition video output

BLC

optional

OSD

optional

AWB

Automatic / manual / day / night

Day/Night

Auto(ICR) / Color / B/W

Transmission Distance

Over 500m via 75-3 coaxial cable

Power Supply

DC 12V±10%

Working Environment

30°C~+60°C/Less than 95%RH(no condensation)

Power Consumption

4W MAX

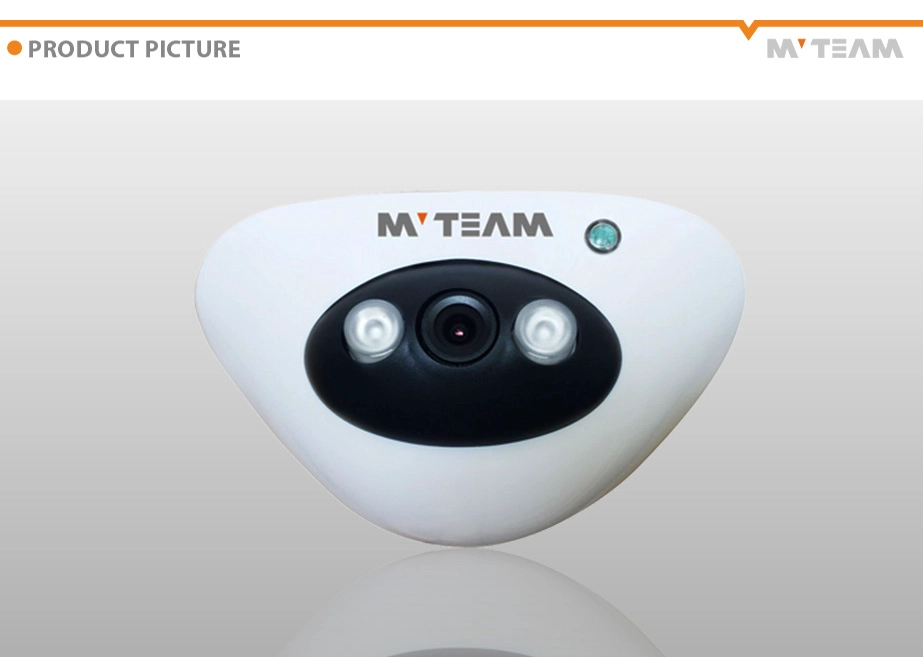

AHD Dome camera MVT-AHD30A
