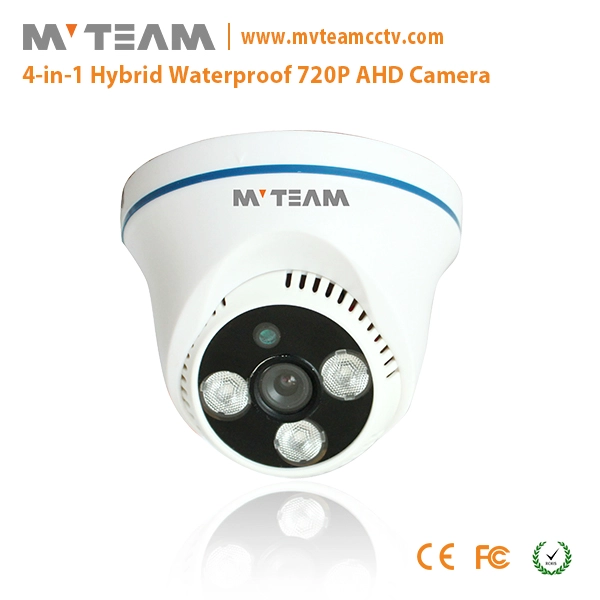

AHD Security Camera 720P 1MP | Indoor Dome Camera | CMOS 6mm Lens

AHD Security Camera 720P 1MP | Indoor Dome Camera | CMOS 6mm Lens

  • Model Number: MVT-TAH43N
  • Type:indoor Camera
  • Style: Dome Camera
  • Camera Sensor: CMOS
  • Lens: 6mm,fixed
  • IR leds: 3pcs Led Array
  • IR Distance: 35m
Hybrid AHD Camera720P Indoor Dome ahd camera,Hybrid AHD Camera, TVI CVI AHD CVBS Camera720P Indoor Dome ahd camera,Hybrid AHD Camera, TVI CVI AHD CVBS Camera


AHD Security Camera 720P 1MP | Indoor Dome Camera | CMOS 6mm Lens

720P Indoor Dome ahd camera,Hybrid AHD Camera, TVI CVI AHD CVBS Camera


720P Indoor Dome Hybrid AHD Camera With TVI CVI AHD CVBS Modes MVT-TAH22

Feature:

Four Modes, free to change

HD resolution, 1280 X 720

Supporting IR Cut, Day Night surveillance

Equipment with HDI8901 ISP Processor

Low Price and mutiply function


 Model

MVT-TAH43N

Main Chipset

HDI8901 ISP

 Sensor

1/4'  CMOS AR0141 1.0MP/720P  Low Illumination

 SIGNAL

 PAL / NTCS

Lens & IR Distance

Fixed 6.0mm / IR 35m,3 Led Array Leds

 Video Output

1 Channel HD-TV, HD-CVI, HD-AHDCVBS (Switch By OSD Menu)

Effective Pixels

TVI: 1280(H)*720(V)

 CVI:1280(H)*720(V)

AHD: 1280(H)*1024(V)

CVBS:1000TVL

 Min. Illumination

0.01Lux F1.2

 Shutter

4/25s~1/45,000s

 Synchronization

 Internal

BLC

optional

 OSD

Supported

 AWB

Automatic / manual / day / night

 Day/Night

Auto(ICR) / Color / B/W

 Transmission Distance

 Over 500m via 75-3 coaxial cable

 Power Supply

 DC 12V±10%

 Working Environment

 30°C~+60°C/Less than 95%RH(no condensation)

 Power Consumption

4W±10%

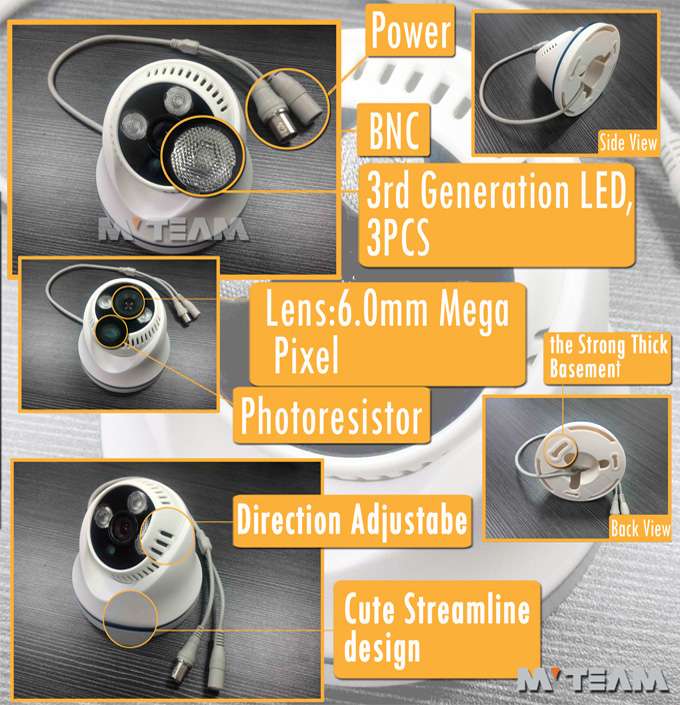

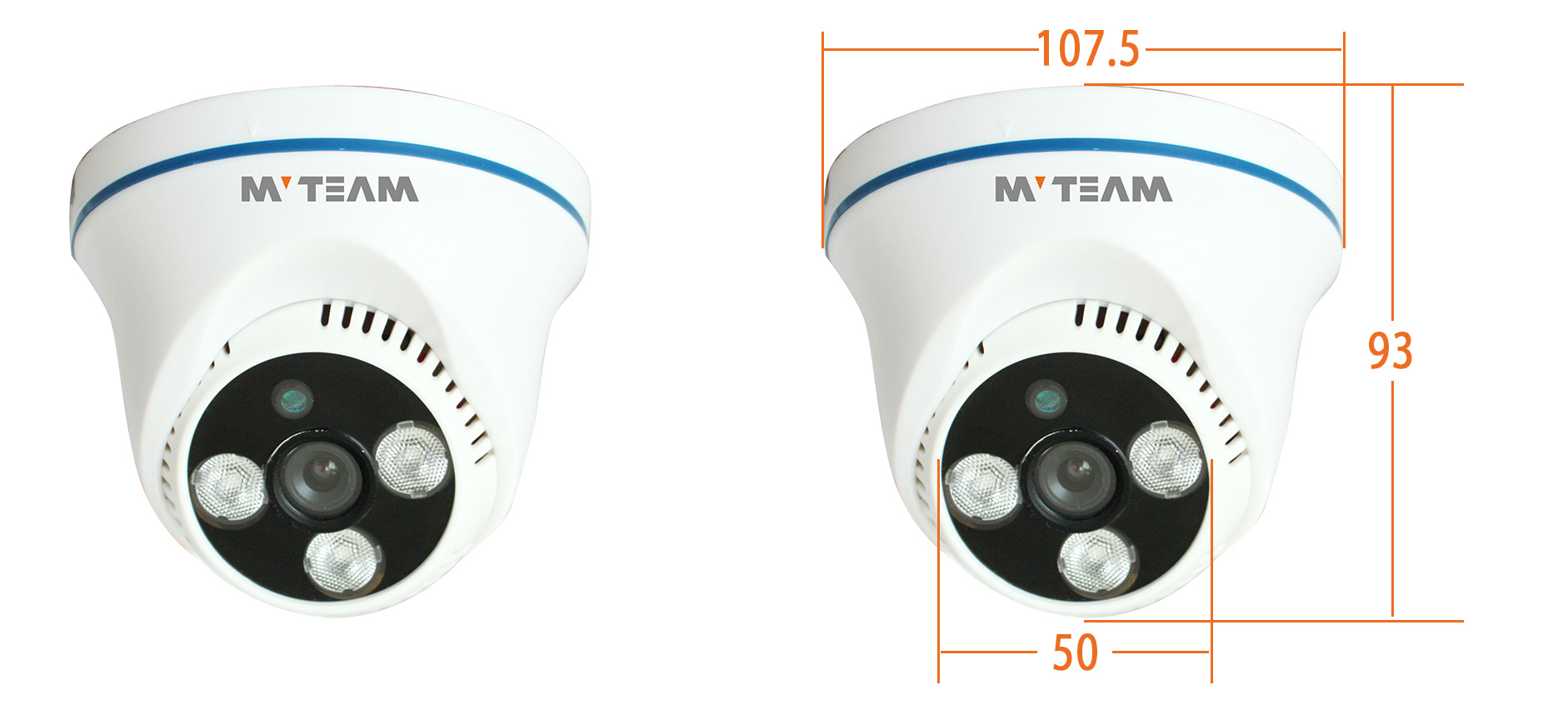

IR Cut Night Vision Hybrid Security Camera With TVI CVI AHD CVBS Analog Modes MVT-TAH43N

IR Cut Night Vision Hybrid Security Camera With TVI CVI AHD CVBS Analog Modes

HD/TVI/CVI/CVBS, how to Switch?



1.By the OSD Menu, UP is AHD, Down is CVI,Left is TVI,Right is CVBS

2.Hold the Direction Button for FIVE Seconds to Switch



Warning:Make sure power off when Switch the second time

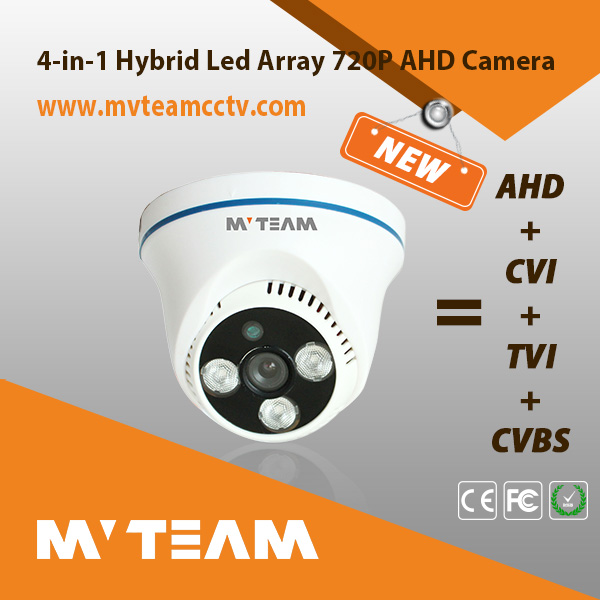

720P Indoor Dome Hybrid AHD Camera With TVI CVI AHD CVBS Modes MVT-TAH22

 720P Indoor Dome Hybrid AHD Camera With TVI CVI AHD CVBS Modes MVT-TAH22

720P Indoor Dome Hybrid AHD Camera With TVI CVI AHD CVBS Modes MVT-TAH22

MVTEAM AHD Advantage

For more about AHD Products welcome to Visit FAQ
