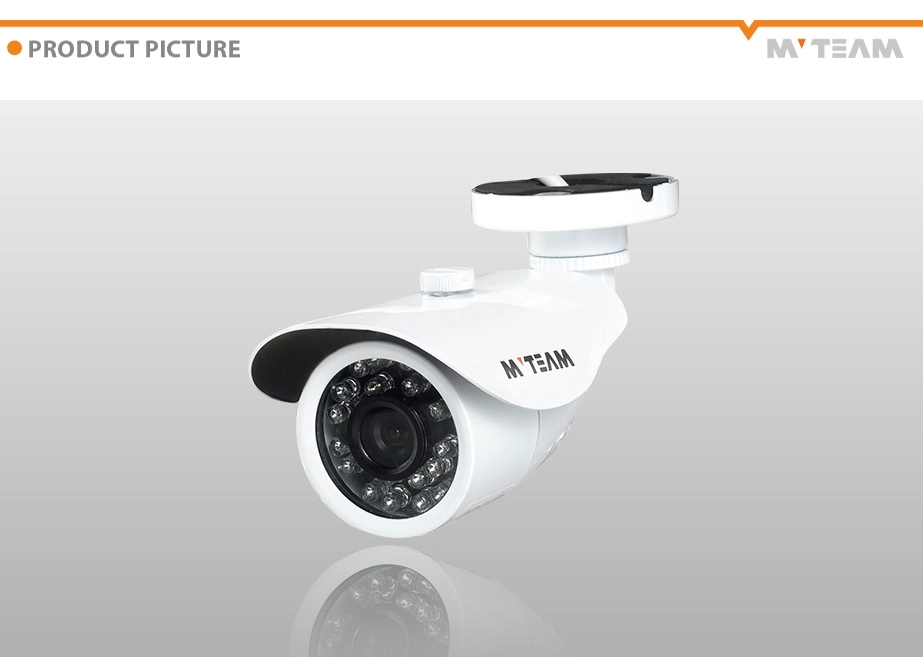

720P 1024P 1080P Outdoor Waterproof HD AHD Camera
- Model Number: MVT-AH11
- Type: Digital Camera
- Style: Waterproof Outdoor
- Camera Sensor: CMOS
- Definiton: 720P / 1024P optional
- Color: Gray and White color optional
- Lens: 6mm, fixed
- IR leds: 36pcs
- IR Distance: 30m
- Bracket: 3-Axis bracket with cable builtin
Main Features:• 1.0M/1.3M/2.0M pixel full real time optional,Highest resolution 1080P
•follow HD and CVBS video standard
•with 6-22mm(M12) vari-focal Lens
•Water Resistant Rate:IP66
• support transmission distance above 500M under general 75- 3 coaxial cable without loss
• High-speed, long-distance, real-time transmission
• support OSD menu
• with ICR switching , to achieve Day and Night monitoring
•Used genuinely imported 3rd generation IR LEDs and megapixel high definition lens, these cameras have been featured as great performance in color restoration,image definition and night viewing.
| Model | MVT-AH11T | |
| Sensor | 1/3” CMOS(AR0130+NVP2431H ) 1.3M/1024P,with IR CUT | |
| SIGNAL | PAL / NTCS | |
| Video Output | HD-AHD/CVBS | |
| Effective Pixels | 1280(H)*1024(V) | |
| Min. Illumination | 0.05Lux @Color,0.01Lux B/W | |
| Shutter | 4/25s~1/45,000s | |
| Video Frequency | 1280×1024@50 fps;1280×1024@60 fps | |
| Synchronization | Internal | |
| Video Output | 1-channel BNC HDAHD/CVBS high definition video output | |
| BLC | optional | |
| OSD | optional | |
| AWB | Automatic / manual / day / night | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Transmission Distance | Over 500m via 75-3 coaxial cable | |
| Power Supply | DC 12V±10% | |
| Working Environment | 30°C~+60°C/Less than 95%RH(no condensation) | |
| Power Consumption | 4W MAX | |
