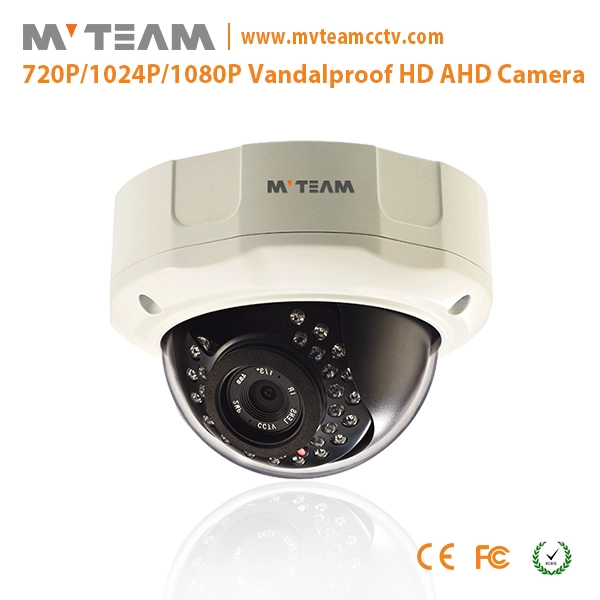

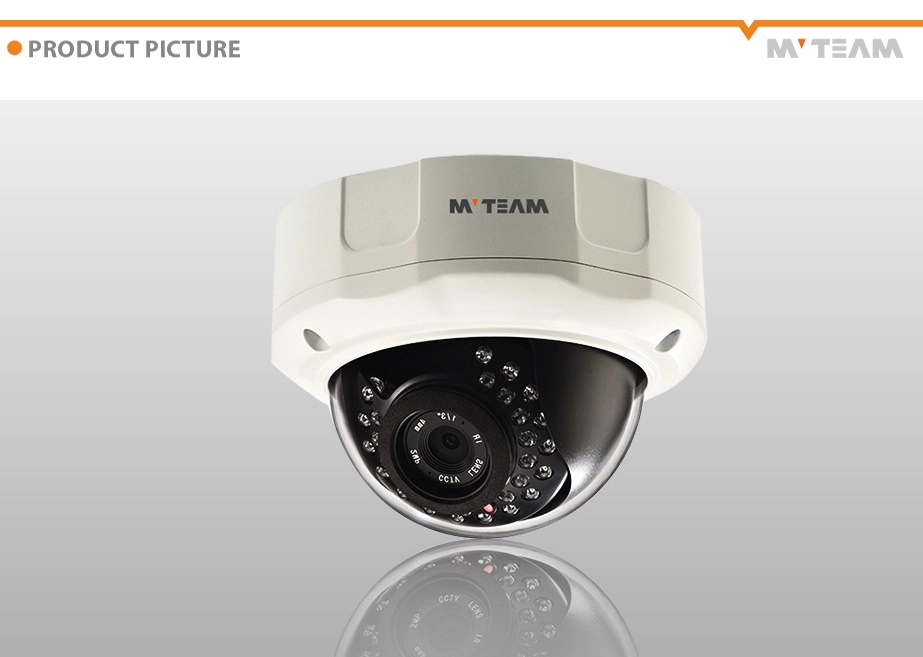

720P Varifocal Lens vandal proof Dome Camera
- Model Number: MVT-AH26A
- Type: HD Analog Camera
- Style: Vandalproof
- Camera Sensor: CMOS
- Definiton:720P/1024P/1080P optional
- Lens: 2.8-12mm,fixed
- IR leds: 36pcs
- IR Distance: 30m
- OSD:Optional
Main Features:
*1MP/1.3MP/2MP AHD Cameras avilable
* AHD-CVI-TVI-CVBS 4-in-1 Cameraavailable
* OSD Menu optional( D-WDR ,BLC functionetc)
* Can be used as CVBS Camera with free switch Button
* Transmit Over Coaxible Cable 500m
* Support Balun transferring
Application Places:
Apply to replace the old analog system and new projects in the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.
| Model | MVT-AH26A | |
| Sensor | OV9712+NVP2431H | |
| SIGNAL | PAL / NTCS | |
| Video Output | HD-AHD/CVBS | |
| Effective Pixels | 1280(H)*720(V) | |
| Min. Illumination | 0.05Lux @Color,0.01Lux B/W | |
| Shutter | 4/25s~1/45,000s | |
| Video Frequency | 1280×1024@50 fps；1280×1024@60 fps | |
| Synchronization | Internal | |
| Video Output | 1-channel BNC HDAHD/CVBS high definition video output | |
| BLC | optional | |
| OSD | optional | |
| AWB | Automatic / manual / day / night | |
| Day/Night | Auto(ICR) / Color / B/W | |
| Transmission Distance | Over 500m via 75-3 coaxial cable | |
| Power Supply | DC 12V±10% | |
| Working Environment | 30°C~+60°C/Less than 95%RH(no condensation) | |
| Power Consumption | 4W MAX | |

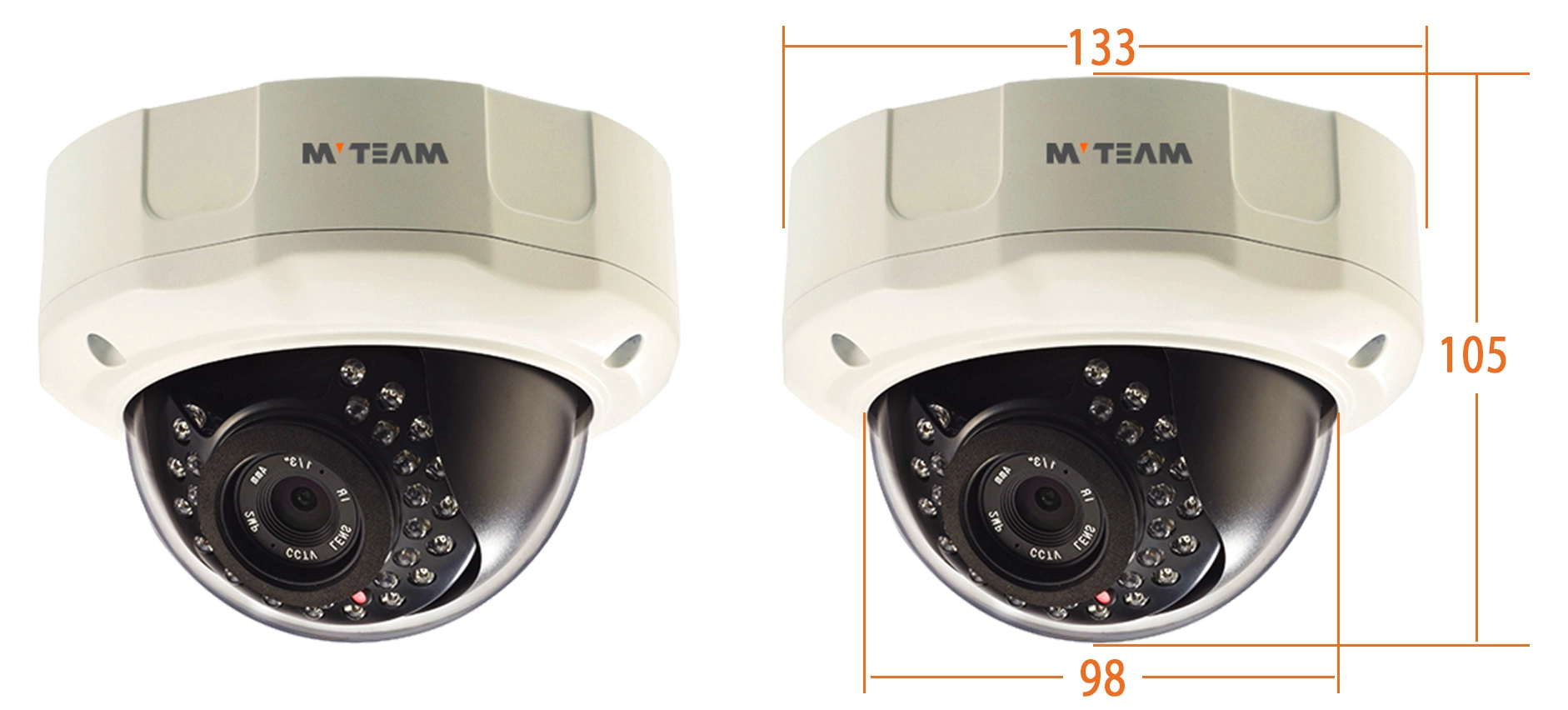

Unit:mm
- Other Products

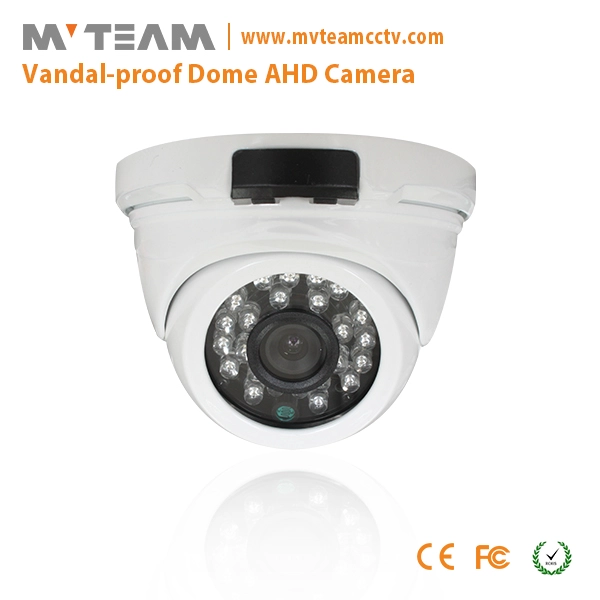

.jpg.webp "China Vandalproof Metal Housing Dome 720P,1024P 1080P AHD Camera with fixed lens(MVT-AH34) manufacturer")

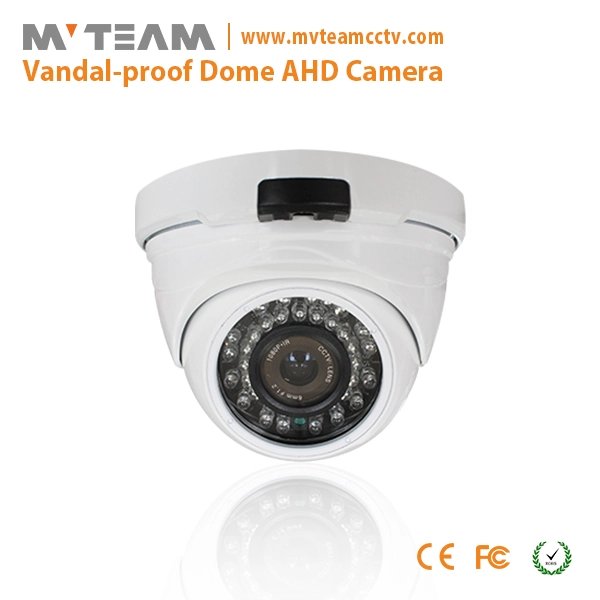

.jpg.webp "China Upgrade Waterproof Dome Metal Housing AHD Camera with 2.8-12mm Vari-focal Lens(MVT-AH23) manufacturer")

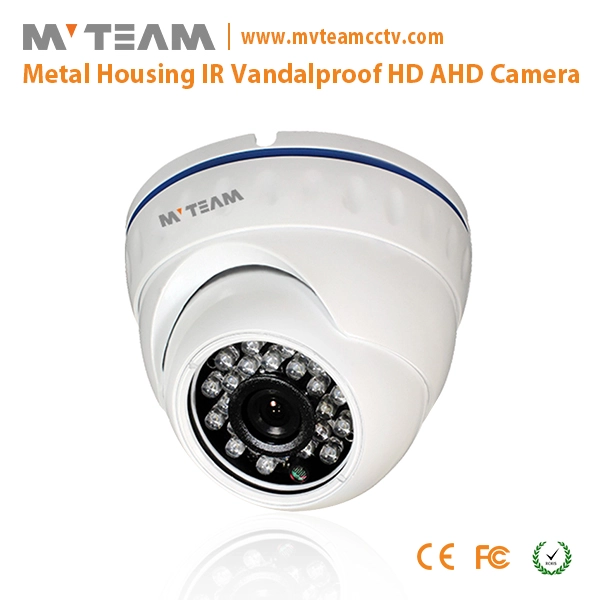

.jpg.webp "China Mega Pixel Indoor Outdoor Vandal-proof Dome Video Surveillance Cameras(MVT-AH23) manufacturer"){kind=tracking}
