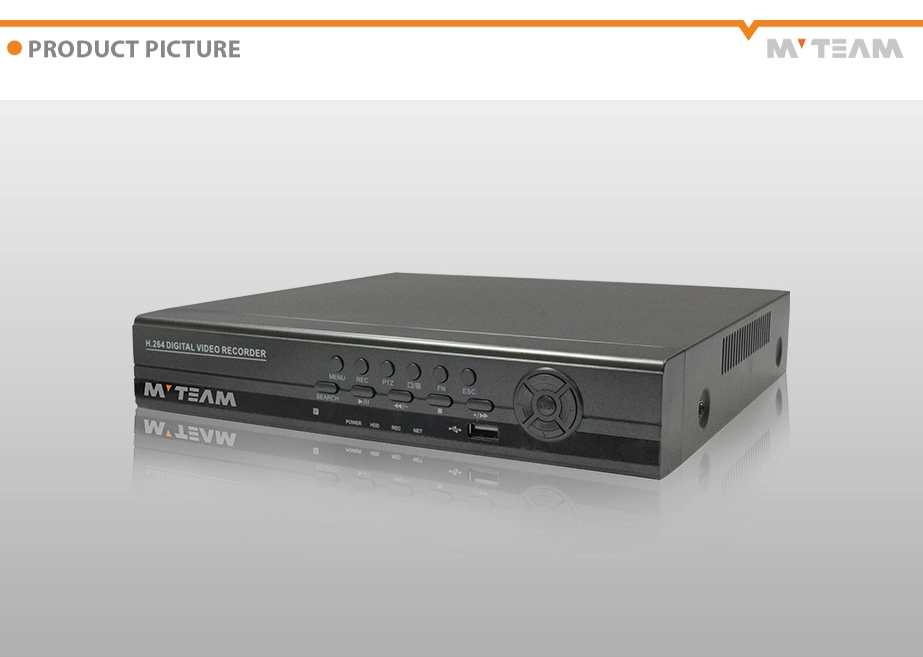

8ch suveillance new products network HD AHD DVR

8ch suveillance new products network HD AHD DVR

  • Model Number:MVT-AH6208H
  • Resolution: 720P
  • Channel: 8CH
  • Video Output: BNC/HDMI/VGA
  • Display&Record Resolution:8*720P
  • HDD: Support 1pcs sata hdd
  • Remote View:support P2P on mobile phone and PC
  • Mobile phone view:support Iphone,Android,Blackberry,Windows,Symbian
  • 240(L)*260(W)*60(H)mm

Hybrid camera 720p

1.support P2P function via IE, QMEYE CMS in PC and iPhone & Android mobile phone.
2.QMEYE software can support record the video in mobile phone and remote playback the recorded video in DVR
3.One Client Software can manage mutiple security cameras
4.Support Soft update, Support 20 Languages

hybrid camera specifications

Model MVT-AH6208H
Compression H.264 Standard compression
Operation Embedded  Linux
Image coding-control Image edit adjustable,both changable
and fix stream optional
Dual stream Can be set up in each channel
Monitor image quality 720P(1280*720)
Image dynamic detection Multiple detection areas in each channel
Video framerate 720P @25FPS/CH(PAL) / 720P@30FPS/CH(NTSC)
Image playback quality 720P
 Video mode Support manual, automatic, dynamic monitoring,
alarm trigger video mode
Backup mode U disk, USB portable disk, USB burn,
Network storage and backup
Operate mode Mouse, Remote controler,Front Panel Control
login locally admin and password
Save recording local hard disk and network
Video input  PAL:720P@25/30FPS Support 50/60FPS
Audio input 4CH
Video output 1*BNC,1*VGA,1*HDMI
Audio output   1CH AV Port
Network interface 10M/100M/1000M base-T Ethernet (RJ-45)
USB connect port 2*USB 2.0
RS485 RS485*1
Alarm input 4CH
Alarm output 1CH
Hard disk Internal HDD SATA HDD port
Maximum capacity Maximum 3TB each SATA
Cell phone monitoring Support Window Mobile, iPhone,iPad, Android,
Blackberry,Symbian and 3G
Power 12V/3A
Operating Temperature -10℃~+55
Operating  humidity 10-90
DVR size  240(L)*260(W)*60(H)mm
Weight <2.5kg(without HDD)


      P2P Function Advantages:

           *Don't need do stable IP address setup

           *Don't need do DDNS setup

           *Don't need do Router setup

           *Reducing your after-sales cost
