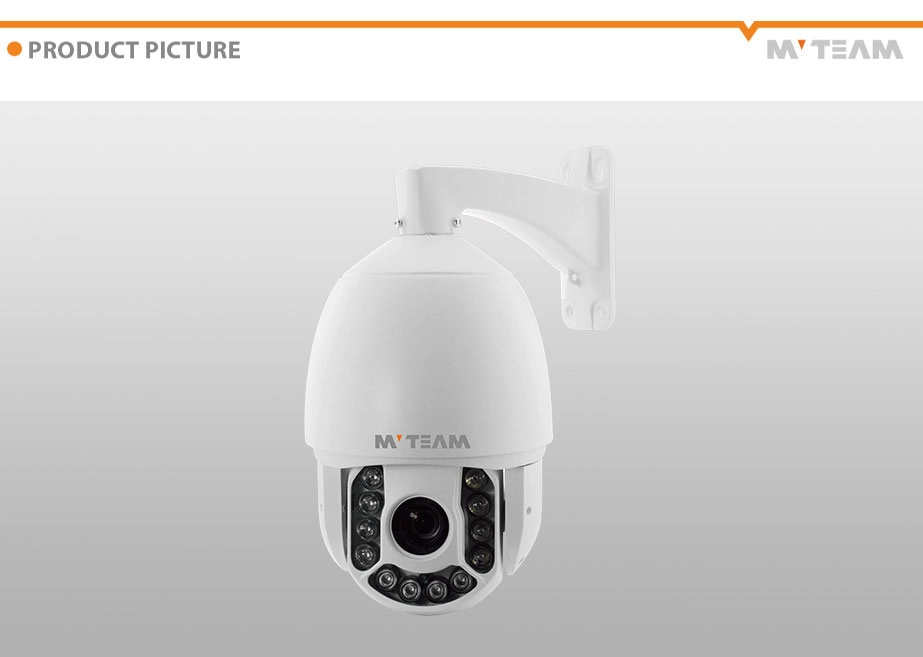

Lightening design outdoor 7 speed dome camera 20X 720P 1080P AHD PTZ camera MVT AHO901

Lightening design outdoor 7 speed dome camera 20X 720P 1080P AHD PTZ camera MVT AHO901

  • Model Number: MVT-AHO901
  • Type: AHD PTZ
  • Style: Waterproof Outdoor
  • Camera Sensor: CMOS
  • Definition:720P/1080P optional
  • Waterproof:Yes
  • Optical Zoom:20times
  • Size: 7"
  • IR Distance:more than 100m

1)Built-in OSD menu, can change information and parameter of dome through menu,
  also can set and call presets, tour, scan, pattern, camera mode and display name etc.
2)Horizontal Speed(0.1°~220°/s),  Vertical Speed(0.1°~180°/s)
3)IR range:more than 100 m, constant current control, synchronous switch
4)Screen display position of pan/tilt, zoom, temp inside, direction lable, time and date.
5)128 presets (titles can be set); Tour is based on presets, speed & park time of presets can be set.
6)Pan 360° continuously, tilt 90° rotation, auto-flip, manual speed: 0.4°~320°/s.
7)8 programmable zones, 4 pattern, and each record time is not less than 180s.
8)4 scan, support scan between left and right limite at an appointed speed.
9)Auto scan function, and at the same time, dome can still zoom, and run tilt
10)Humanize focus and speed proportion.
11)Park action function, can auto-call presets or start-up tour, pattern and scan after dome idle for a period of time
12)Real time function, preset, scan etc action runs based on time sections pre-setting by OSD menu.
13)Temperature display function, can survey the temperature inside of dome.
14)Communication (support Rs485, Manchester, BI-PHASE code, coaxial video control).
15)Built-in multi-protocols and fully compatible with PELCO-D、PELCO-P
16)IP66 all-day protection cover, built-in constant temperature device.
17)Built-in TVS4000V lightning-proof, surge-proof and wave-proof.

PTZ Spec
Manual speed Pan0.1°220°/s
Tilt0.1°180°/s
Preset speed 220°/s
Rotation Pan continuously 360°, tilt 090° with auto-flip
Speed Proportion As the length of focus, to auto-adjust the speed
Preset  128 preset, title can be edited
Auto-flip Tilt down 90°, with auto-flip 180°
Scan 355°programmable, 4 scan
Display zone 8 programmable zones with editable title
Decoder Built-in
Video output Female BNC ,AHD
Romote controlling RS485
Baud rate (RS485) 240048009600/19200 bps
ID range 1254
Temperature Outdoor -10℃~+60
Humidity 095%non-condensation
Protection grade IP66,  lightning-proof, surge-proof, wave-proof, all-day defend cover,
Power supply DC 12V/5A
Power consumption Outdoor 50W
Temperature  -10℃~+60
Gross weight 6.9kg
Cam Spec(20X,1.3MP)
CMOS 1/3" Sony CMOS Sensor
1305(H) × 1049(V) Approx. 1.37M pixels
OPTICS Optical x18, f = 4.7 mm ~ 84.6.0 mm
Angle Appr. 55.2°(Wide) to 3.2°(Tele)
Scanning System Progressive Scan
Min. Illumination Color : 0.5 lux , BW : 0.1lux
S/N (Y signal) 52dB
White Balance Auto
ICR Manual/Auto
DNR Auto / Off / Low / Middle / High
HLC Off / On
Defog Off / On
Max Gain Auto
IRIS Auto
FLIP Vertical , Horizontal ,Vertical-Horizontal,OFF Selectable
