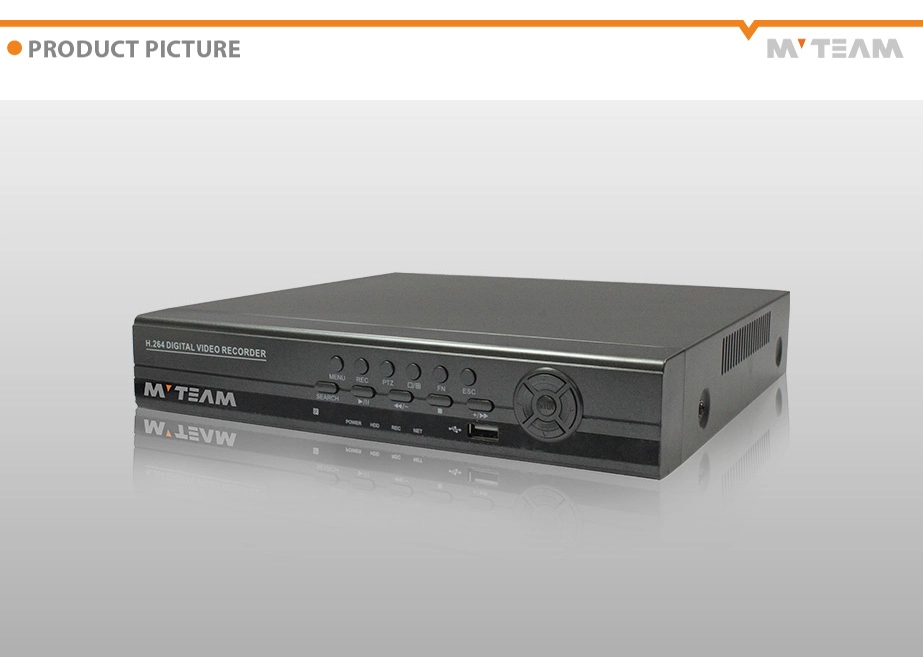

P2P security china network 4CH AHD DVR
- Model:MVT-AH6204H
- Channel:4CH
- Compression:H.264
- Resolution:720P/960H
- Support:Audio,PTZ control,3G Remote view
- Hard disk HDD:1pcs
- USB Port: high speed 2 pcs
1. High Definition Video quality 1.0MP/1.3MP
2. HD video transmission without video quality loss & delay
3. The same connection structure as original analog system without cable changing
4. AHD Camera are compatible with analog 960H/D1 DVR
5. More acceptable,with similar price as analog
|
Model |
MVT-AH6204H |
|
|
Compression |
H.264 Standard compression |
|
|
Operation |
Embedded Linux |
|
|
Image coding-control |
Image edit adjustable,both changable and fix stream optional |
|
|
Dual stream |
Can be set up in each channel |
|
|
Monitor image quality |
4*720P(AHD), 4*960H(Analog DVR) |
|
|
Image dynamic detection |
Multiple detection areas in each channel |
|
|
Video framerate |
720P 25FPS/CH AHD,960H 25FPS/CH Analog DVR |
|
|
Image playback quality |
AHD 720P 100FPS ,Analog DVR 16*960H 100FPS |
|
|
Video mode |
Support manual, automatic, dynamic monitoring, alarm trigger video mode |
|
|
Backup mode |
U disk, USB portable disk, USB burn, Network storage and backup |
|
|
Operate mode |
Mouse, Remote controller,Front Panel Control |
|
|
login locally |
admin and password |
|
|
Save recording |
local hard disk and network |
|
|
External interface |
Video input |
720P 25FPS/CH AHD,960H 25FPS/CH Analog DVR |
|
Audio input |
4×RCA |
|
|
Video output |
1*VGA,1*HDMI |
|
|
Audio output |
1*RCA,1*HDMI |
|
|
Network interface |
10M/100M base-T Ethernet (RJ-45) |
|
|
USB connect port |
2 x USB 2.0 |
|
|
RS485 |
RS485*1 |
|
|
Alarm input |
NO |
|
|
Alarm output |
NO |
|
|
Hard disk |
Internal HDD |
2 SATA HDD port |
|
Maximum capacity |
Maximum 4TB each SATA |
|
|
Cell phone monitoring |
Support Window Mobile, iPhone,iPad, Android |
|
|
Power |
12V/2A |
|
|
DVR size |
240(L)*260(w)x60(H)mm |
|
|
Weight |
2.0kg(W/O HDD) |
|
