1.3MP AHD 360 Degree CCTV Panoramic Camera(MVT-AH50)

1.3MP AHD 360 Degree CCTV Panoramic Camera(MVT-AH50)

  • Model Number: MVT-AH50
  • Type: Panorama Camera
  • Style: Dome camera
  • Camera Sensor: CMOS
  • Resolution:1.3MP/1024P
  • Lens: 1.5mm (M12) Lens
  • IR leds:27pcs×Φ5 IR leds
  • IR Distance: 15m

1.3MP AHD 360 Degree CCTV Panoramic Camera(MVT-AH50)


Main Features:

• 1.3M pixel full real time

•follow HD and CVBS video standard
•27pcs×Φ5 IR leds,15m IR Distance,Vandalproof Camera
360 Degree CCTV Panoramic Camera,with 5MP 1.5mm (M12) Lens

• support transmission distance above 500M under general 75- 3 coaxial cable without loss
• High-speed, long-distance, real-time transmission
• support OSD menu
• with ICR switching , to achieve Day and Night monitoring

•Used genuinely imported 3rd generation IR LEDs and megapixel high definition lens, these cameras have been featured as great performance in color restoration,image definition and night viewing.



Application Places
Apply to the financial, supermarket, telecommunications, government, schools, airports, factories, hotels, museums and other places of requirement of high-definition.


 Model

MVT-AH50T

MVT-AH50B

 Sensor

 1/3" CMOS pixelplus 1.3M/ 1024P AR0130

 1/3" CMOS pixelplus 1.3M/ 1024P SONY225

 SIGNAL

 PAL / NTCS

 Video Output

 HD-AHD/CVBS

Effective Pixels

 1280(H)*1024(V)

 1280(H)*1024(V)

 Min. Illumination

0.01Lux F1.2

 Shutter

4/25s~1/45,000s

 Synchronization

 Internal

 Video Output

1-channel BNC HDAHD/CVBS high definition video output

BLC

optional

 OSD

optional

 AWB

Automatic / manual / day / night

 Day/Night

Auto(ICR) / Color / B/W

 Transmission Distance

 Over 500m via 75-3 coaxial cable

 Power Supply

 DC 12V±10%

 Working Environment

 30°C~+60°C/Less than 95%RH(no condensation)

 Power Consumption

4W MAX

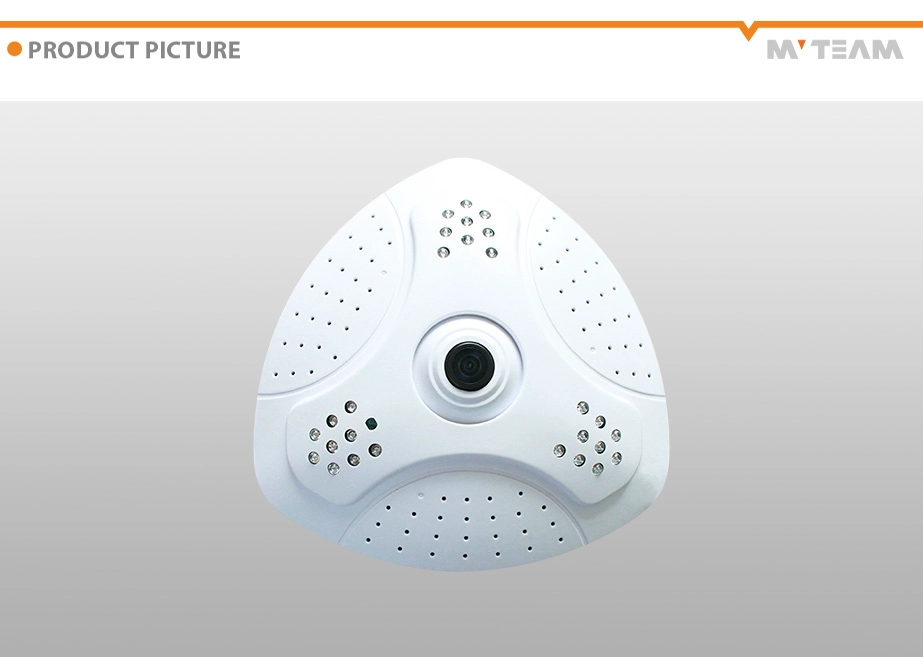

360 Degree CCTV Panoramic Camera
360 Degree CCTV Panoramic Camera Image

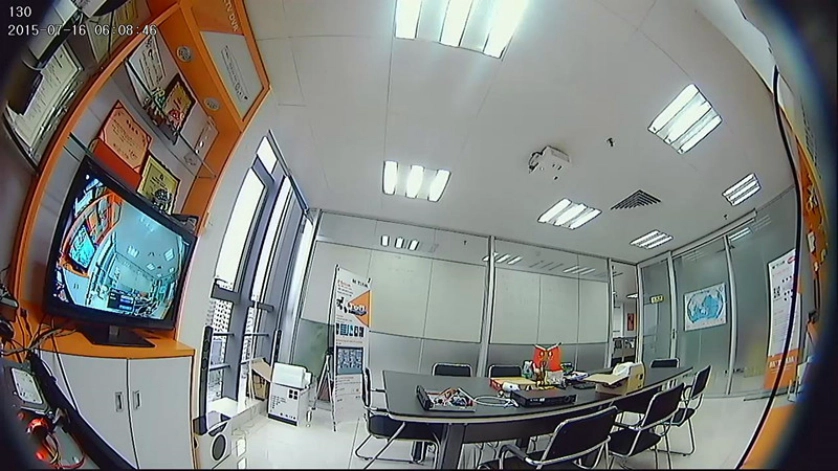

360 Degree CCTV Panoramic Camera image effect MVTEAM
