wholesale wireless IP based outdoor home video dvr security camera system(MVT-K04T)
- 1pc 4CH Wireless NVR with build in 10" inch HD LCD Screen
- NVR built-in WIFI rooting module
- 4pcs 1.0M/720P Outdoor wireless IP Cameras
- 3.6mm Lens,30m IR distance
- Plug and Play,no need connect cables
- with CE,ROHS,FCC Certificate
- wholesale wireless IP based outdoor home video dvr security camera system
wholesale wireless IP based outdoor home video dvr security camera system
Installation diagram
What's the wireless NVR Kit included?
1pc 4ch wireless HD NVR with build-in 10" inch LCD Screen and WIFI module
4pcs Outdoor HD Wireless IP Camera
4pcs 12V(DC)/2A power adaptors
1pc detailed quick installation guide manual
1pc CD come with CMS softwares and instructions
Specs of each item
1-4CH Wireless NVR
*Built-in 10" inch HD LCD Screen (resolution:1280*1024),which support 330 degree rotate,
*built-in high functional and stability wireless WI-FI rooting module,
support 802.11b/g/n protocol,150Mbps,
*HDMI output.
*Video input:4*720P;4*960P,Playback:4*960H,4*720P;
*3pcs USB interfaces, Support HDD up to 4TB,cloud technology, P2P,mouse x1
Wireless NVR Specs
Operating System
Embedded Linux OS
AV(audio/video)input
Network Video
4CH
Network video input broadbank
20Mbps
AV (audio/video) output
HDMI input
1ch,resolution:1024x768,1366x768,
1440x900,1920x1080p
AV CODEC Specification
Video Resolution
D1/720P
synch-playback
4CH
Video Control
Video/Capture mode
Maual,Time,Motion
Playback mode
Real time,Routine,Event
Backup
USB backup
Hard Disk
Type
1*SATA interface
Max Capacity
4 TB at most for each
External Interface
Network Interface
1 adaptable RJ45 10M/100M,
2 WIFI interface
USB Interface
3 USB 2.0
Network Control
Protocol
UPnP (play&plug),SMTP (email survice),PPPoE (dial-up),
DHCP (Automatically obtain an IP address), etc…
Others
Power
DC12V3A
Power Consumption (W)
≤5W(Without HDD)
Operate Temperature (°C)
-10℃~+55℃
Working Humidity (%) RH
10%~90%
Size
257mm(W)×210mm(V)×45mm(H)
Weight(excluding HDD)
≤1Kg
MVTEAM Wireless NVR Menu:
MVTEAM wireless nvr remote view on computer and smartphone:
2-720P Outdoor Wireless IP Camera
*1.0M/720P wireless IPC
*with IR CUT
*3.6mm Lens
*3pcs 3rd generation LED Array,30m IR Distance
*Waterproof IP66
3-12V(DC)/2A Power adaptor for wireless IP Camera
4-CD and quick installation guide manual

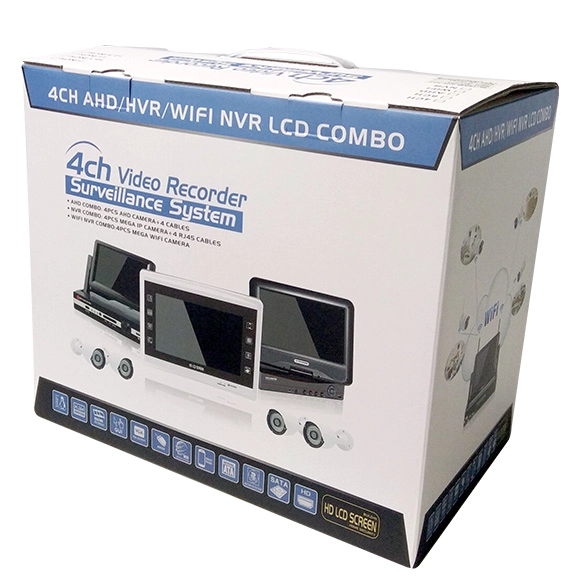

5-Package
