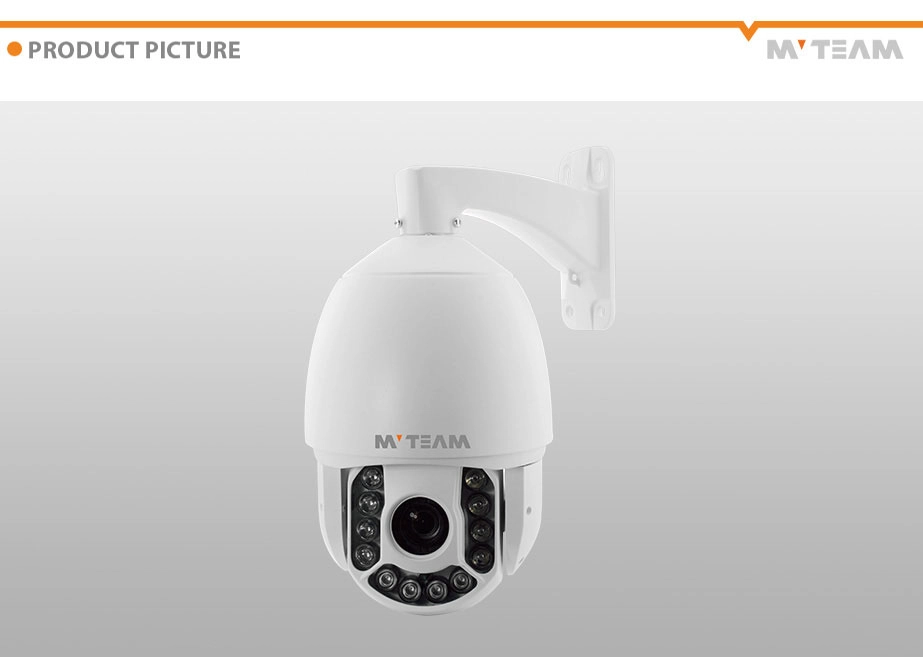

1080P IR 20X HIGH SPEED DOME MVT NO902

1080P IR 20X HIGH SPEED DOME MVT NO902

  • Model Number: MVT-NO902
  • Type: PTZ IP
  • Style: Outdoor Waterproof
  • Camera Sensor: CMOS
  • Definition: 1080P
  • IR distance: 120m
  • Optical Zoom: 30X

1080P, 1 / 2.8 "SONY Ex-view 2M CMOS, 20x optical zoom, 4.7 mm ~ 94.0 mm, DWDR

1) IR range 7.0 "speed dome: 120m
Max.25 / 1080p @ 30fps

2) 368 IT solution, H.264 & amp; amp; MJPEG dual stream encoding

3) DWDR, Day / Night (ICR), DNR (2D & amp; amp; 3D), Auto iris, auto focus, AWB, AGC, BLC

4) Multiple network monitoring Web viewer, CMS

5) Max speed 300 ° pan, pan-end / 0 ° ~ 360 ° continue, tilt range: 0 ° ~ 90 ° flip

6) Preset: 128; 4 Automatic scan path Reason

7) Surge & amp; amp; Wave Protection

8) Operating temperature: -10 ℃ ~ 50 ℃

9) sealed

1080P IR 20X HIGH SPEED DOME MVT NO902
Pan continuous 360 ° rotation, 90 ° tilt rotation with auto-flip
Horizontal Speed ​​(0.1 ° ~ 50 ° / s), the vertical speed (0.1 ° ~ 50 ° / s)
IR range: over 100 m, constant current control, synchronous switch
Humanize focus and speed proportion
128 presets (titles can be together);
Tower is based on presets, speed & amp; amp; preset park time can be configured.
4 scanner, press scan between left and right limited to a nominated limit speed.
presets, tour, scan, pattern, camera mode and display name etc.
park action function, can auto-call presets or start-up tour, pattern and scan after dome idle for a period of time
Memory memory function, built-in memorizer which can store the settings of the camera unit & amp; amp; PTZ functions.
Viewing function of pan / tilt position and zoom, a port for supplying motion tracking and data processing
Built-in TVS wave proof.
SPEC Ethernet
System structure Embedded LINUX RTOS, dual core 32 bit DSP (TI DaVinci DM368)
Pure hardware compression, watchdog, 32M 128M DDR2 Flash.
Video compression H.264 compression, dual stream (adjustable 0,1-6Mpbs)
Frame Rate 2.0 @ 25fps megapixel (real time), full support 1-25 fps (adjustable);
Image output Main Flux: 1920 × 720 × 1080.1280;
Under Stream 640 × 360 × 480 × 270 352 × 288 320 × 240 352 × 192 320 × 192 288 × 192 256 192;
Network Function Warning Center and links supported image pop-up (after motion detection and IO alarm)
Protocols: RTSP / FTP / PPPoE / DHCP / DDNS / NTP / UPnP
Configure WEB OSD and supported, real-time recording, transmission and reading, downloading.
CAMERA SPEC
Sensor Sony 1/3 "322 cmos
Resolution 1920 × 1080
Scanning Progressive
Angle 58.16 ° -2.9 ° (Wide-Tele)
Lens 4. Focal Length 7mm ~ 94mm
Zoom 20x optical zoom
Min. Lighting 0.02LUX
Iris Car
White balance Car
IRCF Controls * Auto / Manual (soft)
Focus Length ~ 1.0m (tele) ~ 0.01 m (width)
Signal Process The digital signal Processor DSP-8 system
White balance * Auto / Manu (R Gain / B Gain, Level: UP DOWN ~)
IRCF Controls * Auto / Manual (soft)
specification
Ethernet 10Base-T, / 100Base-TX RJ45 Connector
Max Imagine Resolution 1920 * 1080p
Framework 25/30 fps
Image compression H.264 / MJPEG
Turbofan Support
ONVIF ONVIF 2.4 Ver.
Protocols TCP / IP.HTTP.DHCP.PPPoE.UDP.RTP / RTCP.DNS.DDNS .UPnP.SMTP
Speed ​​manual Pan (0.2 ° ~ 50 ° / s)
Tilt (0.2 ° ~ 50 ° / s)
Preset speed 200 ° / S
Rotation Continuously 360; tilt 0 ~ 90 ° with auto-flip
Proportion speed Human Oriented- Focal length / speed adaptation
Preset  128 predefined, As can be edited
Auto-flip Downward inclination of 90 °, with self-flip 180 °
Scanning 355 ° programmable 4scan
Model 4 models
Power up Action Auto restore PTZ and lens status after a previous power failure
Slowed movement Activate Preset / Pan / Scan / tour / Motif if there is no command in the specified period
Task time Automatic activation Preset / Pan / Scan / Tour / Pattern by preset time
OSD Built-in
Privacy  Support
Temperature  -20 ℃ ~ 60 ℃
Moisture 0 ~ 95% (non-condensing)
Degree of protection IP66, lightning-proof, surge-proof
Energy consumption AC24V / 3A 40W (IR sure)
Net weight 6.5 kg
