MVTEAM 2016 Featured CCTV Camera Appearance

Grace Liu www.mvteamcctv.com 2016-02-24 11:45:17
With more than 10 years experience in CCTV business,we can accurately predict a new cctv camera appearance will be popular or not.
In 2016,MVTEAM chose below appearance as the featured products.It's with small size,3-Aixs braket and waterproof design which is fit for both indoor and outdoor installation.

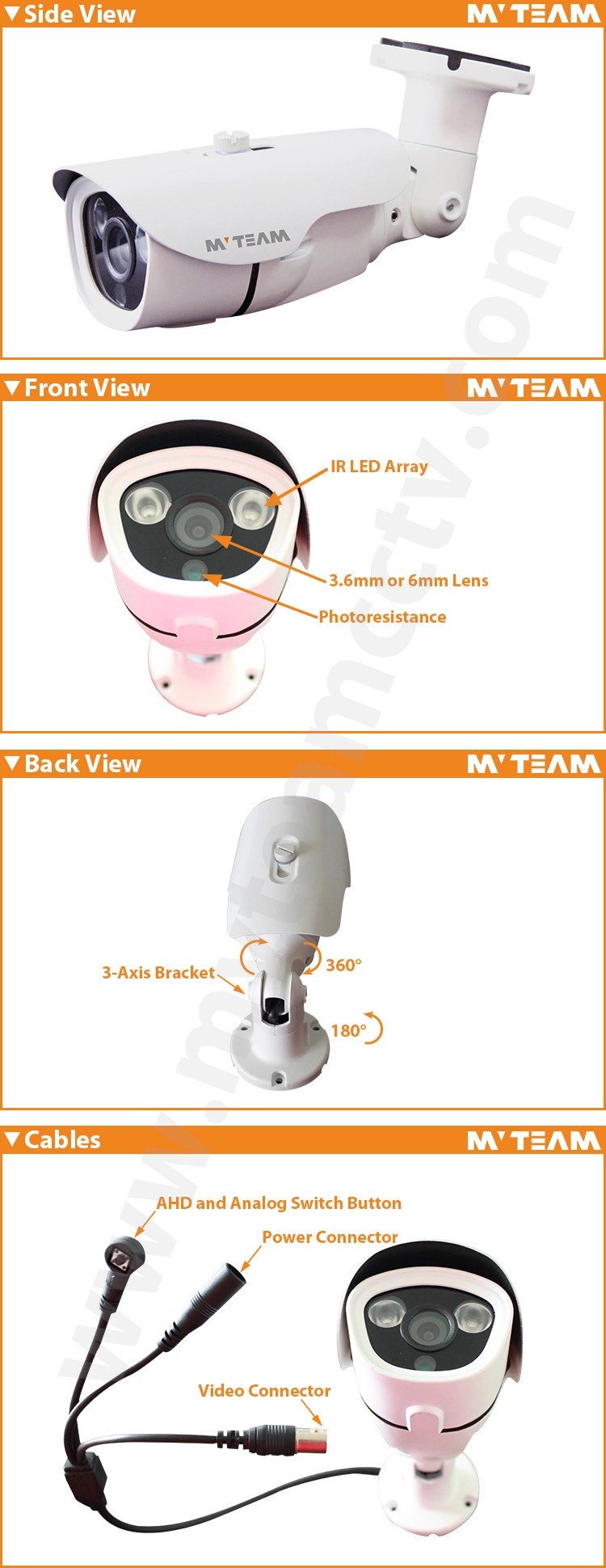

Details pictures are as below:
Hot CCTV Camera appearance

This appearance can be assembled as AHD Camera or IP Cameras.Following are the optional solutions:
Optional AHD Solutions
Model No. Specs
MVT-AH14A with 6mm(M12 ) Lens,2 pcs 3rd generation LED Array,
30m IR Distance,triaxial bracket with cable built-in
1/4” CMOS(OV9712+NVP2431H) 1.0M,
with IR CUT
MVT-TAH14N 1/4” CMOS(AR0141+HDI8901) 1.0M,
TVI-CVI-AHD-CVBS 4-in-1 Camera
MVT-AH14N 1/4” CMOS(AR0141+NVP2431H  1.0M,
Low Illumination,with IR CUT
MVT-AH14T 1/3” CMOS(AR0130+NVP2431H   1.3M,
with IR CUT
MVT-AH14B 1/3” CMOS(SONY225+NVP2431H )1.3M,
with IR CUT
MVT-AH14R 1/3” CMOS(AR0237+NVP2441H )2.0M,
with IR CUT
MVT-AH14P 1/3” CMOS(SONY322+NVP2441H )2.0M,
with IR CUT

Optional IP Camera solutions
Model No. Resolution Chipset Audio LENS Extension Video
 Cable with POE
WDR H.264
MVT-M1420 720P 1280*720 Hi3518E+OV9712 YES 3M Pixels
6mm Lens
YES 30m DWDR H.264
MVT-M1424C 1024P 1280*1024 Hi3518E+Aptina130 YES YES DWDR H.264
MVT-M1424 1024P 1280*1024 Hi3518C+SONY IMX238 YES YES DWDR H.264
MVT-M1480 1080P  1920*1080 Hi3516C + SONY IMX322 YES YES DWDR H.264
MVT-M1492 2592*1520(15FPS)
Hi3516D + OV4689 YES YES H.265

If you are interseted in this appearance AHD Camera or IP Camera,welcome to contact us for sample test.
