What settings of AHD cameras can be realized by UTC function?
Judy
www.mvteamcctv.com
2017-01-06 16:19:04

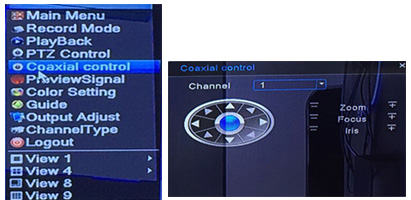

Before, if want to do settings of AHD cameras,need add OSD menu. Now all MVTEAM AHD cameras can support UTC function except 1.3MP AHD Camera(AR0130+NVP2431H). And it can be controlled by 5 in 1 hybrid DVR.What settings of AHD cameras can be realized by UTC ? Here we’ll have a full view of UTC function.The menu of AHD camera can come out by "Coaxial control"on DVR and can do settings by the buttons:

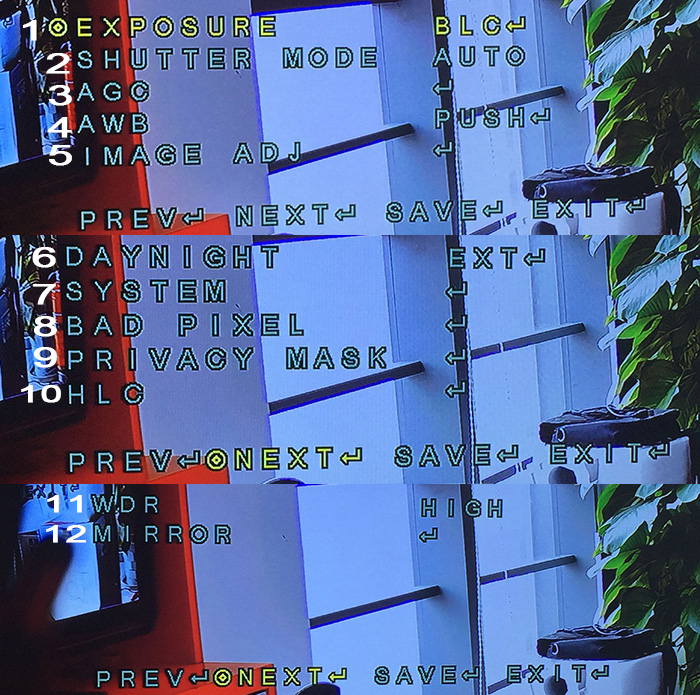

Following settings of AHD cameras can be realized thru UTC function:
Here we emphatically introduces the function 9 "Privacy Mask" and function 10 "HLC".

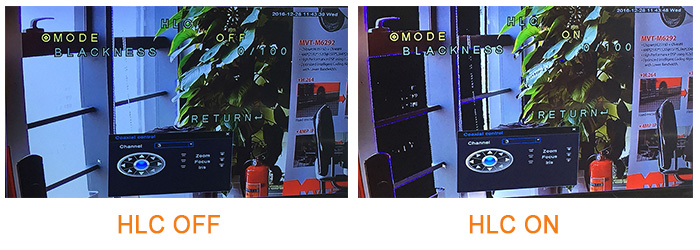

HLC:If turn on HLC, it can hide the places with strong light. You can compare the following pictures when it’s on and off. The window with strong light are covered when HLC is on.
Any more questions about the UTC function,please feel free to contact us.
Following settings of AHD cameras can be realized thru UTC function:
Here we emphatically introduces the function 9 "Privacy Mask" and function 10 "HLC".

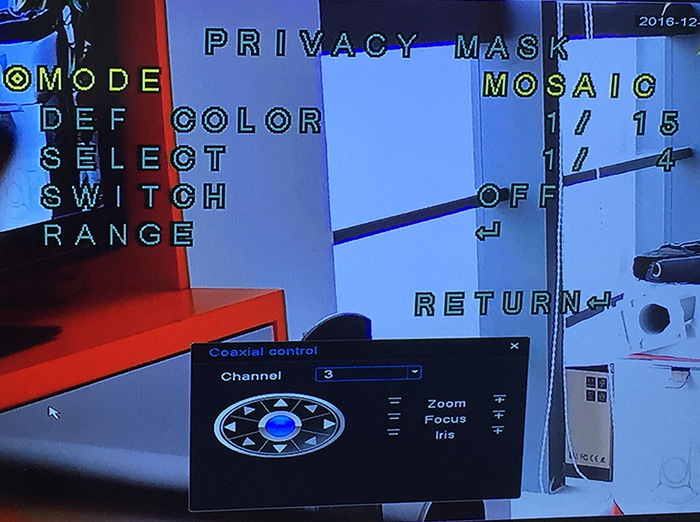

PRIVACY MASK: can hide the area you don’t want to be seen
Mode: we choose the hide by mosaic.
Range: can set the area you want to hide.

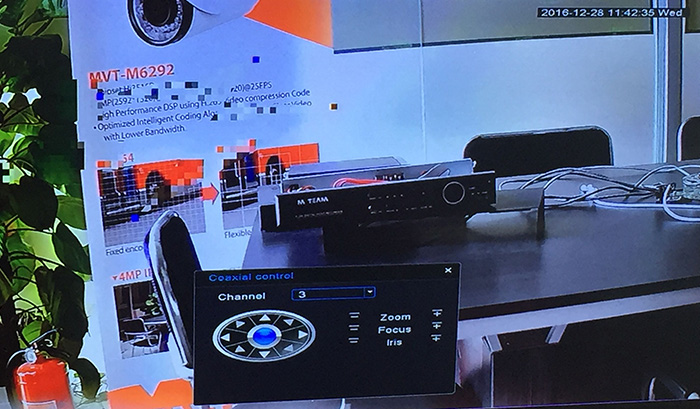

On the poster, part of the letters we set to be with mosaic.
Mode: we choose the hide by mosaic.
Range: can set the area you want to hide.
On the poster, part of the letters we set to be with mosaic.
HLC:If turn on HLC, it can hide the places with strong light. You can compare the following pictures when it’s on and off. The window with strong light are covered when HLC is on.
Any more questions about the UTC function,please feel free to contact us.
