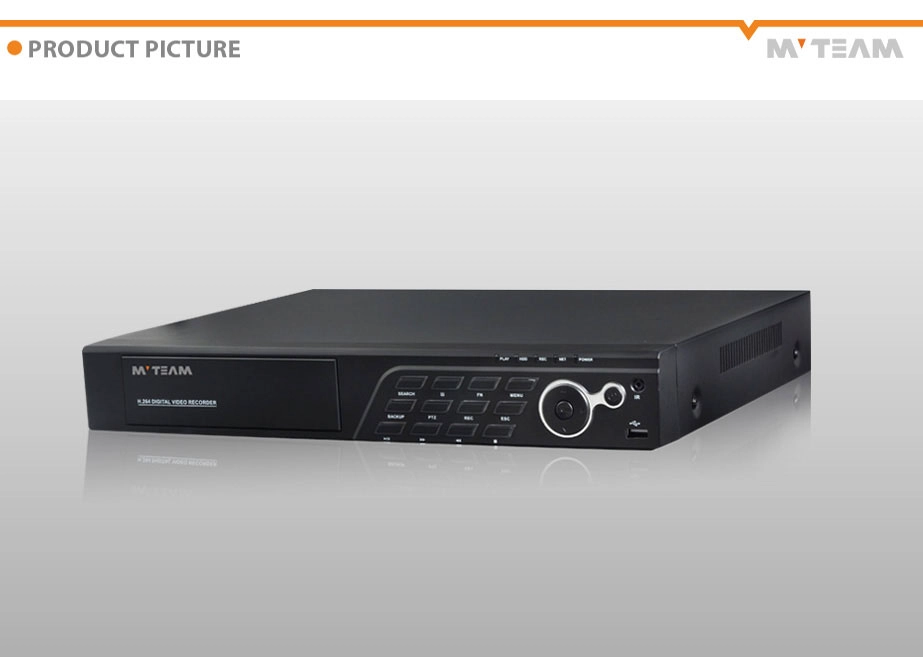

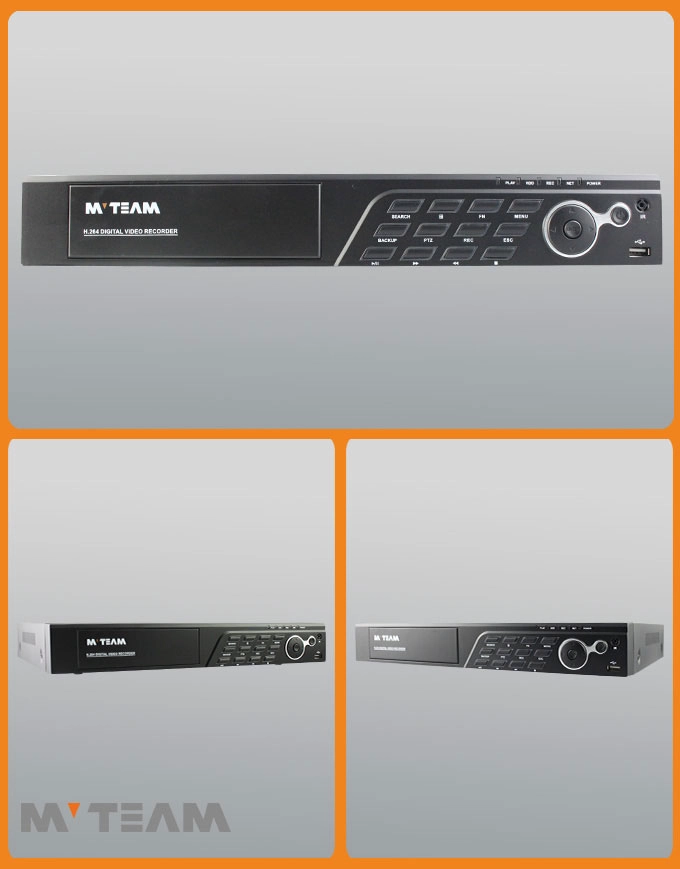

Hybrid DVR Wholesale 16CH 1080N CCTV DVR Recorder(6516H80H)
- Model:6516H80H

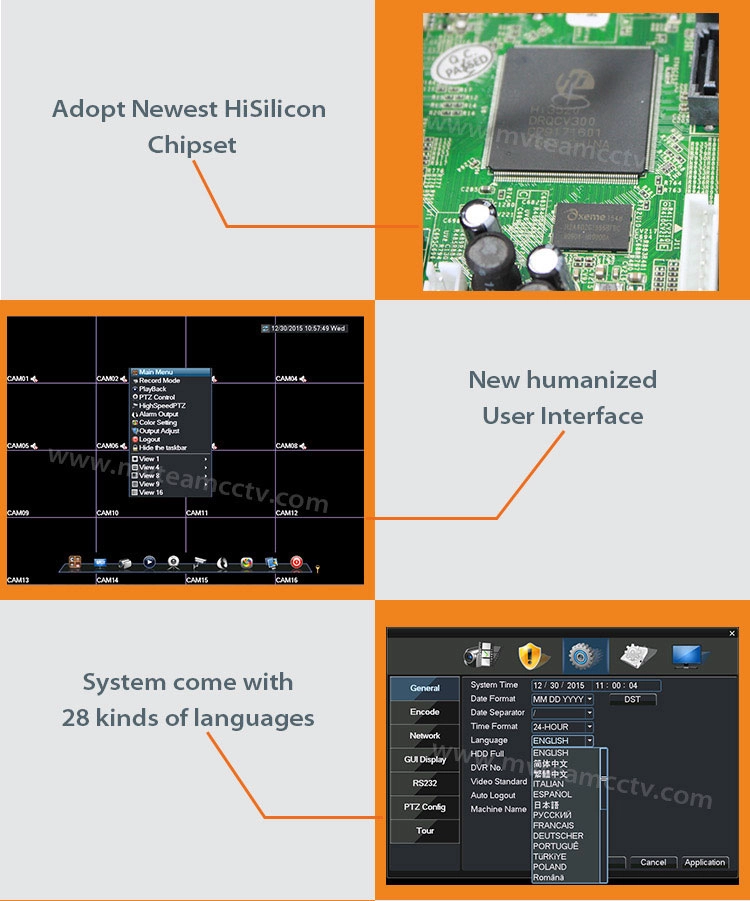

- Chipset:HI3521A
- Channel：16CH; Compression：H.264
- Resolution:16CH 1080N(960*1080)
- Audio:8ch input,1ch output
- Alarm:4ch input,1ch output
- SATA: 2pcs; USB Port: high speed 2 pcs
- languages:28 kinds

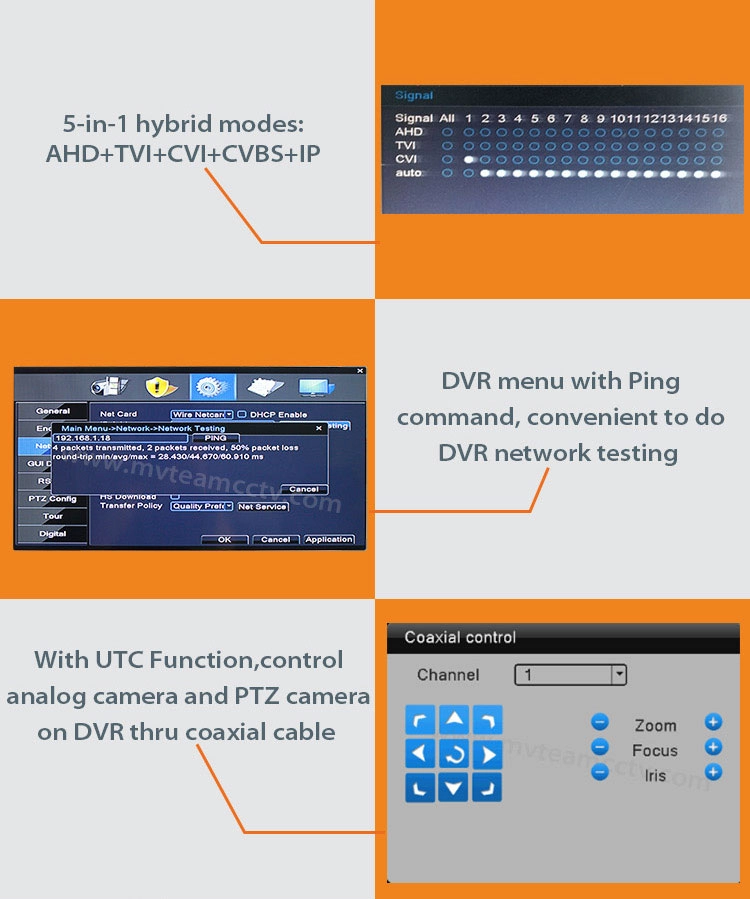

- Hybrid:AHD,TVI,CVI,CVBS,IP
Hybrid DVR Wholesale 16CH 1080N CCTV DVR Recorder(6516H80H)
Optional different modes:
1.AHD,TVI,CVI,CVBS:16CH 1080N@15fps recording,4CH 1080N playback;
2.AHD,TVI,CVI,CVBS:16CH 1080N@12fps recording,16CH 1080N playback;
3.AHD,TVI,CVI,CVBS:12CH 1080N@15fps recording+4CH 1080P@25fps IP recording,2CH 1080P playback;
4.AHD,TVI,CVI,CVBS:8CH 1080N@15fps Analog + 8CH 1080P@25fps IP recording,2CH 1080P@25fps playback
5.AHD,TVI,CVI,CVBS:4CH 1080N@15fps Analog+12CH 1080P@25fps IP recording,2CH 1080P@25fps playback
6.16CH 960P@25fps IP recording,4CH 960P@25fps playback
7.Audio: 8ch input, 1ch output
8.Alarm:4ch input,1ch output
| Model | 6516H80H | |
| Compression | H.264 Standard compression | |
| Operation | Embedded Linux | |
| Image coding-control | Image edit adjustable,both changable and fix stream optional | |
| Dual stream | Can be set up in each channel | |
| Monitor image quality | 16*1080N(AHD,TVI,CVI,CVBS), 16*960P/960P IP recording | |
| Image dynamic detection | Multiple detection areas in each channel | |
| Video framerate | 1080N 15FPS/CH AHD; 1080P/960P 25FPS NVR | |
| Image playback quality | AHD,TVI,CVI,CVBS: 1080N ; NVR:1080P/960P@25FPS | |
| Video mode | Support manual, automatic, dynamic monitoring, alarm trigger video mode | |
| Backup mode | U disk, USB portable disk, USB burn, Network storage and backup | |
| Operate mode | Mouse, remote controller, front panel | |
| login locally | without password | |
| Save recording | local hard disk and network | |
| External interface | Video input | 1080N 15FPS AHD,TVI,CVI,CVBS;1080P/960P@25FPS NVR |
| Audio input | 8*RCA | |
| Network interface | 10M/100M base-T Ethernet (RJ-45) | |
| USB connect port | 2*USB 2.0 | |
| RS485 | RS485*1 | |
| Alarm input | 4CH | |
| Alarm output | 1CH | |
| Internal HDD | 2 SATA HDD port | |
| Maximum capacity | Maximum 4TB each SATA | |
| Cell phone monitoring | Support Window Mobile, iPhone,iPad, Android | |
| Power | 12V/3A | |
| DVR size | 380mm×295mm×55mm | |
| Weight | <3.5kg(without HDD) | |
More dvrs:
1)Does the dvr come with hard disk?
The DVRs don’t come with hard disk. If you need buy hard disk from us,we could install hard disk into DVR.

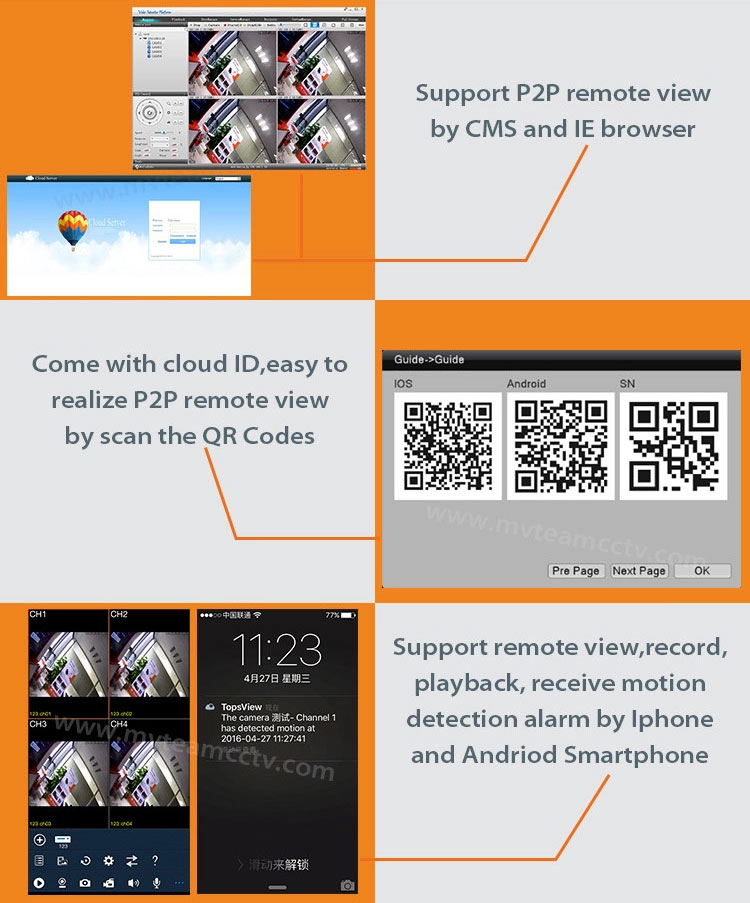

2)Does the DVR support P2P?
Yes,the dvr come with cloud id,support P2P remote view on mobile phone and computer.
3)what's the mobile phone view app of the dvr?
The mobile phone app is "Topsview"
4)What's the resolution of your dvrs?
720P, 1080N (1080H), 1080P optional
The DVRs don’t come with hard disk. If you need buy hard disk from us,we could install hard disk into DVR.
2)Does the DVR support P2P?
Yes,the dvr come with cloud id,support P2P remote view on mobile phone and computer.
3)what's the mobile phone view app of the dvr?
The mobile phone app is "Topsview"
4)What's the resolution of your dvrs?
720P, 1080N (1080H), 1080P optional
5)Does your NVR support ONVIF IP camera ?
We suggest you make a test sample,NVR support ONVIF,but IP camera and NVR from different factory are not compatible.
We suggest you make a test sample,NVR support ONVIF,but IP camera and NVR from different factory are not compatible.
More questions about DVRs,please check at:Technical Article for DVR/NVR
