How to View IP Camera via NVR?

  • Author:Kelly Liang
  • Source:www.mvteamcctv.com
  • Release on :2016-02-20
For some people new in CCTV industry, maybe know how to connect camera and DVR by coaxial cable, but not familiar with how to connect IP Camera and NVR.

For the newbie, we are glad to guide you about it.
IP Camera and NVR connection is a little complex than analog, but we believe you will be clear after reading below steps. There are mainly 2 operation steps:

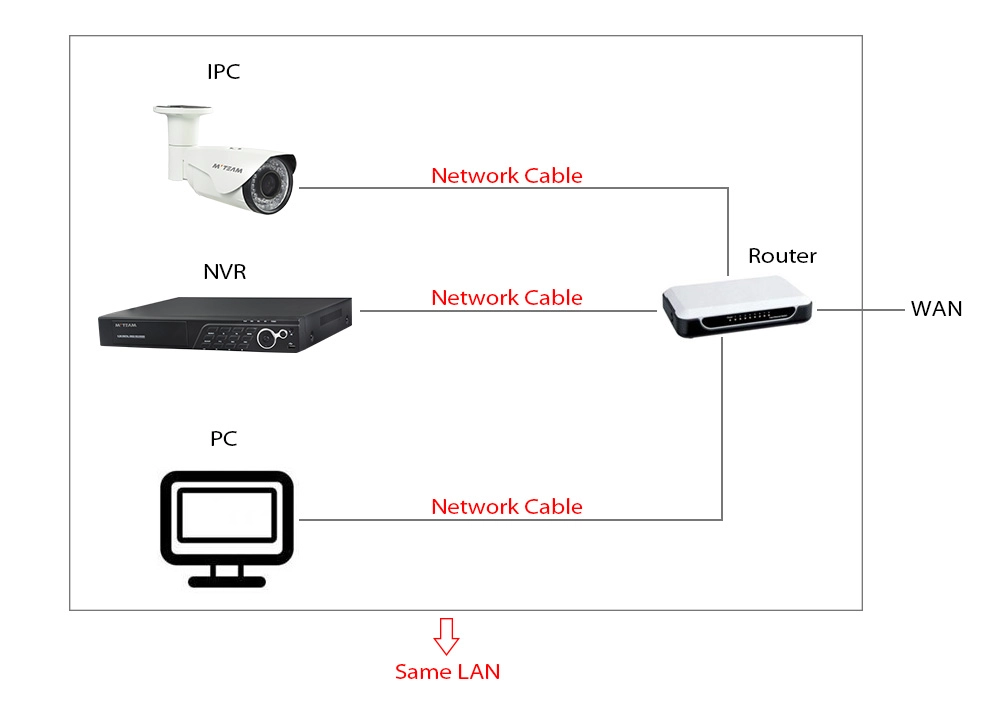

Step 1: connect NVR,IPC Camera and switch by network cables
IPC NVR connection diagram

Step 2: Search and add IP Cameras by NVR

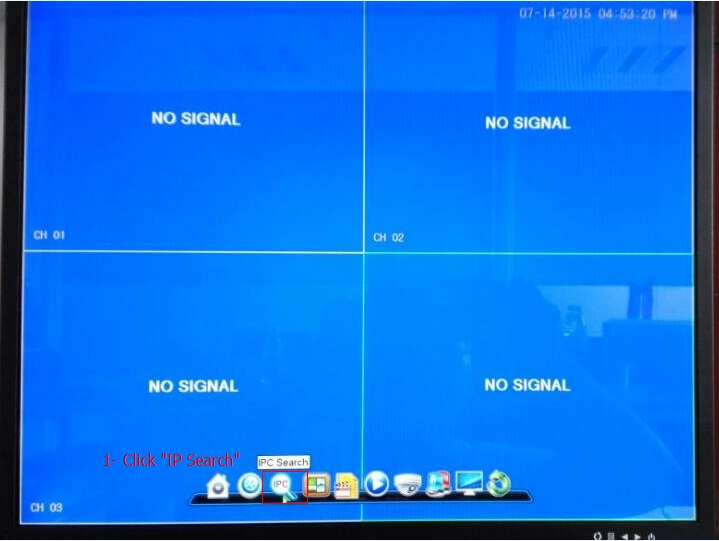

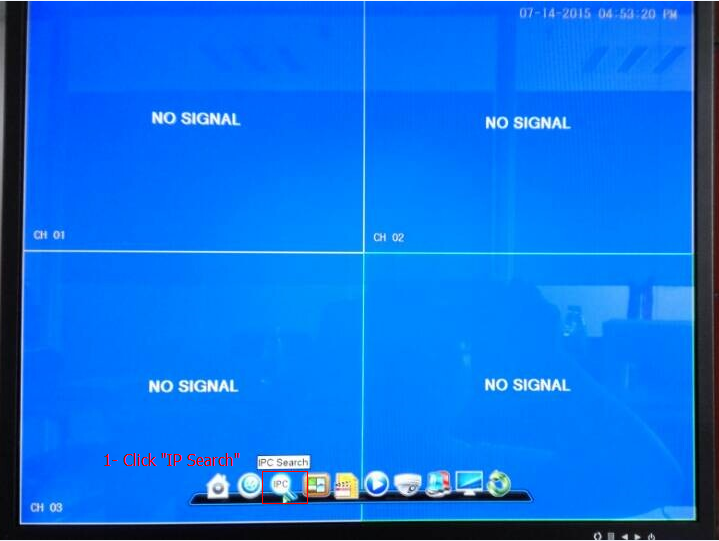

1) In NVR’s main menu (follow picture 1), click “IP Search”, then will pop up follow picture 2.
SEARCH IPC

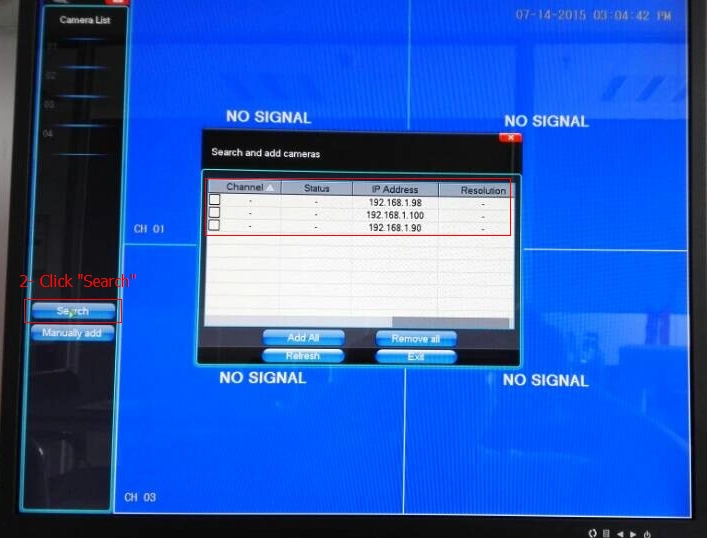

2) Click “Search”, then will appear IPC’s IP address in the right red part “search and add camera”.
START SEARCH

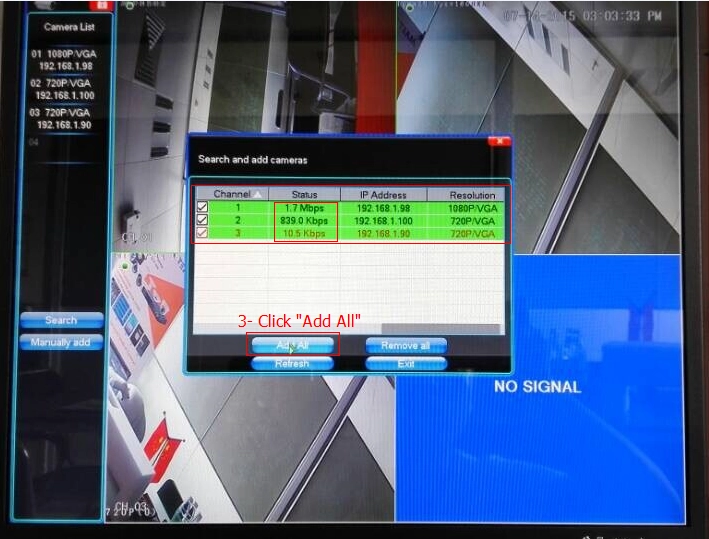

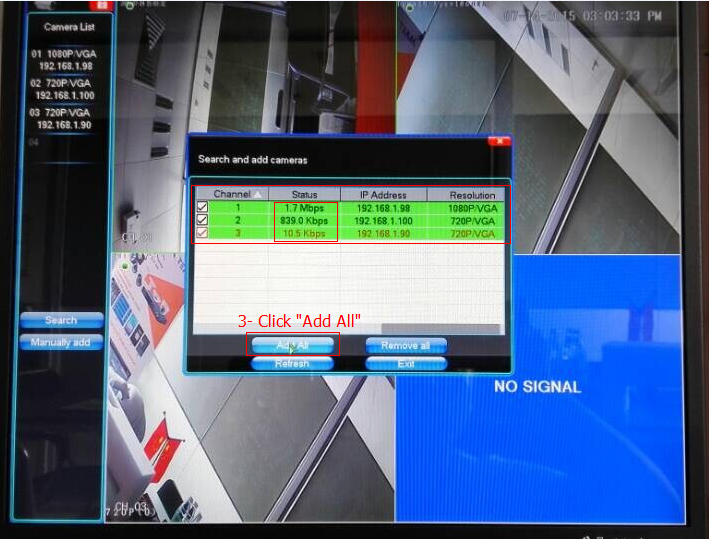

3) Click “Add All”, IP camera will added successfully and you can see image as below:
ADD IP CAMERA TO NVR
